Kit number
A9510323
Kit number
A9510324
Kit number
A9510325
Note:
•
The Mobile Phone Holder Kit must not be fitted to a motorcycle when a Tank Bag Kit is fitted.
Thank you for choosing this Triumph genuine accessory kit. This accessory kit is the product of Triumph's
use of proven engineering, exhaustive testing, and continuous striving for superior reliability, safety and
performance.
Completely read all of these instructions before commencing the installation of the accessory kit in order to
become thoroughly familiar with the kit's features and the installation process.
These instructions should be considered a permanent part of your accessory kit, and should remain with it
even if your accessory-equipped motorcycle is subsequently sold.
Publication part number 9900879 issue 1
© Triumph Designs Ltd. 2016
Accessory Fitting Instructions

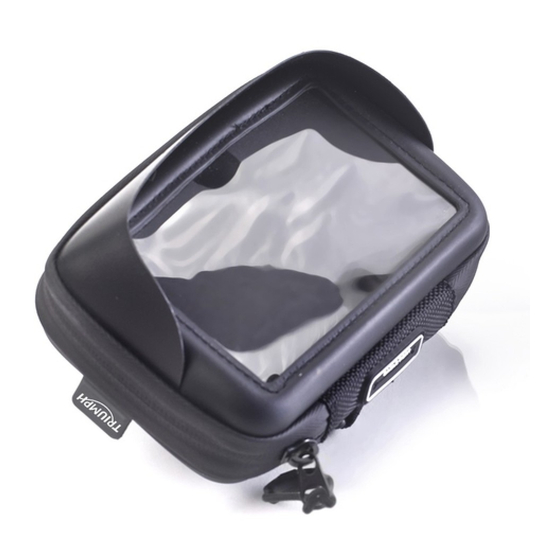

Mobile Phone Holder Kit. 140 mm x 90 mm
Models Affected
Thruxton 1200, Thruxton 1200 R
Mobile Phone Holder Kit. 160 mm x 100 mm
Models Affected
Thruxton 1200, Thruxton 1200 R
Mobile Phone Holder Kit. 70 mm x 130 mm
Models Affected
Thruxton 1200, Thruxton 1200 R
1 of 8
English
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Triumph A9510323
Summary of Contents for Triumph A9510323
- Page 1 The Mobile Phone Holder Kit must not be fitted to a motorcycle when a Tank Bag Kit is fitted. Thank you for choosing this Triumph genuine accessory kit. This accessory kit is the product of Triumph's use of proven engineering, exhaustive testing, and continuous striving for superior reliability, safety and performance.
- Page 2 Parts supplied Holder, mobile phone 1 off Screw, M6 x 16 mm 1 off Mounting, phone holder 1 off Nut, top yoke 1 off Stem 1 off Security strap 1 off Tapered nut 1 off Packing 1 off Screw, M6 x 40 mm 1 off 10.
- Page 3 The accessory kits and the models applicable are listed at the start of the instruction. They should not be fitted to any other Triumph model or to any other manufacturer’s motorcycle. Fitting an accessory kit to a Triumph model not listed, or to any other manufacturer’s motorcycle...
- Page 4 Loosely assemble the stem, tapered nut and Fit the phone holder mounting to the stem, as M6 x 40 mm screw, as shown below. shown and secure with the M6 x 16 mm screw. Do not fully tighten the screw at this stage. 1.
- Page 5 Align the notch on the phone holder with the Pull the plain end of the security strap through corresponding slot phone holder the D-ring until the strap is tight around the mounting and press the phone holder onto the phone holder stem. Fold the strap back around mounting until a "click"...
- Page 6 Fitting a Mobile Phone into the Phone Holder Locate the red release lever on the right hand underside of the phone holder. Press the release lever and lift the phone holder clear of Unzip the clear cover on the phone holder and the mounting.
- Page 7 Installing the Rain Cover Danger Slide the rain cover over the phone holder, as Do not use a mobile phone while you ride. Do not shown. text while you ride. Do not attempt to adjust any GPS device while you ride. Telephone calls, texting or any attempt to use your mobile device for a ny purpose will distract you, this will cause accidents that can seriously injury or kill riders, passengers,...
- Page 8 Only operate this Triumph motorcycle at high lead to loss of motorcycle control and an accident. speed in closed-course, on-road competition or on closed-course racetracks.
