Fitting Instructions:
Thunderbird
A9808081
Thank you for choosing this Triumph genuine accessory kit. This accessory kit is the product of Triumph's use of proven
engineering, exhaustive testing, and continuous striving for superior reliability, safety and performance.
Completely read all of these instructions before commencing the installation of the accessory kit in order to become
thoroughly familiar with the kit's features and the installation process.
These instructions should be considered a permanent part of your accessory kit, and should remain with it even if your
accessory equipped motorcycle is subsequently sold.
2
1

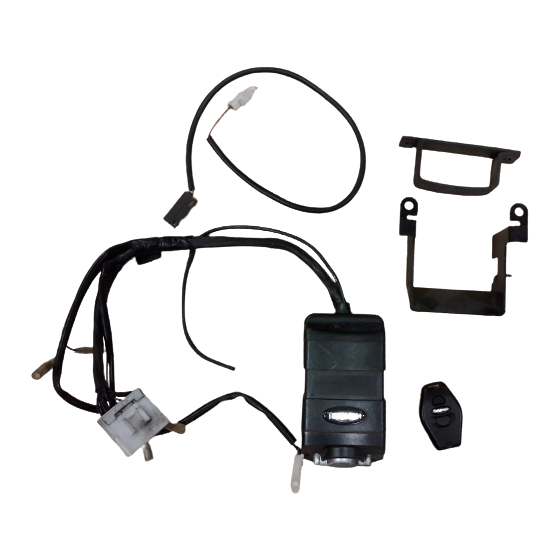

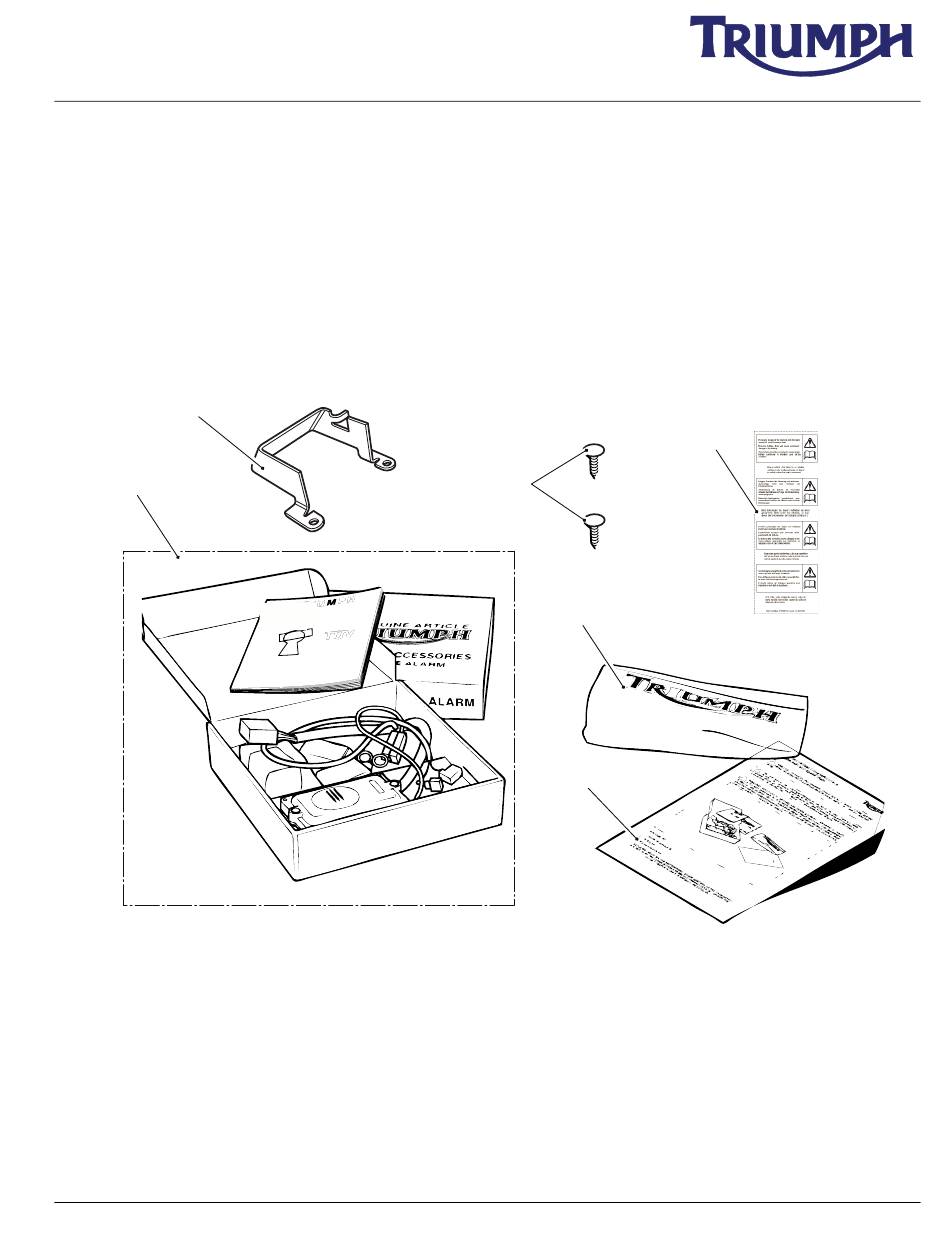

Parts Supplied:

1.
Alarm/Immobiliser kit
2.
Shield
3.
Fir-tree plugs
Publication part number A9900370 issue 1, ADC 7187
© Triumph Designs Ltd. 2009
3
5
6
1 off 4.
Battery drainage label
1 off 5.
Cleaning wipe
2 off 6.
Fitting instructions
1 of 8
4
1 off
1 off
1 off
