07 | Keysight | N1918A Power Analysis Manager and U2000 Series USB Power Sensors - Demo Guide
Instructions
In the Power Panel
1. Set the frequency
2. Acquire average power measurement
(See Figure 6)
3. Stop the power measurement
4. Enable and set the duty cycle to 25%
5. Start the measurement
(See Figure 7)

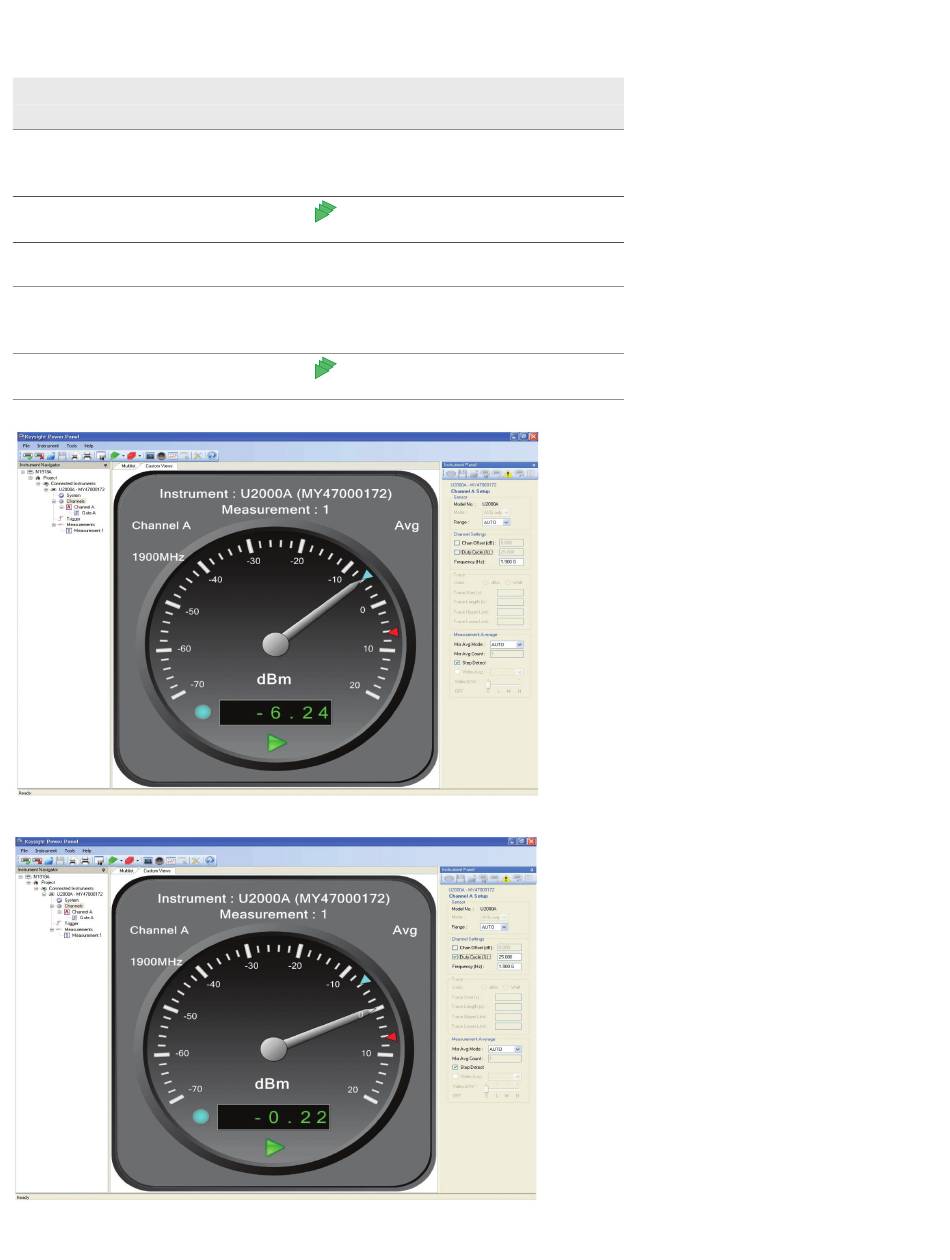

Figure 6. Average power measurement of pulse signal
Figure 7. Pulse power measurement with duty cycle value set to 25%
Channel
1. Click on the Instrument Navigator panel.
2. Set Frequency (Hz) to "1.900 G"
Properties panel.
Click on the Power Panel toolbar.
Click the Stop button on the Power Panel toolbar.
Channel
1. Click on the Instrument Navigator panel.
2. Select Duty Cycle checkbox.
3. Set the Duty Cycle (%) to "25.000".
Click on the Power Panel toolbar.
on the Instrument
