Prosonic T FMU30
Installation variants
Endress+Hauser
Заказывайте на сайте: www.tinnova.ru/endress_hauser/ || Эл. почта: info@tinnova.ru
Installation
A
1
C

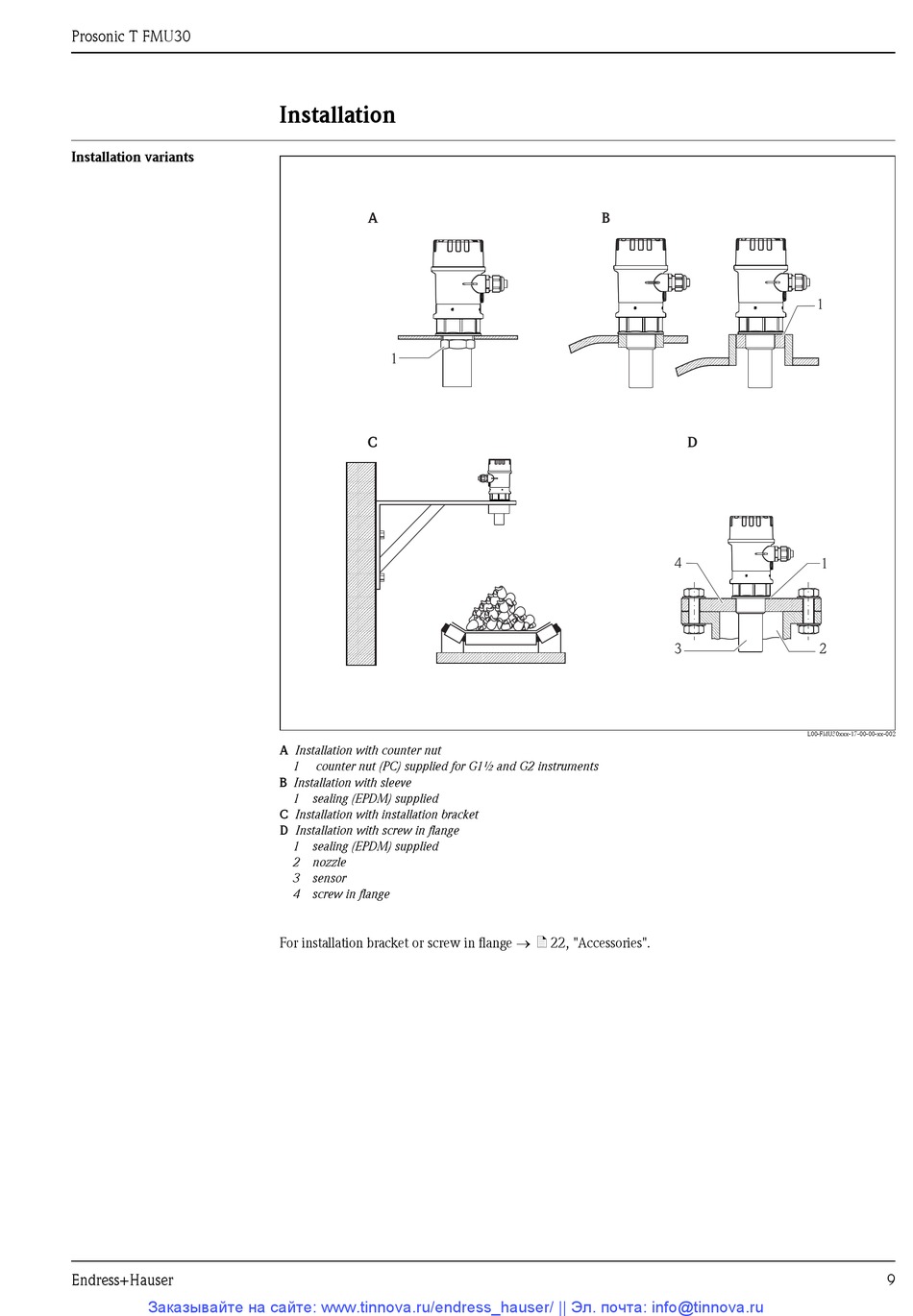

A Installation with counter nut
1
counter nut (PC) supplied for G1½ and G2 instruments
B Installation with sleeve
1 sealing (EPDM) supplied
C Installation with installation bracket
D Installation with screw in flange
1 sealing (EPDM) supplied
2 nozzle
3 sensor
4 screw in flange
For installation bracket or screw in flange ä 22, "Accessories".
B
D
4
3
1
1
2
L00-FMU30xxx-17-00-00-xx-002
9
