Design; dimensions
Weight
Housing design
Process connection
14
Заказывайте на сайте: www.tinnova.ru/endress_hauser/ || Эл. почта: info@tinnova.ru

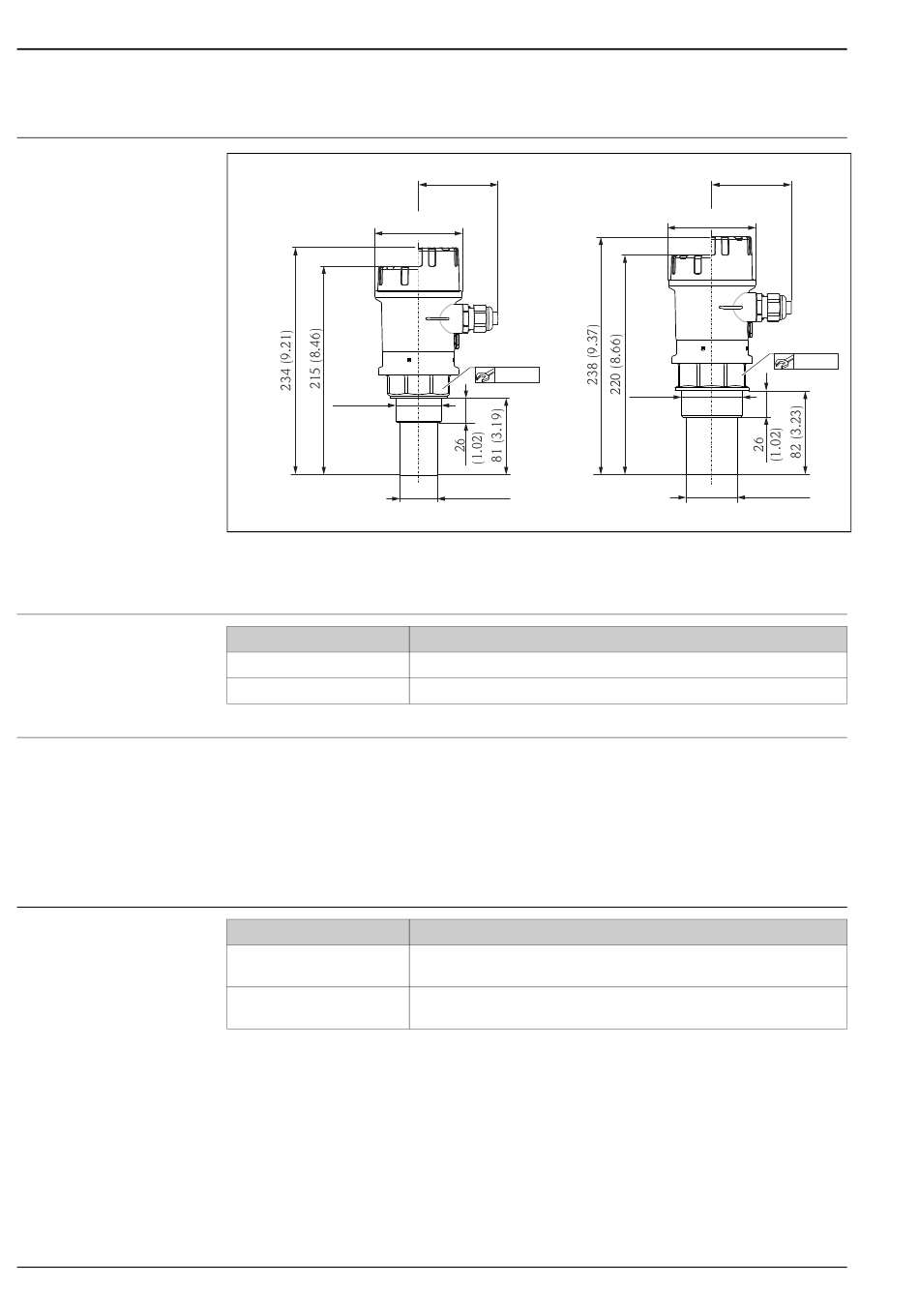

Mechanical construction
A
ø85 ( 3.35)
G 1½
"
NPT
1½
"
mm (in)
A Sensor 1½"
B Sensor 2"
Sensor
1½"
2"
Type of housing
F16 plastic housing
Cover
Plastic cover
• For version without on-site display (low, grey)
• For version with on-site display (high, transparent)
Sensor
1½"
2"
max. 76
(2.99)
ø
65 mm
ø39 (1.54)
Weight
approx. 0.75 kg (1.65 lbs)
approx. 0.8 kg (1.76 lbs)
Process connection
• Thread G 1½", PP
• Thread MNPT 1½" - 11.5
• Thread 2", PP
• Thread MNPT 2" - 11.5
Prosonic T FMU30
B
max. 76
(2.99)
ø85 ( 3.35)
ø
65 mm
G 2
"
NPT "
2
ø50 (1.97)
L00-FMU30xxx-06-00-00-xx-006
