Soyal AR727HV3 Quick Manual

SOYAL

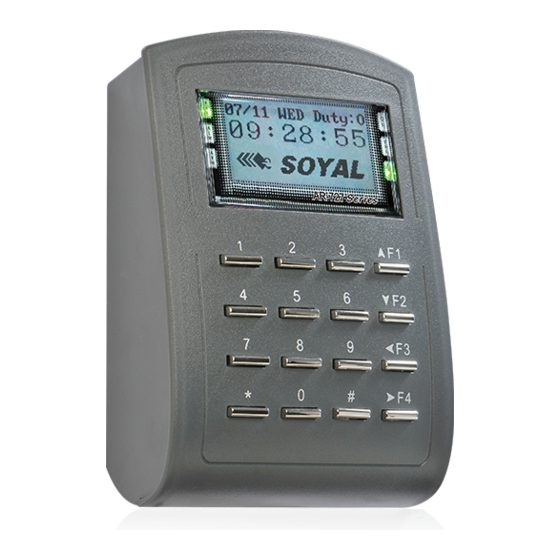

AR727HV3 is a 2-in-1 combo proximity reader with built-in 12 numeric keypad and LCD screen. LCD display
reader status and menu driven programmable settings. It can be a standalone single door controller or a
networking reader when connected to AR716 controller.
Multiple AR727HV3 can be connected together for direct interface to PC. In standalone mode, it can support up
to 1024 users, 1200 memory, 11 time zones and local anti-passback function using Wiegand reader. In
standalone mode, operator must keep a hardcopy of all user records for add/delete user in future. In networking
mode with AR716, it can provide 15,000 users – add/delete user is done through software.
RS232 PC serial COM
port Max 2m
Networking to PC or
AR716 controller
( Must share power
supply with AR 727Hv3.)
Orange
White
Grey
Red
Black
- +
12V
737U,
( Must share power supply
wiegand
with AR 727Hv3.)
reader
Tamper switch
Connect to existing alarm panel to
trigger alarm when there is a possible
intentional sabotage or vandalism.
Max
2m
AR727HV3 Proximity Controller Reader
AR801CM
RS 485
data bus
Max 300m
Red Black
+ -
12V
Green (-)
Blue (+)
Blue Blue
Green Green
Purple Pink
Brown Brown
Yellow
Yellow
Yellow
Orange
Red
Networking connection with AR716
AR801CM
Max
300m
Channel 1
Channel 2
AR716EV2

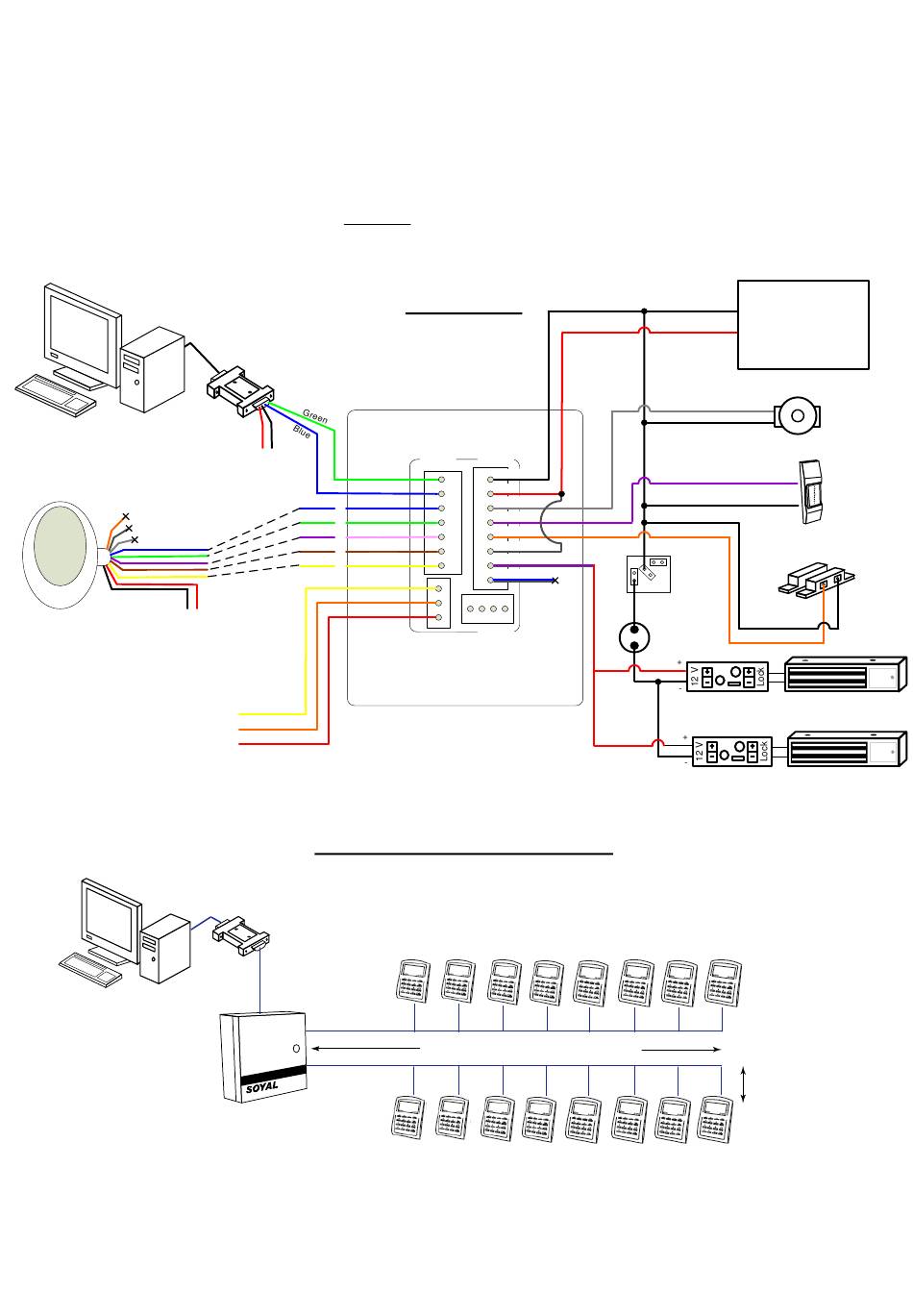

Wiring layout
AR727Hv3
CN1 CN3
Black
Red
Grey
Purple
Orange
White
Purple White
Blue White
CN2
CN4
RS485 CH1 and CH2 max 300m length
(ver 1)
Power supply
For single lock
Black - - use DC 12V, 1.25A
For double lock
Red +
- use DC 12V, 3A
+
-
N.C. (2)
(Optional)
Break
Glass
COM (1)
(Optional)
Key
Switch
SP1 Surge Protector
SP1 Surge Protector
Additional EM lock must be wired directly back
to reader. Do NOT loop between two EM lock.
Green & Blue wire
connect into CN4 for
T – branch
max 3m
(Optional)
Buzzer
N.O.
Push
Button
COM
(Optional)
Magnetic
Contact
networking
