SOYAL

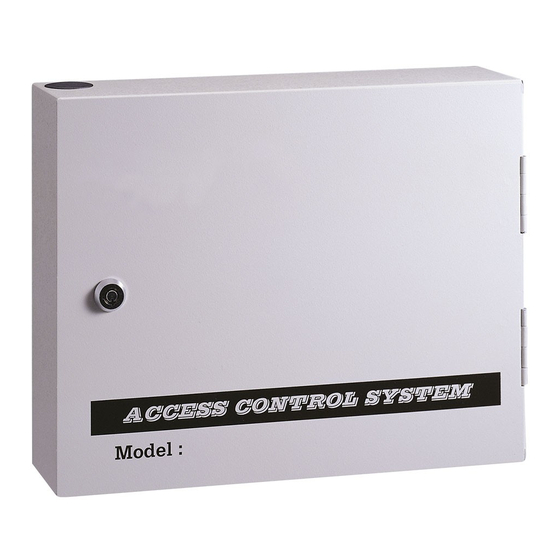

A.Controller
Wall Surface
Use Appropriate Fasteners
According to the width of two holes on the backside
of AR-716E to nail/screw the mounting nails/screws
on the wall, and then, hang AR-716E on the wall.
TCP/IP Module Configuration
A.
Dip-Switch
Description
DHCP Function
TCP/IP module supports
the auto-configuration of IP ,
Switch 1
gateway Address and
subnet mask; however,
must be sure the DHCP
server is available.
Switch 2 Serial Set up Mode
Programming
A.Restoring Factory Settings
1.EEPROM Restoring
Power Off → Take off the battery connector
from "BAT+" socket → J5 jumper shift to
"Clear" position for 15 seconds → Shift J5
back to "RUN"position → Plug in battery
connector → Re-apply the power → Done
2.IP Address Reset
a. Shift 2 dip-switch of TCP/IP module to "OFF"
b. Press IP reset button more than 5 seconds, and
then TCP/IP module will restore to factory default value
as follows:
IP Address
: 192.168.001.127
: 192.168.001.254
Gateway IP
: 255.255.255.000
Subnet Mask
Serial Port
: 9600,N,8,1
TCP Port
: 1621
Password
: None
AR-716E
ACC900
PC
C.
ON
1
2
B.
IP Resent Button
B.Setting up the IP Address
1.Get IP address by Net727 software
If the computer has no DHCP
Server built-in, user could get
default IP address and modify it as
their real IP address by Net727
software.
a.Get PC's IP configuration (Please
write down the IP Address)
(1) By Net727 version 2.08 (Local IP)
(2) WinXP/2000: Start →
a.
b.
(3) Win98: Start → Execute →
ON
b. Press "IP Reset" button to ensure
TCP/IP has restored to factory
1
2
default value.
PC
HUB
ACT
BUSY
LINK
TCP/IP Module
ACC900
Converter
RS-485
to RS232/USB
LED Name LED Color LED Function
Yellow
Media is connected.
Link
Off
Media is disconnected.
10Mbps Ethernet is
Green
connected.
ACT
Ethernet cable is
disconnected or has
Off
a short.
Serial Set up Mode is
Red
functioning.
Busy
Serial Set up Mode is
Off
not functioning.
Programs → Accessories →
Command Prompt →
C:\ipconfig
winipcfg
1
v070604
D.Keys
TCP/IP Module
ACT
BUSY
LINK
TCP/IP Module
Write
156.137.86.8
