GENERAL PUMP
DLTG12E
• All Aluminum poles
• High strength glass filled Nylon gun housing
• All brass gun valve
• Non-sticking dissimilar collet material
General Pump
is a member of
the Interpump Group
A member of the Interpump Group

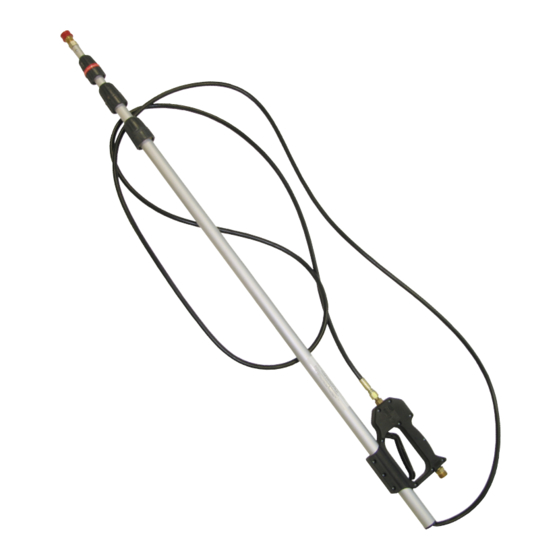

High-Pressure Extendable Wand
Ref 310100 Rev. B
08-18
Advertisement
Related Manuals for Interpump Group GENERAL PUMP DLTG12E
Summary of Contents for Interpump Group GENERAL PUMP DLTG12E
- Page 1 GENERAL PUMP A member of the Interpump Group DLTG12E • All Aluminum poles • High strength glass filled Nylon gun housing • All brass gun valve • Non-sticking dissimilar collet material High-Pressure Extendable Wand General Pump Ref 310100 Rev. B...
- Page 2 GENERAL PUMP A member of the Interpump Group Thank you for purchasing an extension wand from General Pump. With proper care your new extension wand will give you years of reliable service. Your safety is important to us. Please read and make sure you understand all of the safety warnings and precautions prior to using your extension wand.
-
Page 3: Specifications
GENERAL PUMP A member of the Interpump Group SPECIFICATIONS* Wand Model DLTG12E Maximum Volume 6.6 GPM Maximum Gun Pressure 2,600 PSI Maximum Fluid Temperature 120ºF Shipping Weight 5.6 lb Dimensions - Retracted 48.8” L x 6" W S TO P THE USER OF THIS ACCESSORY IS RESPONSIBLE FOR READING, UNDERSTANDING, AND FOLLOWING ALL WARNINGS AND PRECAUTIONS PRIOR TO OPERATION. - Page 4 GENERAL PUMP A member of the Interpump Group • NEVER use wand if damaged. • ALWAYS read, understand, and follow operation instructions. • ALWAYS make certain area is clear of obstructions or hazards. • ALWAYS maintain proper balance and control of extension wand.
- Page 5 GENERAL PUMP A member of the Interpump Group OPERATION INSTRUCTIONS Caution: Do not extend or retract your extension wand while spraying or while under pressure. Stop the equipment and relieve any pressure before making adjustments to the extension wand or changing nozzles.
-
Page 6: Exploded View And Parts List
GENERAL PUMP A member of the Interpump Group EXPLODED VIEW & PARTS LIST DLTG12E DG2600TS12 ITEM PART # DESCRIPTION ITEM PART # DESCRIPTION 2452028 BODY, VALVE DG2600TS12 GUN, TW, LOW PRESSURE 2550219 TUBE, INLET 2550220 TUBE, TW, 24 OD 2660362...
