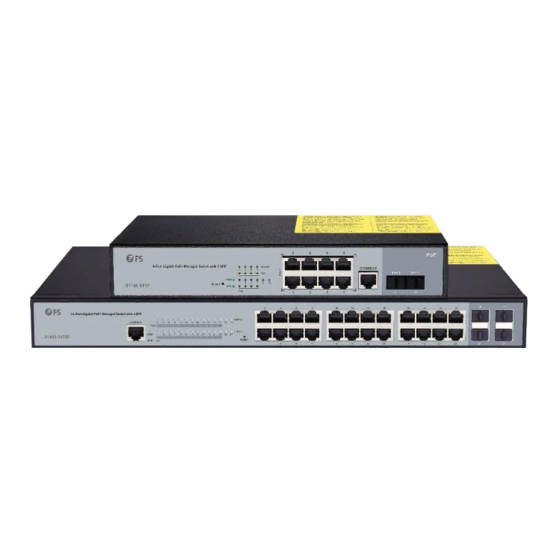

- Page 1 PoE+ Switch Reset and Recovery System Configuration Guide Models: S1150-8T2F...
-
Page 2: Table Of Contents
3.2 Download Configuration Software ................................1 3.3 Switch on and Use Login Software................................1 3.4 Restoration System......................................2 3.5 Switch to Factory Reset ....................................3 3.6 Recovery the Password of the Switch................................3 3.6.1 Restart the switch ..................................... 3 3.6.2 View the Configuration File ..................................4 www.fs.com... -
Page 3: Configuration Considerations
3.3 Switch on and Use Login Software #Energizing the switch, then open the installed login software, select the serial port of login mode, port through the device manager to determine. Baud rate :115200, Data bits: 8, Parity: None, Stop bits: 1. (Reference below) www.fs.com... -
Page 4: Restoration System
If it displays an unrecognized USB device, please download and install the corresponding driver. 3.4 Restoration System * Please use Ctrl + P to enter the monitor # interface when restarting the switch, then configure the switch IP address. monitor#ip address 192.168.1.1 255.255.255.0 *Set PC IP address www.fs.com... -
Page 5: Switch To Factory Reset
* Then start upgrading the system: run copy tftp flash Monitor#copy tftp flash //From ftp to flash Source file name[ ]? FS-S1400-24T4F-2.2.0C.bin //Firmware file name Remote-server ip address[ ]? 192.168.1.2 //TFTP Server IP address Destination file name[FS-S1400-24T4F-2.2.0C.bin]? //Switch.bin When prompted: TFTP: successfulfully sent ... -
Page 6: View The Configuration File
TGigaEthernet0/3 interface TGigaEthernet0/4 interface TGigaEthernet0/5 interface TGigaEthernet0/6 interface TGigaEthernet0/7 interface TGigaEthernet0/8 interface TGigaEthernet0/9 interface TGigaEthernet0/10 interface TGigaEthernet0/11 interface TGigaEthernet0/12 interface TGigaEthernet0/13 interface TGigaEthernet0/14 interface TGigaEthernet0/15 interface TGigaEthernet0/16 interface TGigaEthernet0/17 interface TGigaEthernet0/18 interface TGigaEthernet0/19 interface TGigaEthernet0/20 interface TGigaEthernet0/21 interface TGigaEthernet0/22 www.fs.com... - Page 7 //restart Do you want to reboot the Switch(y/n)?y Please wait... System Bootstrap, Version 0.4.5, Serial No:CG1908020295N0026 Copyright (c) 2018 by FS.COM All Rights Reserved FS S5900-24S4T2Q Current time: 1970-1-1 0:00:00 SDRAM Fast Test.......PASS! Flash Fast Test.......PASS! RTC Test........PASS! Loading flash:/Switch.bin..
- Page 8 63296 symbol OK Loading startup-config ... SUCCESS:Empty Configuration. User Access Verification //input the username and password “admin” in default Username: admin Password: Welcome to FS S5900-24S4T2Q Ethernet Switch Switch>enable Switch#show running-config Building configuration... Current configuration: !version 2.2.0D build 66315...
- Page 9 After uploading the configuration file to the switch with the TFTP / FTP software, then load the configuration file with following command and restart the device: Switch#config Switch_config#boot system flash startup-config Switch_config#exit Switch#reboot PS. Use the following two commands to view the configuration information of the switch: monitor#more startup-config / monitor#show configuration www.fs.com...
- Page 10 POE+ SERIES SWITCH RESET AND RECOVERY SYSTEM CONFIGURATION GUIDE www.fs.com...
