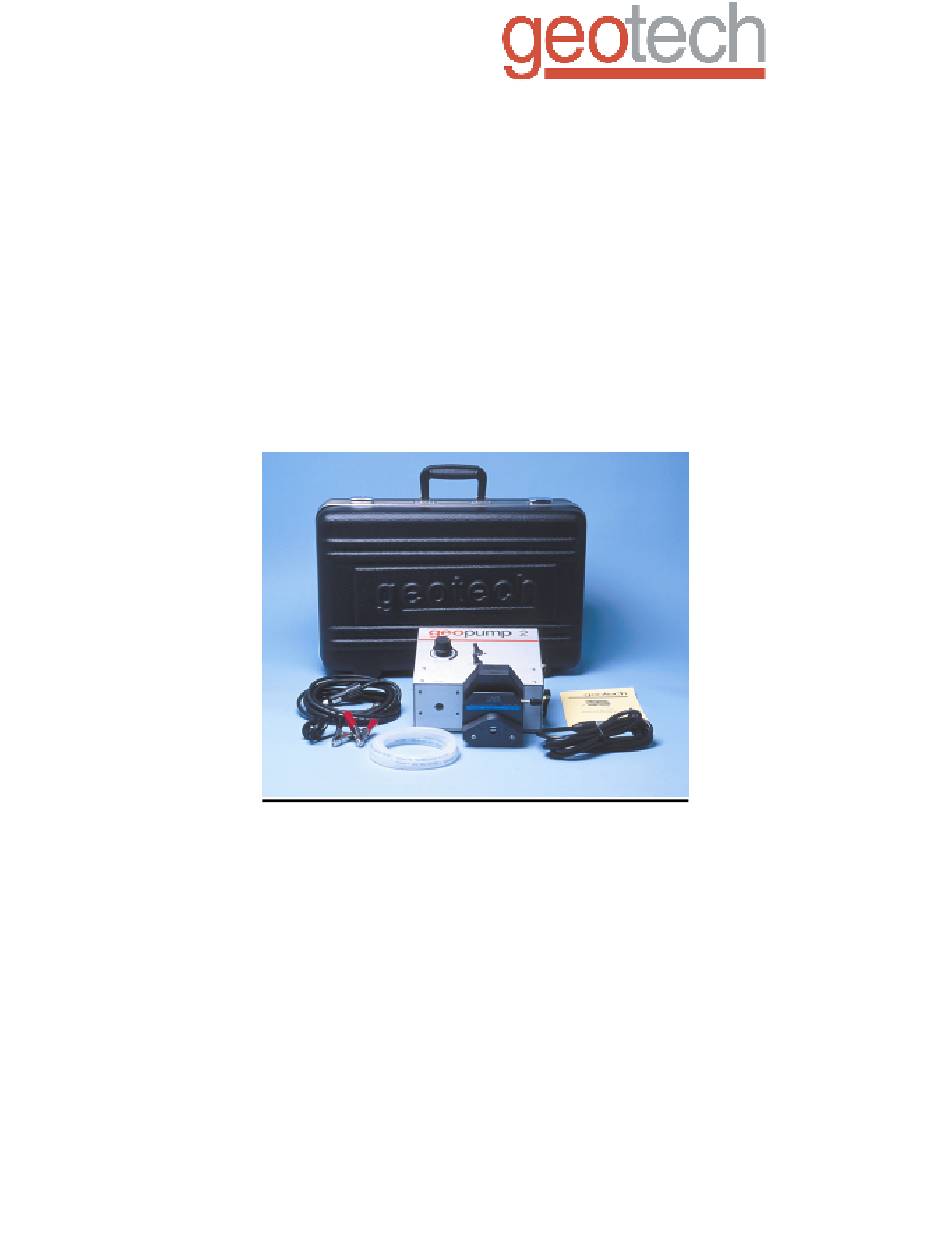

- Page 1 Geopump Peristaltic Pump Installation and Operation Manual Rev. 2 5/24/02 Part # 81350020...
-
Page 3: Table Of Contents
TABLE OF CONTENTS CHAPTER 1: SYSTEM DESCRIPTION............... 2 ..................2 UNCTION AND HEORY ..................2 YSTEM OMPONENTS CHAPTER 2: SYSTEM INSTALLATION............. 3 CHAPTER 3: SYSTEM OPERATION..............4 CHAPTER 4: SYSTEM MAINTENANCE............. 5 CHAPTER 5: SYSTEM TROUBLESHOOTING........... 6 CHAPTER 6: SYSTEM SPECIFICATIONS ............7 CHAPTER 7: SYSTEM SCHEMATIC.............. -
Page 4: Chapter 1: System Description
Chapter 1: System Description Function and Theory The Geotech Series I and II Peristaltic Pumps were designed for single and multi-stage pressure or vacuum pumping of liquids for field or laboratory use. Because they operate to a depth of 27 feet at sea level, they are ideally suited for sample removal from shallow wells and all surface water sources. -
Page 5: Chapter 2: System Installation
Chapter 2: System Installation Standard Pump Head Instructions Separate pump halves. Hold the pump head as shown, with the rollers in the 2, 6, and 10 o’clock positions and the rotor shaft facing down. Place the tubing around the rollers. Turn rotor counterclockwise until tubing has completely surrounded the rotor. -
Page 6: Chapter 3: System Operation
Chapter 3: System Operation The pump kit arrives packed in the hard shelled peristaltic pump carry case with the pump head properly attached to the pump (purchased separately). See section on pump parts. To put into service: Remove the pump from the case, be sure pump is turned “OFF” (red, open circle) For AC/DC combination units, plug in the appropriate power cord into the outlet in the back of the pump &... -
Page 7: Chapter 4: System Maintenance
Power Cords: Always replace any kinked or damaged power cord. Units with hard-wired AC or DC power cords should be sent back to Geotech for proper repair (see pg. 12). However, replacement power cords are available for AD/DC combination units. -
Page 8: Chapter 5: System Troubleshooting
Problem: Pump head rollers are not moving Solution: Pump head is loose from the pump housing: tighten pump head screws to engage pump head to gear Possible internal damage - call Geotech for consultation. -
Page 9: Chapter 6: System Specifications
Chapter 6: System Specifications Operating range 27 feet at sea level Principle of Operation Mechanical peristalsis Dimensions 3.5 x 8 x 8 inches Power source Any external 12 VDC or 120 VAC Power cord 12 VDC adapter cord or standard AC power cord. -
Page 10: Chapter 7: System Schematic
Chapter 7: System Schematic... -
Page 11: Chapter 8: Replacement Parts List
Chapter 8: Replacement Parts List Parts Number Part Description 17500035 Adaptor, Cigarette to Clips 57500007 Assy, Power Cord, AC (AC/DC Unit) 57500008 Assy, Power Cord, DC (AC/DC Unit) 51350001 Assy, Gear Housing, Series I 51350002 Assy, Gear Housing, Series II 51350012 Assy, Housing, Bottom, PP 51350003... -
Page 12: The Warranty
For a period of one (1) year from date of first sale, product is warranted to be free from defects in materials and workmanship. Geotech agrees to repair or replace, at Geotech’s option, the portion proving defective, or at our option to refund the purchase price thereof. Geotech will have no... - Page 13 NOTES...
