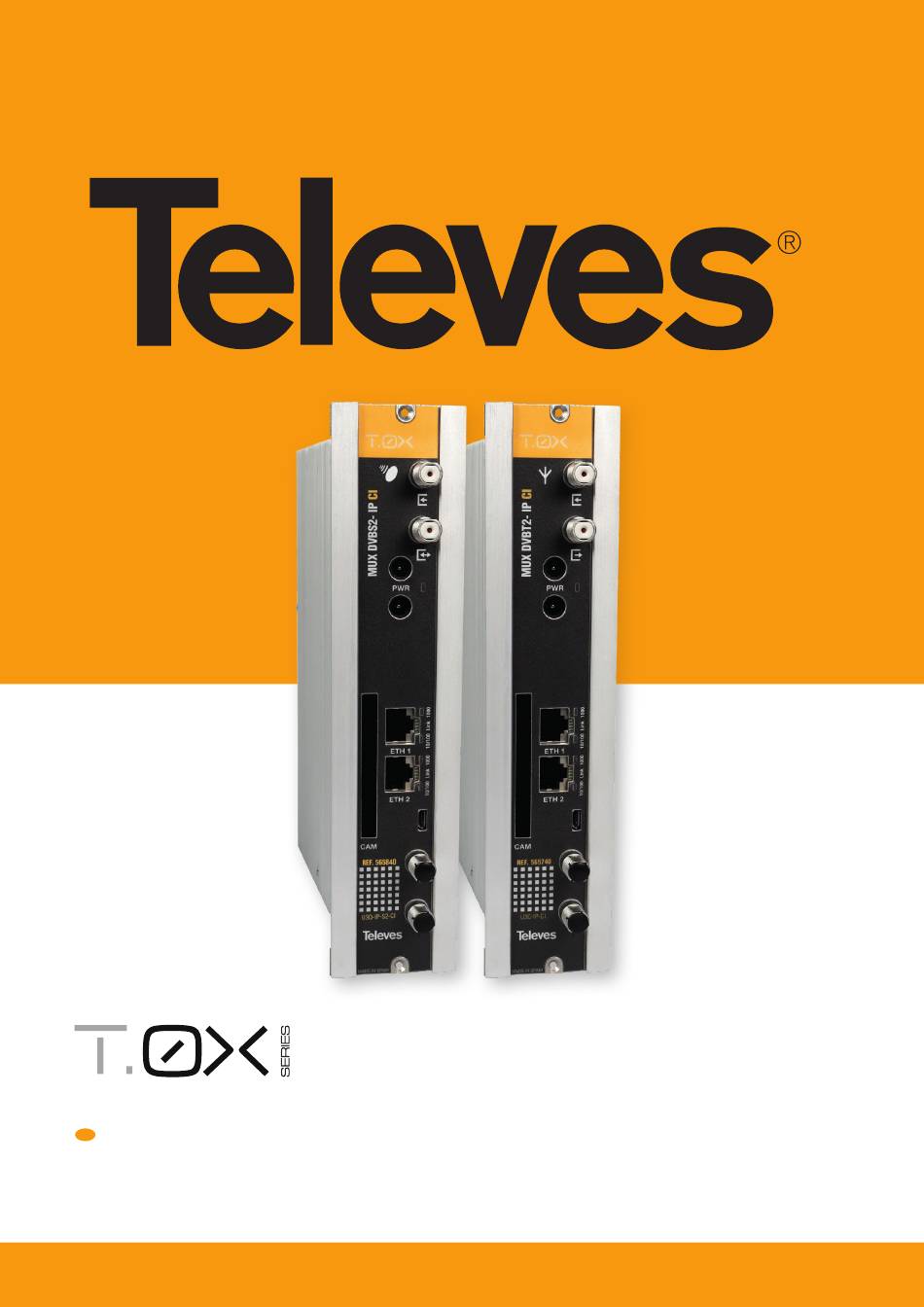

- Page 1 SAT Input, Refs: Televes Pro:Idiom - 565840 Televes - 565801 TERR Input, Refs: Televes Pro:Idiom - 565740 MUX DVBS2 - IP CI Televes - 565701 MUX DVBT2 - IP CI Instruction Manual www.televes.com...
-
Page 3: Table Of Contents
MUX DVBS2 - IP CI / MUX DVBT2 - IP CI Contents 1. Safety Instructions ........................... 2. Technical Features ........................... 3. Reference Description ........................... 4. Mounting ..............................4.1. Wall Mount ............................4.2. 19” Rack Mount ..........................5. Component Description ........................5.1. -
Page 5: Safety Instructions
Hereby, Televés S.A.U. declares that the radio equipment “MUX DVBS2 - IP CI / MUX DVBT2 - IP CI” is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://doc.televes.com. -
Page 6: Technical Features
MUX DVBS2 - IP CI / MUX DVBT2 - IP CI 1. Technical Features 1.1. MUX DVBS2 - IP ref. 565840, 565801, MUX DVBT2 - IP CI ref. 565740, 565701 Input frequency 950 - 2150 Through losses (av.) < 1.5 QPSK, 8PSK Symbol rate Mbaud... -
Page 7: Reference Description
1.4. Block diagram Ref. 565840, 565801 Demodul. A ENTRADA (S) Encriptación Interfaz Switch Multiplexor Encapsulado Demodul. B Pro: Idiom Ethernet (Ref.565840) Demodul. C Ref. 565740, 565701 Demodul. A Encriptación Demodul. B Interfaz ENTRADA Multiplexor Switch Encapsulado Pro: Idiom Ethernet Demodul. C (Ref.565740) Demodul. -
Page 8: Mounting
MUX DVBS2 - IP CI / MUX DVBT2 - IP CI 3. Mounting 3.1. Wall Mount 565840, 565801, 565740, 565701 CLACK! 5629 5071 5239 ETH 1 ETH 1 ETH 1 ETH 1 ETH 1 ETH 1 ETH 1 ETH 2 ETH 2 ETH 2 ETH 2... -
Page 9: Component Description
4. Component Description 4.1. MUX DVBS2-IP CI/ MUX DVBT2-IP CI ETH 1 ETH 1 ETH 2 ETH 2 Insert the card all the way into the CAM REF. 565840 REF. 565740 with the contacts to the left and to the U3Q-IP-S2-CI U3C-IP-CI front before connecting the power... -
Page 10: Instructions For Use
MUX DVBS2 - IP CI / MUX DVBT2 - IP CI 5. - Instruction for Use Connecting to the unit’s web control interface The unit’s IP must be known to access its control interface. The default IP address of the unit is printed in the rear label. Connect a PC directly to the module's ETH1 port with an Ethernet cable. - Page 11 Icon Description Open service in the input. Encrypted service in the input, configured at DCY and properly decrypted by the CAM module. Encrypted service in the input, configured at DCY and not properly decrypted by the CAM module. Encrypted service in the input and configured at ON. Decryption not configured in the CAM module.
- Page 12 MUX DVBS2 - IP CI / MUX DVBT2 - IP CI Ref 565740, 565701: The unit has four demodulators connected to a single signal input, with the unit always operating in loop mode. The parameters to be configured are: - Input preamplifier powering (0, 12, 24V) - Channel table or frequency mode selection - Input frequency or channel - Input bandwidth (1.7, 5, 6, 7 ,8 MHz)
- Page 13 Multiple services can be added at once by selecting one base IP address and one base port, such as address or port auto-incre- ment. At the time the service is selected, its bitrate and the encryption status at the input is indicated. Using , all parameters for each of the SPTS outputs can by edited: IP, port, and selected service.
- Page 14 MUX DVBS2 - IP CI / MUX DVBT2 - IP CI Network Settings Menu Each unit has two Ethernet RJ45 connectors, which can be used on a single network, the default setting, or on two separate net- works, one as a control and the other for video distribution. On this screen, users can enable the separation of these networks and configure the IP address, subnet mask, and default port link, as well as the DHCP mode, for each of them.
- Page 15 Headend Menu The Master mode can be configured under this screen and the unit can be identified physically with the flashing LED button on the front. If the Master mode is activated, the unit searches for other units connected to the network (ETH2) and presents a list of the modules it has found.
- Page 16 MUX DVBS2 - IP CI / MUX DVBT2 - IP CI A unit configured as the Master offers the possibility of ordering all headend services. This order will also be the one used when creating the m3u file and in the service list provided by the Pro:Centric server. Advanced Menu Reports From this screen, users can download report files on the selected unit to facilitate debugging in the event of an incident.
- Page 17 Advanced Menu Settings On this screen, users can upload and download headend config files to allow for the simple duplication of the configuration of a unit or a full headend. When configurations are imported, the number of modules selected must coincide with the number of modules in the imported file.
- Page 18 MUX DVBS2 - IP CI / MUX DVBT2 - IP CI Advanced Menu Password Change On this screen users can change their headend access password. When the password is changed, the master unit applies the change to all the units it is controlling (units with the same password). The password for only one of the connected units cannot be changed unless it is a unit with an authentication error.
-
Page 19: Application Examples
DVBS2-QAM HEXA 6. Application Examples Example 1: Interconnection via internal switch of the units. Non-master units must be configured with a single Ethernet (“Split Net Ports” to OFF). ETH 1 ETH 1 ETH 1 ETH 1 ETH 1 ETH 1 ETH 1 ETH 1 ETH 2... -
Page 20: Rack Mount Standards
MUX DVBS2 - IP CI / MUX DVBT2 - IP CI 7. Rack Mount Standards (max. 49 MUX CI T-0X - 7 subracks 5u. tall - 8.7”) 7.1. Installing Rack with Ventilation These ventilators will be placed on a plate bolted to the top of the rack, fig. -
Page 21: Enclosure Mounting Standards
Install at lowest 0,2 m height possible. height possible. VERTICAL 0,2 m DECLARACIÓN DE CONFORMIDAD DECLARATION OF CONFORMITY DECLARAÇÃO DE CONFORMIDADE DECLARATION DE CONFORMITE DICHIARAZIONE DI CONFORMITÀ DEKLARACJA ZGODNOŚCI KONFORMITÄTSERKLÄRUNG ΠΙΣΤΟΠΟΙΗΤΙΚΟ ΣΥΜΜΟΡΦΩΣΗΣ https://doc.televes.com FÖRSÄKRAN OM ÖVERENSSTÄMMELSE ДЕКЛАРАЦИЯ СООТВЕТСТВИЯ ةقباطملا نايب... - Page 22 MUX DVBS2 - IP CI / MUX DVBT2 - IP CI...
