Televes TOX Series User Manual

Twin a/d processor
Hide thumbs Also See for TOX Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Ref. 564901
User manual
Twin A/D PROCESSOR
EN
w w w . t e l e v e s . c o m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TOX Series and is the answer not in the manual?

Questions and answers

Žůrek Petr
February 12, 2025

Poptávám programátor televes ptc 5.0

0
1 comments:
Mr. Anderson
February 12, 2025

The Televes TOX Series module configuration can be done using the universal programmer (Ref. 7134) available on the Televes website or the TSuite software for PC. Links are provided at the end of the user guide.

This answer is automatically generated

0

Related Manuals for Televes TOX Series

Summary of Contents for Televes TOX Series

  • Page 1 Ref. 564901 User manual Twin A/D PROCESSOR w w w . t e l e v e s . c o m...

  • Page 3: Table Of Contents

    A/D Twin PROCESSOR Contents 1. Technical specifications ........................2. Reference description ......................... 3. Installation ............................3.1. Wall mount ........................... 3.2. 19” rack mount ........................... 4. Product description ..........................4.1. Introduction ..........................4.2. PROCESSOR A/D Twin ......................4.3. Power Supply Unit ........................4.4. Broadband amplifiers ......................4.5. Universal Programmer PCT 5.0 ....................5. Instructions for use ..........................5.1. Main Menu ..........................5.2. Extended Menu .

  • Page 5: Technical Specifications

    1. Technical specifications 1.1. TWIN A/D PROCESSOR ref. 564901 Input frequency (selec.) 46 - 862 IN/OUT Connectors type female “F” Input level (-59 a -29 dBm) dBµV 50 to 80* Input impedance Down-Converter Input line powering for preamps Analog 12 / 24 / OFF Frequency steps (<...
  • Page 6 TWIN A/D PROCESSOR 1.2. Broaband Amplifier Technical Specifications Frequency range 46 ··· 862 Connector type female “F” Gain 44 ± 2.5 Powering voltage Amplifier ref. 5575 Regulation margin Consumption at 24 V Output level (42 CH CENELEC) dBµV Test output attenuation Frequency range 47 ···...

  • Page 7: Reference Description

    2. Reference description Range Accessories 564901 TWIN A/D PROCESSOR T.0X 7234 Universal Programmer 5575 Broadband amplifier 44dB 120dBµV 5071 Wall support T03-T05-T.0X; Length=50 cm 451202 DTKom Amplifier (47 - 862 MHz) 5239 Wall support T03-T05-T.0X 12 Modules + PSU; Length= 56 cm 5559 Headend Remote Management CDC-IP T.0X 5301...

  • Page 8: Installation

    TWIN A/D PROCESSOR 3. Installation 3.1. Wall mount 564901 RF input 5629 5575 562901 CLAC! 5071 5239 PRGM PRGM PRGM RF output 4061 7234 REMARK: It is recommended to use both outputs of the PSU to balance consumption between them. For example, 4+3 r 3+4 modules.

  • Page 9: 19" Rack Mount

    3.2. 19” rack mount 5301 UPSU120 02340037001 02340037001 02340037001 02340037001 02340037001 02340037001 02340038001 02340038001...

  • Page 10: Product Description

    TWIN A/D PROCESSOR 4. Product description 4.1. Introduction The TWIN A/D PROCESSOR contains two processors, The input loop-through allows the input signal be herein known as module A and module B. Each available to a number of units interconnected. At one of them can be used independently either as the same time it allows to power a preamplifier a channel converter (output channel different of...

  • Page 11: Processor A/D Twin

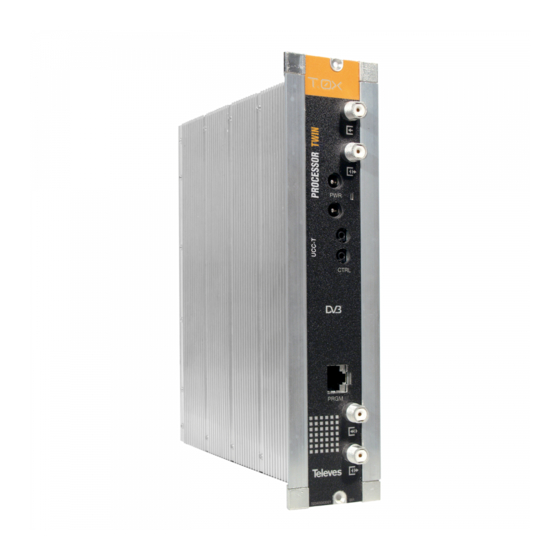

    4.2. PROCESSOR A/D Twin 1. RF Input (12V/24V/Off ) 2. RF Output (input loop-through) 3. RF Input (output loop-through) CTRL 4. RF Output 5. Power BUS connectors 6. Status LED 7. Control BUS connectors PRGM 8. Programmer / PC socket...

  • Page 12: Power Supply Unit

    TWIN A/D PROCESSOR 4.3. Power Supply Unit Connectors to power modules Masa Status LED 24V: OK 0V: Overload or shortcircuit UPSU120 Mains socket Remark: - The 5629 PSU can power up to 12 TWIN A/D PROCESSOR units. - The 562901 PSU can power up to 11 TWIN A/D PROCESSOR units. - It must be used both outputs whenever the current demanded by all units installed is greater than 4 A (maximum current per output)

  • Page 13: Broadband Amplifiers

    4.4. Broadband amplifiers OPTION “A” - 5575 OPTION “B” - 451202 TEST (-30dB) +10 dB OK - MATV 20 dB 20 dB 10 dB 10 dB 20 dB MATV OK - Return USO EXCLUSIVO EN INTERIOR C. Ret C. Ret FOR INDOOR USE ONLY ¡¡¡ATENCIÓN!!! NO ABRIR.

  • Page 14: Universal Programmer Pct 5.0

    TWIN A/D PROCESSOR 4.5. Universal Programmer PCT 5.0 The programmer features 1 display, 3 LEDs and 4 buttons: Programmer button function Press P C T 4 . 0 Button Function description U N I V E R mode S A L Enables parameter short...

  • Page 15: Instructions For Use

    5. - Instructions for use 5.1. Main Menu Remark 2: To change the menu language before starting the device configuration, you Insert the programmer into the corresponding must access the “Language” menu. To switch between A and B modules of the TWIN connector (“PRGM socket”) of the unit.
  • Page 16 TWIN A/D PROCESSOR Channel mode operation for digital signals b. Input Menu option. If the digital signal option has been selected, it is Concerning the output level, it follows the same displayed the number of the output channel as rules as above, and the display shows: Allows selection of the input channel, in either well as its central frequency.

  • Page 17: Extended Menu

    5.2. Extended Menu Choices are: AINPUT No voltage on the input port Ch: C21 By keeping pressed the button for more than 3 12 Vdc on the input port (471.250MHz) sec, the programmer displays a number of menus 24 Vdc on the input port less frequently used, which are called extended Save parameters as usually by pressing button menus.
  • Page 18 TWIN A/D PROCESSOR • Analog signals In the case of converter mode operation, use The options 8-MHz and 7-MHz are most selective buttons to choose how to select the versions of filters 8MHz and 7MHz respectively. The frequency step is 250 KHz only. input and output frequencies for: Specifically, these most selective filters may be In any of the extended menus 1, 2 and 3, the first...
  • Page 19 g. Version menu Positive values force the processor to increase The working temperature ranges displayed are the slightly the central frequency of internal filters; a following: higher value means a higher increase. This menu shows to the user the firmware versions •...

  • Page 20: Saving Parameters

    TWIN A/D PROCESSOR 6. - Device control 5.3. Saving parameters This version of the TWIN A/D PROCESSOR allows After setting up the unit by means of the two configuration and monitoring via a PC, both locally menus available, main and extended, all data will and remotely.
  • Page 21 AOUTPUT CONFIG )) Flow diagram of menus Ch: C21 Of:0 Addr CDC:123 (474.00 Mhz) Preamp: Level: AINPUT Ch: C21 Of:0 ACONFIG (474.00 Mhz) Amplifier long Chan. table: press CCIR N.Z.Ind ACONFIG InputBW:8MHz Slope: 0 ACONFIG Mode:Digital 125MHz Out: 125MHz AFINE ADJ Freq: AUTO Gain: AUTO Filter:AUTO...

  • Page 22: Example Of Application

    TWIN A/D PROCESSOR 7. Example of application Distribution of 20 channels 75 ohm 75 ohm MATV MATV 4061 4061 To distribution 5 x 564901 5 x 564901 5575 5559 5629 This figure depicts a headend configured for distributing 10x2 channels processed. It is necessary to take into account the constraint of 4 A per each one of the outputs of the PSU.

  • Page 23: Rackmount Standards

    8. 19” Rackmount standards (max. 56 units - 7 subracks with 5U height - 8’7”) 8.1. Installation of the rack with Estos ventiladores irán colocados en una bandeja atornillada en la parte superior del Rack, fig. 1 y 2. ventilation facilities De esta manera, los ventiladores harán circular en- tre los módulo el aire fresco que entra por la parte To aid in cooling for proper operation, especially in...
  • Page 24 TWIN A/D PROCESSOR 8.2. Installation of the rack without In order to provide adequate cooling, proper airflow must be established. As such, the following fans items must be observed: If fans are not available and the rack is installed in •...

  • Page 25: Standards For Mounting Wall Cabinets

    9. Standards for mounting wall cabinets IMPORTANT EXTRACTOR for forced ventilation. It must be located higher The figure on the right suggests than the top cabinet. how to arrange wall cabinets for an optimal ventilation, as well as additional actions to do it. Maximum environment temperature: 45ºC.
  • Page 26 TWIN A/D PROCESSOR IMPORTANT Horizontal placement of cabinets is strongly recommended by hanging them HORIZONTAL as near as possible to the floor . If the horizontal placement is impossible, 0,2 m then vertical placement is allowed. 0,2 m Respect the recommended minimum distances in the attached schemes.

  • Page 27: Channels Table

    A. Table of channels Table1 Table2 Table3 Table4 Table5 Table6 Table7 Table8 Table9 Table10 Table11 CCIR China/Taiwan America M/N Italia Francia Russia OIR Irlanda Suráfrica Polonia Australia 177.50 179.00 177.00 177.50 178.75 178.00 178.00 178.00 178.00 177.50 57.00 519.00 184.50 187.00 183.00 186.00...
  • Page 28 TWIN A/D PROCESSOR 690.00 706.00 647.00 698.00 706.00 698.00 698.00 698.00 698.00 648.50 273.00 729.00 698.00 714.00 653.00 706.00 714.00 706.00 706.00 706.00 706.00 655.50 279.00 735.00 706.00 722.00 659.00 714.00 722.00 714.00 714.00 714.00 714.00 662.50 285.00 741.00 714.00 730.00 665.00 722.00...
  • Page 29 10. Guarantee Televés S.A. offers a two year guarantee, beginning from the date of purchase for countries in the EU. For countries that are not part of the EU, the legal guarantee that is in force at the time of purchase is applied. Keep the purchase invoice to determine this date. During the guarantee period, Televés S.A. complies with the guarantee by repairing or substituting the faulty equipment. The harm produced by improper usage, wear and tear, manipulation by a third party, catastrophes or any other cause beyond the control of Televés S.A. is not included in the guarantee.
  • Page 30 TWIN A/D PROCESSOR...
  • Page 32 564901_001_EN...
