1/10 SCALE 4WD OFF-ROAD RACING CAR KIT

Advertisement

loading

Summary of Contents for Yokomo YZ-4 SF 2

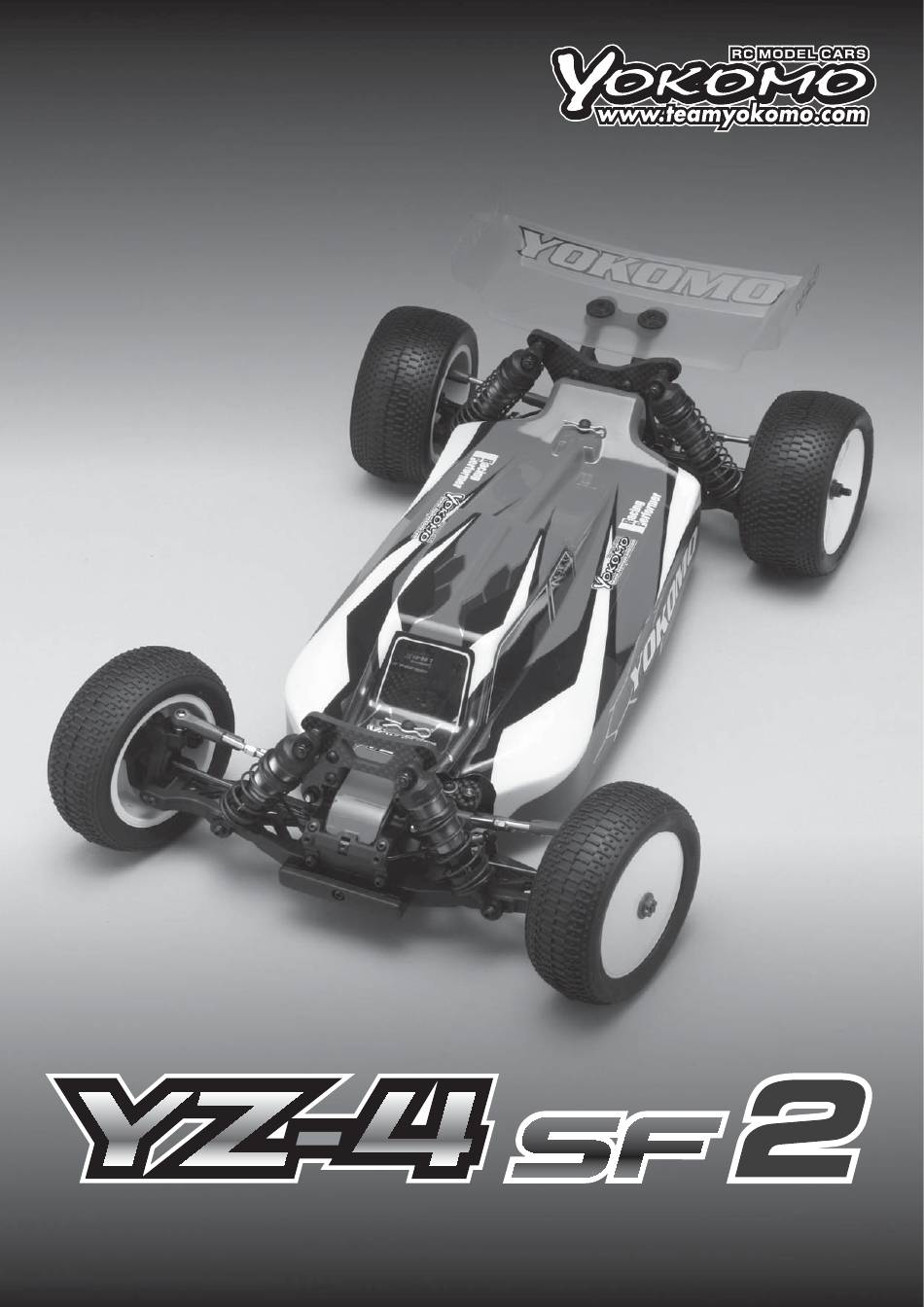

  • Page 1 1/10 SCALE 4WD OFF-ROAD RACING CAR KIT...
  • Page 2 走行してして下さい。   ①  スピー ドコン トローラのスイッチをOFFにします。   ②  バッテリーの接続を外します。   ③  送信機のスイッチをOFFにし、 アンテナを縮めます。   Thank you for purchasing this Yokomo product.  This high performance competition kit has been proudly manufactured  by Yokomo - World Champion R/C car manufacturer.  Proper assembly of this product will provide fun, safe enjoyment.  PRECAUTIONS FOR SAFE ENJOYMENT OF YOUR R/C CAR  For children under the age of 13, parental guidance is recommended when running.  ■ ASSEMBLY PRECAUTIONS ■  ■ PRECAUTIONS BEFORE RUNNING ■  ■ BATTERY USAGE ■  ●  Do not assemble around small children.  The  ●  Yokomo R/C cars are built for competition use, and  (Carefully read the instruction included with the batteries)   parts can be dangerous if accidentally  some models may exceed speeds of 40km per hour.   ●  When charging batteries, make sure that the  swallowed.  Practice common sense and run the car in open safe  surrounding area is void of anything highly flammable.  places, or R/C car tracks.  ●  Check the contents carefully before  Also avoid charging in high-temperature locations.  assembly.  Please contact Customer Support  ●  Do not run the car on public roads with high amounts ...
  • Page 3 組立てに必要な物  ACCESSORIES AND TOOLS NEEDED FOR KIT ASSEMBLY  走行のために別途お買い求め頂くもの  ADDITIONAL ITEMS REQUIRED FOR USE (NOT INCLUDED IN KIT)  2 チャンネルプロポ (1 サーボ、1 アンプ仕様 ) TWO CHANNEL R/C SURFACE RADIO SYSTEM AND ELECTRONIC SPEED CONTROL 走行用7.2Vバッテリーパック (ス トレー トパック/セパレー トタイプ) 7.2V BATTERY PACK (Straight Pack / Saddle Pack Type) 走行用バッテリー充電器 BATTERY CHARGER 走行用モーター MOTOR ボディ塗装用カラー BODY SPRAY PAINT 組み立ての際に別途用意する工具  ASSEMBLING TOOLS REQUIRED. (NOT INCLUDED IN KIT)  ヘックス ドライバー (2㎜、 1.5㎜) プラス ドライバー (小) HEX WRENCH SCREW DRIVER(SMALL) Y T −15W ワークスレンチ 1.5mmヘックス ドライバー ¥ 1200 Y T −D P 1W ワークスレンチ # 1プラス ドライバー ¥ 1200 Y...
  • Page 4  1. メインシャシーの組立て ZC-BH325 ZC-BH38 M3x25 ボタンヘッド M3x8 ボタンヘッド     Main Chassis Assembly BHS Screw BHS Screw ZC-S37 M3 ワッシャー Washer S4-118P2 +0.5 バッテリープレート このページで使用するパーツ Battery plate Parts used on this page バッテリーストッパーの向きは使用する S4-002SP2 バッテリーに合わせてお選びください。 バッテリーポスト S S4-002SP2 Select the direction of the battery  Battery post S バッテリーストッパー stopper according to the battery used. Battery stopper S4-002SP2 ポストスペーサー Post spacer S4-002SP2 アンテナマウント S4-002S2 Antenna mount ZC-N3L メインシャシー ×1 M3 ナイロンナット...
  • Page 5  2. サスマウント、シャシーブレースの取付け    Suspension Mount, Chassis Brace Installation S4-300RF1 リヤサスマウント・F/1W Rear Suspension Mount・F/1W ※向きに注意 Note position S4-300RS リヤサスマウントスペーサー Rear Suspension       Mount Spacer S4-003 シャシーブレース R S4-300FR Chassis Brace R フロントサスマウント・R Front Suspension                     Mount・R このページで使用するパーツ Parts used on this page 袋 #1 の内容 S4-003 Bag #1 Contents シャシーブレース F Chassis Brace F S4-003 シャシーブレース F ×1 Chassis Brace F ZC-F310 M3x10 サラキャップ FHS Screw S4-003 シャシーブレース R ×1 Chassis Brace R ZC-F38 S4-003FC...
  • Page 6  3. アッパーアームマウント、バルクヘッド、モーターマウントの取付け    Upper Arm Mount, Bulkhead, Motor Mount Installation FRONT ZC-BH312 M3x12 ボタンヘッド BHS Screw S4-002FR F バルクヘッド R Front Bulkhead R S4-002FL F バルクヘッド L Front Bulkhead L S4-302H2 バルクヘッドスペーサー Bulkhead Spacer ※向きに注意 Note position 袋 #2 の内容 ZC-F38 M3x8 サラキャップ Bag #2 Contents FHS Screw ZC-BH312 REAR M3x12 ボタンヘッド S4-304-2 BHS Screw S4-304CM2 モーターマウント S4-002FL S4-002FR センターマウント Motor Mount F バルクヘッド L ×1 F バルクヘッド R ×1 Center Mount Front Bulkhead L Front Bulkhead R S4-002RL...
  • Page 7  4. ギヤデフの組み立て B2-503GM ZC-F28TPH   Gear Diff Assembly ギヤ・大 M2x8 サラタッピングビス Gear・Large FH Tapping Screw S4-500GM このページで使用するパーツ ピン Parts used on this page S4-500GM シリコンオイル #5,000( ダート用 ) ×1 φ5 シム・大 Silicon oil ( Dirt ) S4-503R16 φ5 Sim・Large リングギヤ シリコンオイル #10,000  ×1 Ring Gear ( カーペット / 人工芝用 ) S4-500GM ピンを入れる時は、ピンの先端 Silicon oil ( Carpet/Astroturf ) φ5 O リング をドライブカップの穴に合せ、 φ5 O Ring ドライブカップをゆっくり回し...
  • Page 8 5. ギヤボックスの組み立て FRONT BB-105-2    Gear Box Assembly 5x10 ベアリング          Bearing S4-302F フロントギヤボックス A Front Gear Box A B2-010BC ZC-S50S リヤ ベアリングカラー・青  φ5×0.1 シム Rear Bearing Collar・Blue         Shim ZC-SS43LF M4x3 セットスクリュー ZC-S50S Set Screw φ5mm シム ×2 BB-135-2         Shim 平らな面 5x13 ベアリング Flat side          Bearing 計 0.5 ㎜ S4-010CD Total 0.5 ㎜ センタードライブカップ Center Drive Cup 袋...
  • Page 9 6. ギヤボックスの組み立て    Gear Box Assembly BB-1510 10x15 ベアリング          Bearing ZC-S100S φ10 ㎜シム ×3       Shim ZC-S100S φ10×0.1 シム 袋 #4 の内容       Shim Bag #4 Contents 計 0.7 ㎜ Total 0.7 ㎜ ZC-S100S φ10 ㎜シム ×2 ZC-S100S       Shim φ10×0.1 シム       Shim S4-302H S4-302H ハイトアダプター R0 ×2 ハイトアダプター R0 Height Adapter R0 Height Adapter R0 計...
  • Page 10 8. リヤギヤボックスの取付け    Rear  Gear Box Installation ZC-BH310 袋 #4 の内容 M3x10 ボタンヘッド Bag #4 Contents BHS Screw このページで使用するパーツ Parts used on this page S4-002BC ZC-BH310 バルクヘッドキャップ ×2 M3x10 ボタンヘッド Bulkhead Cap BHS Screw ZC-BH38 S4-002BC M3x8 ボタンヘッド ×4 ZC-BH38 バルクヘッドキャップ BHS Screw M3x8 ボタンヘッド Bulkhead Cap BHS Screw ZC-BH310 M3x10 ボタンヘッド ×2 六角レンチ(2.0mm) BHS Screw Allen Key ( 2.0mm ) 9. スリッパーの組み立て     Slipper Assmebly このページで使用するパーツ 切りかきを合わせる Parts used on this page Key onto the ...
  • Page 11 10. スリッパーの組み立て     Slipper Assmebly ZC-SS325L 0.5 〜 1 回転 M3x2.5 セットスクリュー 0.5 〜 1-turn (ネジロック加工済)   Set Screw ( Thread Lock ) 袋 #5 の内容 Bag #5 Contents このページで使用するパーツ 実走行でのスリッパー調整はゼロ発進時に Parts used on this page わずかに滑る程度が目安になります。 Adjust the slipper so that when the  car accelerates from a dead stop,  there is a small amount of slip. ZC-SS325L M3x2.5 セットスクリュー(ネジロック加工済)  ×1 BB-1510 Set Screw ( Thread Lock ) 10x15 ベアリング          Bearing スリッパーナットを固定するセットスクリューは、スリッパー シャフトの 3 面ある平らな部分で締め込みます。 ※ネジ部には締め込まないようご注意下さい。 The set screw used to secure the slipper nut is  tightened onto the flat area of the slipper shaft.
  • Page 12  12. ベルクランクの取付け       Bell Crank Installation Z2-206-8 S4-201CL2 ロッドエンドボール 8 ㎜ センターリンク Ball Stud 8 ㎜ Center Link ZC-N3P M3 ナット S4-200 ZC-A3620B 袋 #6 の内容 ベルクランク L 2mm アルミスペーサー・黒 Bellcrank L Bag #6 Contents 2mm Aluminum Spacer ・ Black ZC-A3610B 1mm アルミスペーサー・黒 S4-201CL2 1mm Aluminum Spacer ・ Black S4-200P2 センターリンク ×1 ベルクランクアームプレート Center Link ZC-A3630B Bellcrank Arm Plate 3mm アルミスペーサー・黒 3mm Aluminum Spacer ・ Black ※向きに注意...
  • Page 13 13. フロントショックタワーの取付け   Front Shock Tower Installation ZC-BH322 M3x22 ボタンヘッド S4-017-1P BHS Screw フロントショックタワー 袋 #7 の内容 Front Shock Tower Bag #7 Contents このページで使用するパーツ Parts used on this page ZC-S37 ワッシャー Washer ZC-N3P S4-017-1P M3P ナット フロントショックタワー ×1 PNut Front Shock Tower Z2-206-8 ロッドエンドボール 8 ㎜ Ball Stud 8 ㎜ S4-018S ショックタワースペーサー ×2 Shock Tower Spacer S4-018S ショックタワースペーサー Shock Tower Spacer S4-206C1 ZC-S37 オフセットカラー...
  • Page 14 15. フロントハブキャリアの組み立て Z2-206-6    Front Hub Carrier Assembly ロッドエンドボール 6mm Ball Stud 6mm ZC-BH38 M3x8 ボタンヘッド BHS Screw S4-01077 ユニバーサルドライブシャフト・フロント Universal Driveshaft・Front 袋 #8 の内容 Bag #8 Contents Z4-415A ステアリングプレート ZC-N3P Steering Plate M3 ナット S4-01077 ユニバーサルドライブシャフト・フロント ×2 Universal Driveshaft・Front Z4-415A ステアリングプレート ×2 BB-105-2 Steering plate 5x10 ベアリング BM-010BC          Bearing フロント ベアリングカラー・青 B4-011R Front Bearing Collar・Blue リヤホイルハブ ×2 Rear Wheel Hub Z4-415S ステアリングブロックL...
  • Page 15 16. リヤハブキャリアの組み立て     Rear Hub Carrier Assmebly ※ご注意ください※ スペーサーを 1.5mm 以下で使用する際 Z2-206-8 は、 ロッドエンドボール・6mm  ロッドエンドボール 8 ㎜ (Z2-206-6) をご使用ください。 Ball Stud 8 ㎜ When using spacers less than  S4-01065 袋 #9 の内容 ZC-A3620B 1.5mm, please use the Ball  ユニバーサルドライブシャフト・リヤ 2mm アルミスペーサー・黒 Bag #9 Contents Stud 6mm(Z2-206-6). Universal Driveshaft・Rear 2mm Aluminum Spacer ・ Black S4-415RL ZC-S550 リンクマウント φ5x0.5mm スペーサー Link Mount             Spacer S4-415R BB-105-2 Z2-010BCM リヤハブキャリア...
  • Page 16 17. フロント&リヤサスアームの取り付け     Front & Rear Suspension Arm Installation サスマウント FF 側に左のパーツを 使用した場合の角度参考例 5 種のブッシュの組み合わせにより、スキッド角、トレッド、ハイトの調整が行えます。 If use the left parts in front side,  Kickup, Tread, and Height are adjustable in combination of the above 5 bushes. the kickup angle variation will be  like below chart. +0.6 ㎜ サスマウント スキッド  Suspension mount +0.3 ㎜ Kickup 0 ㎜ −1° −0.3 ㎜ −0.5° −0.6 ㎜ 10° +0.5° −1.2 ㎜ −0.6 ㎜ 0 ㎜ +0.6 ㎜ +1.2 ㎜...
  • Page 17 18. リヤサスアームの取り付け     Rear Suspension Arm Installation 5 種のブッシュの組み合わせにより、トー角、スキッド角、トレッド、ハイトの調整が行えます。 Toe-angle, Skid-angle, Tread, and Height are adjustable in combination of the above 5 bushes. サスマウント RF 側に左のパーツを使用した場合の角度参考例 ブッシュの方向 If use the left parts in front side, the rear suspension angle variation will be like below chart. Bushing direction サスマウント RF サスマウント RR アンチスキッド  Suspension mount RF  Suspension mount RR  Anti-squat アンチスキッド  ±0.5/1° 1°  Anti-squat ハイト 1.5° ±0.3/0.6 ㎜ Height 2° 2.5° トー角 ±0.5/1° Toe-angle 3° トレッド ±0.3/0.6 ㎜  Width トー角 1° 1.5°...
  • Page 18 19. スタビライザーの取り付け     Sway Bar Installation ZC-SS33 ZC-206AH M3x3 セットスクリュー スタビボール Set Screw Anti-Roll bar ball Z2-412 ロッドエンド ZC-412SBK Ball End ストッパー Stopper ZC-SS312 M3x12 セットスクリュー スタビライザー Set Screw Sway Bar F/1.2 ㎜ R/1.3 ㎜ ( ダート◆Dirt) F/R1.8 ㎜ ( カーペット / 人工芝◇Carpet/Astroturf) S4-412B ZC-SS33 スタビボール M3x3 セットスクリュー Anti-Roll bar ball Set Screw 5 ㎜ Front/37 ㎜ Rear/34 ㎜...
  • Page 19 20. ターンバックルの組み立て FRONT     Turnbuckle Assembly ステアリングロッド ×2 (45 ㎜ターンバックル ) Steering Rod ×2 (45 ㎜ Turnbuckle) Z2-206DM2 22 ㎜ ロッドエンドツール Ball Cup Tool フロント アッパーロッド ×2 (48 ㎜ターンバックル ) Front Upper Rod ×2 (48 ㎜ Turnbuckle) 片方が逆ネジになっています。 One side is reverse threaded. 25.5 ㎜ Z2-206DM2 ロッドエンド ターンバックル Ball Cup Turnbuckle サーボロッド ×1 (39 ㎜ターンバックル ) Servo Rod ×1 (39 ㎜ Turnbuckle) 17.5 ㎜ BM-TBL ターンバックルレンチ...
  • Page 20 21. フロント&リヤショックの組み立て      Front & Rear Shock  Assembly 袋 #12 の内容 Bag #12 Contents ◆フロント用、リヤ用各 2 セットを作ります。 ◆ Assemble 2 front and 2 rear shocks. このページで使用するパーツ Parts used on this page YS-7AA O リング・ φ12 O Ring S4-S4S フロントショックボディ S4-S4S Front Shock Body フロントショックボディ ×2 Front Shock Body S4-S4L リヤショックボディ S4-S3X Rear Shock Body S4-S4L X30 X リング (クリア)   リヤショックボディ ×2 X Ring ( Clear ) S4-S4C Rear Shock Body X30 カラー・A ( 小 ) Z2-S3 Collar・A(Small)...
  • Page 21 22. フロント&リヤショックの組み立てのつづき      Front & Rear Shock  Assembly ◆フロント用、リヤ用各 2 セットを作ります。 ◆ Assemble 2 front and 2 rear shocks. BM-S812R ショックオイル ショックキャップ Shock Oil オイルは溢れるギリギリ Shock Cap フロント/ #550 まで入れます。 リヤ/ #400 Fill to the rim with  Front / #550 shock oil. Rear / #400 ショックオイルを入れ、ショック ショックキャップをしっかり シャフトをゆっくり動かして気泡を と締め込みます。 抜きます。 Securely tighten the  Slowly move up and down to  shock cap. remove air bubbles. このページで使用するパーツ Parts used on this page ショック Assy ZC-C25 Shock Assembly M2x5 キャップスクリュー YS-400 SHC Screw ショックオイル #400 ×1...
  • Page 22 23. フロント&リヤショックの取り付け      Front & Rear Shock  Installation FRONT Z2-S93 ショックキャップボール Shock Cap Ball ZC-N3L M3 ナイロンナット Nylon Nut フロントショック Assy Front Shock Assembly ZC-BH315 M3x15 ボタンヘッド BHS Screw REAR このページで使用するパーツ ※ショックマウントナットは袋 #9 に入っています。 Parts used on this page    The shock mount nut are included in bag #9. ※ショックマウントナットは袋 #9 に入っています。    The shock mount nut are included in bag #9. 取付け位置はショックマウントナット の向きにより穴位置が変わります。 Mount position is selectable by  direction of the shock mount nut  S4-008R5B (note direction of the marking) ショックマウントナット ×2 Shock Mount Nut 袋 #12 の内容 Z2-S93 Bag #12 Contents ショックキャップボール...
  • Page 23 24. モーターの取り付け     Motor Installation 平らな面 Flat side モーター ( 別途ご用意下さい。) Motor ( Sold Separately. ) ピニオンギヤ ( 別途ご用意下さい。) セットスクリュー ◆ 仮止め ◆ Pinion Gear ( Sold Separately. ) Set Screw S4-304-2 Lightly tighten. ZC-F310 モーターアダプター M3x10 ボタンヘッド Motor Adapter FHS Screw ZC-BH310 M3x10 ボタンヘッド BHS Screw ギヤの噛み合わせは 0.3mm 程度ガタつくように合わせます。 ガタが多すぎるとギヤが破損しやすくなるためご注意下さい。 また、この間隔が狭すぎると異音が生じたり、駆動が重くなる ため調整は慎重に行ってください。 Adjust the meshing of the gears so that there is  袋 #13 の内容 approximately 0.3mm of play in between the teeth. Be  ①ピニオンギヤをスパーギヤの歯幅に合わせて固定します。 careful, as too much play will cause the gears to strip. Bag #13 Contents Please adjust the gear mesh carefully, as insufficient ...
  • Page 24 25. サーボの取り付け     Servo Installation ※サーボセイバーを取り付ける前に必ず、サーボのニュートラル調整を行ってください。 (詳しくはプロポセットの取扱説明書をご覧下さい。 ) Make sure that the servo is centered before attaching the servo saver horn.  (Refer to your radio manual for more information.) 使用するサーボに合わせてサーボホーンをお選び下さい。 ZC-BH38 M3x8 ボタンヘッド Select the servo saver adapter matching the  BHS Screw servo being used. YOKOMO / FUTABA SANWA / KO / JR ZC-BH36 M3x6 ボタンヘッド Hitec BHS Screw S4-203P2 サーボマウントプレート Servo Mount Plate Z4-200 袋 #14 の内容 サーボマウント Bag #14 Contents Servo Mount このページで使用するパーツ Z2-206-6 Parts used on this page ロッドエンドボール 6 ㎜ Ball Stud 6 ㎜ S4-203A2 アルミサーボマウント...
  • Page 25 26. 受信機、スピードコントローラーの取り付け     Receiver,ESC Installation 受信機、スピードコントローラーを取り付ける際に取り付け面をクリーナー等で油分や汚れを拭き取ってから固定してください。 Before mounting the receiver and speed controller, use a cleaning agent to remove any oil or dirt from the mounting surfaces. 受信機、スピードコントローラー  (別途ご用意下さい。 ) Receiver and speed controller (Sold separately.) ZC-203 両面テープ  Double-Sided Tape ZR-200A サイズに合わせて アンテナパイプ カットします。 Antenna Tube Cut to size. ZC-SS34 M3x4 セットスクリュー Set Screw アンテナ線 Antenna Wire このページで使用するパーツ Parts used on this page ZR-200A アンテナパイプ ×1 Antenna Tube ZC-203 両面テープ ×1 Double-Sided Tape 袋 #14 の内容 Bag #14 Contents ZC-SS34 M3x4 セットスクリュー ×1 六角レンチ(1.5mm) Set Screw Allen Key ( 1.5mm )
  • Page 26 27. バッテリープレートの取り付け センター / 前方  :  バッテリー / 前方      Battery Plate Installation Center / Forward position  :  Battery / Forward position ZC-BH38 M3x8 ボタンヘッド BHS Screw ZC-S37 M3 ワッシャー Washer S4-118P2 バッテリープレート センター / 後方  :  バッテリー / 前方 Battery plate Center / Back position  :  Battery / Forward position センター / 前方  :  バッテリー / 後方 Center / Forward position ...
  • Page 27 28. タイヤの接着、取り付け     Mounting Tires, Wheel Installation タイヤのサイドをめくり、ホイルとの隙間に瞬間接着剤を 流し込み、両サイドを接着します。 Pull the sidewall of the tire slightly away form the  rim and apply CA(Cyanoacrylate) glue in between  the tire bead and rim. タイヤにインナースポンジを押し込み、タイヤのリブをホイルの溝にはめ込みます。 Place the tire insert into the tire, and tire onto the weel.  瞬間接着剤 (別途ご用意下さい。 ) CA(Cyanoacrylate) glue sold separately. B4-827 / B4-827W リヤホイール Rear Wheel TF-610 BM-T16 フロントタイヤ フロントインナースポンジ Front Tire Front Insert ※タイヤ、インナースポンジ、ホイールは付属しておりません。 ※ 別途ご用意ください。 Tire and insert, wheels ( Sold separately ) B4-827 / B4-827W BM-N4S リヤホイール M4 セレーションナット Rear Wheel Serrated flange nut ホイール  (別途ご用意下さい。 ) Wheel (Sold separately.) B4-821 / B4-821W フロントホイール...
  • Page 28 29. ボディ、ウイングのカット      Body and Wing Cutting φ6mm ボディマウント Body mount φ6mm ボディマウント Body mount カットラインに沿ってカットします。 Cut along the cutting line. このページで使用するパーツ φ3mm ウイングマウント Parts used on this page Wing mount ZS-GWBN ごくらくオフロードウイング・ナロー ×1 ZS-GWBN OFF ROAD Wing Narrow ウイング Wing ★ボディ加工のおすすめアイテム  カットには YT-CS2 曲線バサミ●1200  穴あけには YT-BMR ボディリーマー●2800  Recommended items for preparing the body  YT-CS2 Curved Scissors for cutting S4-101LW  YT-BMR Body Reamer for opening holes YZ-4S S1 ボディ・軽量 ×1 YZ-4S S1 Body・Lightweight...
  • Page 29 30. ボディの塗装&ボディ、ウイングの搭載     Painting the body & Body and Wing Installation ●ボディの塗装 ボディの内側(塗装面)を中性洗剤で油分やホコリを洗い流します。油分やホコリが付着していると、塗装後の剥がれの原因となりますので必ず洗ってください。洗浄後は水分を しっかり拭取ってください。 塗装する前にウインド部分を塗装しないようボディ裏側からマスキングシートを貼ります。その際にマスキングシートがボディに密着していないとにじみの原因になるので注意し てください。 塗料はポリカーボネイト専用(パクトラ製カラースプレーなど)を使用してください。スプレー塗料は1回で厚塗りしてしまうと塗料がたれたり、塗りムラができるので、全体に 薄く塗って乾かし2〜3回に分けて塗装するようにしてください。 ※ボディ表面の保護シートは塗装後に剥がすようにしてください。 ● Painting the body Wash the inside of the body with luke warm water and a mild soap or detergent (such as liquid dishwashing soap) prior to painting. Oil residue or dust  will prevent the paint from adhering to the painting surface, and possibly cause the paint to peel later on. After washing, thoroughly dry the body to  allow the paint to adhere properly. Before painting, apply the pre-cut masking decals to the window and light areas on the inside of the body. Press down the edges of the masking tape  to prevent paint from seeping through. Use a spray paint formulated for use on polycarbonate bodies (such as Pactra brand spray paint). Spray several light coats, as evenly as possible. For  best results, allow each coat to dry before spraying the next coat. Avoid spraying thick, heavy coats. This may cause the paint to run, preventing the  paint from looking uniform in color. Remove the outer protective film from the body after painting has been completed. ●デカールの貼り方 ・ボディ表面の保護シートを剥がしてから行います。 ①デカールを台紙も一緒に切り抜きます。 ②台紙の端の方を少しカットしてデカールを貼る位置に合わせます。 ③位置が決まったら少しずつ台紙を剥がしながら位置がずれないように貼っていきます。 ※デカールを貼る際に台紙を全部剥がしてしまうと気泡が入ったりシワの原因になります。 ● Applying the decals ① Include the decal backing when cutting out the decals. ② Remove a small piece of backing from one corner of the decal. Position the decal and press the unbacked portion onto the body. ③ Once in position, slowly remove the remaining backing from the decal, and slowly press the decal onto the body. ※ Applying the decals with the backing completely removed may cause bubbles and/or wrinkles to form. Front ※塗装してからデカールを貼ります。 ※ Apply the decals after painting. ZC-105 S4-101LW マジックテープ マスキングシート...
  • Page 30 ZC-BH38 YZ-4SF2 Exploded View ZC-BH36 S4-203P2 Z4-200 S4-203A2 ZC-N3L Z2-S9 ZC-N3P B2-670C S4-017-1P ZC-S37 S4-303P1 Z2-206DM2 ZC-BH322 ZC-F36 B2-670C S4-018S S4-303OP ZC-S37 ZC-BH310 SD-TB39N S4-303AJ2 Z2-206DM2 Z2-206-6 S4-303MS2 Z4-200 ZC-BH312 BB-1510 Z2-206-8 ZC-S36 ZC-BH310 ZC-BH312 S4-010B65 Z2-206C1 S4-010B98( ZC-BH310 S4-002FR ZC-SS43LF ZC-BH312 S4-010CD ZC-BH312 S4-002BC...
  • Page 31 S4-303DCB ZC-F310 BB-1510 S4-001W S4-303P2 ZC-BH312 ZC-BH322 B2-670C ZC-S37 S4-018-1P S4-SG80D ZC-N3P BB-1510 Z2-S9 ZC-BH28TP ZC-N3L S4-302H2 S4-503DC ZC-S50S S4-302R S4-503GHC S4-018S B2-501GG S4-018-1P ZC-C268 BD-500GO S4-002BC Z2-206-8 ZC-BH38 S4-206C1 S4-302H2 ZC-N3P S4-500GM S4-001W S4-500GM ZC-BH310 B2-503GM ZC-BH312 ZC-BH312 S4-503R16 B2-503GM S4-503D16 S4-002RR...
  • Page 32 F/# 10K R2  2     4 gear R1     R0    R/# 10K Brace plate # R-0.5  2     4 gear × MOTOR  Rotor           ㎜ GEAR   Spur   T / Pinion   T  :  2.5 BATTERY  Chassis brace ESC  ○ YOKOMO RPXⅡ  ○YOKOMO BL-PRO4 Side plate   ○      F RONT R EAR TIRE  YAU-6855 Cactus fusion TIRE  YAU-6838 Cactus INSERTS  YAU-6733 Medium  INSERTS  YAU-6734 Medium  WHEELS  B4-821 / B4-821W WHEELS ...
  • Page 33 × S4-300RF2 (1W) × Forward   Back CENTER     Forward   Back F/# R2  2     4 gear R1     R0    Brace plate # R-0.5  2     4 gear × MOTOR  Rotor           ㎜ GEAR   Spur   T / Pinion   T  :  2.5 BATTERY  Chassis brace ESC  ○ YOKOMO RPXⅡ  ○YOKOMO BL-PRO4 Side plate   ○      F RONT R EAR TIRE  TIRE  INSERTS  INSERTS  WHEELS  WHEELS  COMMENT...
  • Page 34 PARTS LIST YZ-4 SF2 品 番 品  名 価格 YZ-4SF 用 スタビ ワイヤー ソフトセット ( 6種類 ) S4-412WS ¥850 ● (1.0mm 〜 1.5mm) YZ-4SF 用 スタビ ワイヤー ハードセット ( 5種類 ) S4-412WH ¥850 ● (1.6mm 〜 2.0mm) キット S4-412H YZ-4SF 用 スタビ ホルダー ¥380 ● YZ-4SF2 4WD レーシング オフロード カー S4-412B YZ-4SF 用 スタビ ボール ( φ 2.0mm 穴 )( ハード アルマイト ) ¥360 ●...
  • Page 35 YZ-4 / B-MAX4 用 CS-HDL ハイグレード ボールデフ グリス ( ハイパワー対応 ) ¥720 ★ Z4-413125 ¥4,800 ★ アルミ製 ステアリング ハブキャリア (12.5 度 ) CS-SLG シール グリス  ( Oリング / ガスケット用 ) ¥860 ★ B-MAX4 Ⅲ用 ドリフト プラス タイプ C 用 B4-413A15 ¥3,800 ★ SD-008S ¥120 ● アルミ製 ステアリング ハブキャリア (15 度 ) キャスター アングル スペーサー BM-414WA アルミ製 キングピン セット...
  • Page 36 2020.08...
