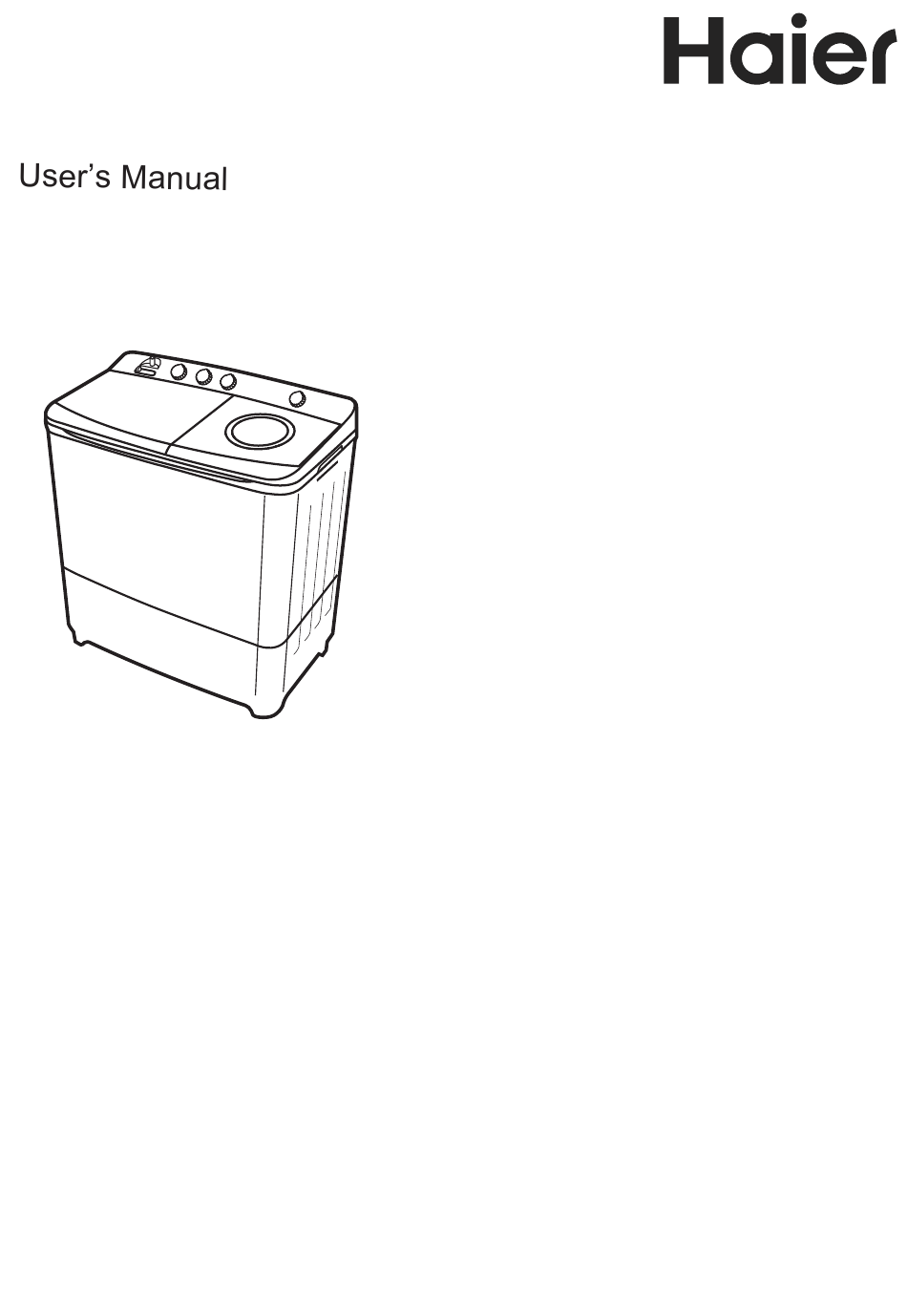

Haier HTW130-186S User Manual

Semi automatic washing machine
Hide thumbs

Advertisement

Quick Links

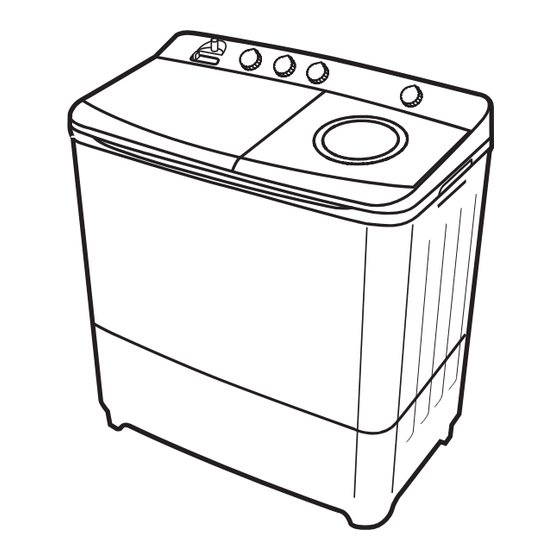

Semi Automatic Washing Machine
HTW130-186S
HTW200-186S
Please read this manual
carefully before using.
Retain it for future reference.
Contents
..........................................
..............................
..............................
..................
..............................
..............................
......................
..................................
..................................
Back cover
.........................
2
4
4
5
7
9
12
14
15

Advertisement

loading

  Related Manuals for Haier HTW130-186S

  Summary of Contents for Haier HTW130-186S

  • Page 1: Table Of Contents

    Pre-wash preparation ...... Washing sequence ...... Disposal after washing ......  Troubleshooting ........ E-waste Guideline ........ Specifications Back cover ...... HTW130-186S HTW200-186S Please read this manual  carefully before using. Retain it for future reference. ...
  • Page 2: Safety Precautions

    Safety precautions Meaning and description of the symbols Contents marked with this symbol relate to product and WARNING user safety. Please operate the machine in strict conformity to the contents of this manual to minimize the risk of personal injury and/or damage to the machine.
  • Page 3 To avoid abnormal vibrations in Do not share the outlet with other electric spinning, do not use the machine to appliances. If the power plug is damaged, wash water-proof laundries like or feels loose when plugged into the raincoats, bike covers etc. outlet, stop using the plug immediately.
  • Page 4: Packing List

    Semi automatic Water intake Draining Bottom foot Gland washing machine hose hose (5EA) (HTW130-186S only) Machine Components Wash timer Drain selector Spin timer Wash selector If you wish to set it Intensity can be Warning: do not If to set to less than...
  • Page 5: Installation And Adjustment

    Installation and adjustment For your security and to ensure correct operation of the machine, please install and adjust the machine according to this manual’s instructions. Installation of the lint filter Place the bottom side of the lint filter into the overflow filter, then push the top side into the overflow filter overflow filter.
  • Page 6 1.Remove the cover 2.Install the drain hose Install the bottom foot (HTW130-186S only) 1. Tilt the washing machine slightly from the front of the machine, and install the Bottom feet with the three mounting pores on the front of the base.
  • Page 7: Pre-Wash Preparation

    Pre-wash Preparation Basic know-how The maximum capacity during washing and spinning cycles  refers to the max weight of standard dry laundry that can be washed or spun at one time. The laundry quantity during one washing cycle should be lower than the rated capacity. Thickness, size, and the type of cloth will influence actual ...
  • Page 8 Detergent use How to add detergent: Method 1 - directly dissolving in the machine:  1.Add a small quantity of water to the machine. 2.Add the detergent powder. Run washing machine for 30 seconds to dissolve powder completely. 3.Place laundry into the washing machine and select a suitable water level. Method 2 - instantly dissolving the detergent powder: ...
  • Page 9: Washing Sequence

    Washing sequence Washing 1.Inlet selector Set the selector to “WASH”.(Figure1) Figure 1 2.Add water Machine begins to dispense detergent uniformly.(Figure2) Figure 3.Put in the wash load. Add more water as necessary.(Figure3) Figure STRONG Select intensity. water flow “STRONG” Select “STANDARD” Figure intensity according to the wash load.(Figure4) 5.Select wash timer.
  • Page 10 Mid-wash spin cycle 1. Put the laundries into the spin tub evenly and smoothly. 2.Spin (1) Distribute the laundry into the spin tub smoothly and evenly. Note: the gland must be inserted properly even if the laundry quantity is small. Gland Push Push...
  • Page 11 The rinse cycle Rinse with water-filling 1.Place laundry into the washing machine. Place laundry into the washing machine. Select the appropriate current according to the laundries. 2.Add water. Add the appropriate amount of water. 3.Rinse 。 Adjust the wash timer to 5-7 minutes for the rinse cycle Rinsing with stored water (Repeat the mid-wash spin cycle and rinse cycle with stored water 2-3 times) 1.Place laundry into the washing machine.
  • Page 12: Disposal After Washing

    Disposal after washing After each use, be sure to clean the lint and foreign materials from the lint filter and the  overflow filter in a timely fashion. Removing lint is important for healthy operation of the machine. Please remove the plug from the power outlet first before cleaning. ...
  • Page 13 Cleaning the overflow filter Too much lint in the overflow filter will influence normal usage of the machine. Remember to clean it once every two months. Elastic fixing claw Take off the overflow filter. Nip the elastic fixing claw and pull in the direction of the arrow to remove (as demonstrated in the figure to the right).
  • Page 14: Troubleshooting

    Troubleshooting When the remaining water is frozen Prevent the freezing Pour hot water below (be sure to drain the water Below 50 50°C into the wash cycle completely after each use) 2~3L compartment to soak it After completely draining, set completely, then using the “DRAIN SELECTOR”...
  • Page 15: E-Waste Guideline

    Introduction We at Haier in our continuous efforts of making a future better adopted eco-friendly practices and procedures. We acting towards our social, moral and statutory responsibility towards the environment and sustainable development have pledged to recycle electronic items, such as TV/LED/LCD, refrigerator, washing machine, etc. that are no longer useful.
  • Page 16: Specifications

    Specifications Model HTW200-186S HTW130-186S Water level/Water quantity 4/140L 3/118L 2/92L 1/67L 4/97L 3/81L 2/60L 1/39L (approximately) Dimensions 1025×605×1115mm 915×558×1020mm Injection pressure(MPa) 0030515976...

This manual is also suitable for:

Htw200-186s
