RM67
Mic/Source Mixer

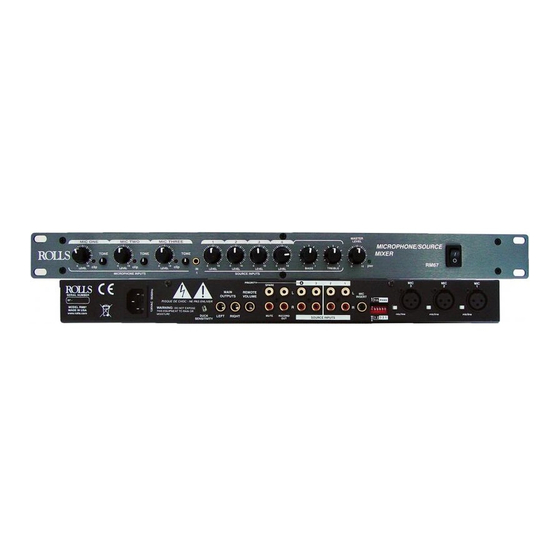

FEATURES
• Three XLR balanced inputs with phantom power
• Tone controls for each Mic input
• Clip indicators on all Microphone inputs
• Four stereo Source inputs
• 1/4" input for remote volume control
• RCA Record Out
• 1/4" TRS balanced outputs
OWNERS MANUAL
