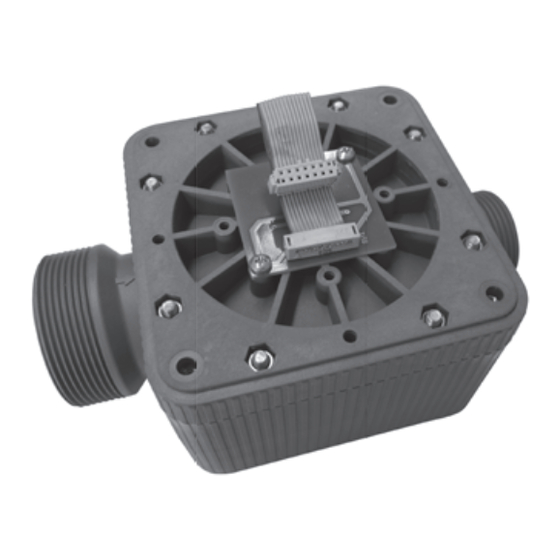

- Page 1 Translation of the original instructions BASIC FLOW METER Type ST10 HDO080 SL10 HDO120 LM10 HDO200 UN10 HDO250P VA10 HDO250 HC10 HDO400 HDO500 Read this operating instructions before start up! To be retained for future reference.
-
Page 2: Table Of Contents
Table of Contents A. General ............................4 1. Concerning this manual ......................4 1.1 Terms ..........................4 1.2 Target groups ........................4 1.3 Associated applicable documents ..................4 1.4 Warnings and symbols ....................... 5 1.5 Latest state .......................... 5 1.6 Copyright ..........................5 2. - Page 3 C. Basic flow meter HDO ........................20 1. Proper use ..........................20 1.1 Application in explosion hazard areas ................21 1.2 Technical data ........................22 1.3 Liability..........................28 2. Installation ..........................29 2.1 Electrical connection HDO080 ................... 30 2.2 Drum pump connection ....................30 3.
-
Page 4: General
A. General 1. Concerning this manual This manual • is part of this product • is valid for all mentioned series • describes the safe and proper use in all operating stages 1.1 Terms User: Single person or organisation who is using the products e.g. customer, user, assistant 1.2 Target groups Target group Task User ► R etain these operating instructions at the product’s place of use for... -
Page 5: Warnings And Symbols
What to do → cross reference Requirement Tab. 4: Symbols and meaning 1.5 Latest state Please find the latest state of this operating instruction under www.lutz-pumpen.de. 1.6 Copyright The contents of these operating instructions and the images contained in them are subject to the copyright protection of Lutz Pumpen GmbH. -
Page 6: Safety
2. Safety The manufacturer will not be held responsible for any damages resulting from non-compliance of the overall documentation, in particular for damages in case of non-compliance of the operating instructions. 2.1 General safety information Observe following regulations before accomplishing all activities. Product safety The basic flow meter is constructed in conformity with the state of the art and approved safety-related standards. Danger however can occur during use for life and health of the user or third parties or dama- ge of the basic flow meter and other material assets. Therefore: • Operate the basic flow meter only in a technically sound state, for its proper use, and conscious of safety and hazards taking into account these instructions. -
Page 7: Transport And Storage
Personnel qualification • Ensure that personnel tasked with work on the basic flow meter have read and understood these instructions and all associated applicable documents, particularly safety, maintenance and servicing information, before they start work. • Clarify responsibilities, competencies and monitoring of the personnel. • Ensure that all work is carried out by technical qualified personnel only: - Assembly, servicing, maintenance work - Work on the electrics Statutory warranty • During the guarantee period, obtain the manufacturer's permission for modifications, maintenance work or alteration. • Use only original parts. Duties of the personnel • Observe the notices on the basic flow meter and maintain them in a legible state. -
Page 8: Modular Flow Meter System Ts
5. Modular Flow Meter System TS The flow meter operates according to the positive displacement principle. In a housing fitted with inlet and outlet is a measuring chamber through which the fluid is forced to flow on its way through the housing. In the measuring chamber, a nutating disc blocks the fluid`s clear path. As it flows through the measuring chamber, the fluid pushes the nutating disc to one side. It is the action of displacing the impediment which produces the wobble movement of the disc and circular motion of the nutating disc shaft. By means of a driver, a magnet with several poles is set into rotation, which is able to activate a magnetically switched contact through the lid of the housing. Every revolution of the nutating disc is assigned to a constant volume and a fixed number of pulses, so permitting the electonic evaluating system to determine the volumetric flow through the number of received pulses. -
Page 9: Modular Flow Meter System Hdo
6. Modular Flow Meter System HDO The HDO series flow meter has incorporated the oval gear principle into its design. This has proven to be a reliable and highly accurate method of measuring flow. Exceptional repeatability and high accuracy over a wide range of fluid viscosities and flow rates are features of the HDO series flow meter design. The low pressure drop and high pressure rating means the HDO series flow meter is suitable for both gravity and pump (in line) applications. For practically-orientated application, the flow meter system is made up of various modules: À Operating unit Electronic evaluating unit with touchscreen for operation of the flow meter. Á Protection cap Protects the modules basic flow meter, relay module or mains unit when the operating unit is decentrally installed. Pulse converter Amplifies the signals from the basic flow meter. Is required if the signals need to be transmitted further than 5 m. -
Page 10: Basic Flow Meter Ts
B. Basic flow meter TS 1. Proper use The basic flow meter is used for measuring liquid volumes where gauging metering is not required. The basic flow meter is precalibrated for the use of water. The measurement of other pure media is also possible. To do this, a different user-specific calibration factor is entered at the operating unit. NOTICE These causes may impair the measurement result, damage the flow meter, or reduce its service life: ► strongly pulsating flow ► air bubbles in the flow ► excessively low or high flow rate ► excessive viscosity of the measured fluid ► blowing through of compressed air. 1.1 Application in explosion hazard areas WARNING Application in explosion hazard areas or the metering of flammable liquids can cause explosion resulting in severe injury or death. -
Page 11: Technical Data
1.2 Technical data Type ST10 SL10 LM10 UN10 VA10 HC10 Flow rate min. 10 l/min min. 10 l/min min. 10 l/min min. 10 l/min min. 10 l/min min. 10 l/min max. 100 l/min* max. 100 l/min* max. 100 l/min* max. 100 l/min* max. -
Page 12: Maximum Pressure Depending On Temperature Of The Medium
1.3 Maximum pressure depending on temperature of the medium Type VA10, HC10 Type ST10, SL10, LM10, UN10 Diagram 1 - Maximum pressure depending on temperature of the medium 1.4 Complete hose system Before initial starting of the flow meter, the entire piping system must be slowly vented from the pump through to the shutoff element (nozzle, solenoid valve or similar). During operation, care must be taken to ensure that the complete system is filled with liquid. 1.5 Pressure surges (water hammer) Considerable pressure fluctuations with so-called water hammer can build up in the system as a result of delays (disconnection/shutoff) or acceleration of the flowing liquid column when using long delivery lines or when using solenoid valves with short opening and closing times. -
Page 13: Pressure Drop
2 and multiplied by the density value of the liquid. Media with a high dynamic viscosity (η >> 1 mPas) like high-density media, cause a higher pressure drop. The limiting curve for permissible viscosity at ρ = 1 kg/dm³ is depicted in diagram 2 as a dotted line. If the density ρ is greater than 1 kg/dm³, the pressure drops in the diagram must be multiplied by the actual density. Type VA10, HC10 Type ST10, SL10, LM10, UN10 specific density ρ = 1 kg/dm³ Diagram 2 - Pressure drop depending on flow volume... -
Page 14: Accuracy Of Measurement And Flow Rate
3a and 3b). The measurement accuracy with regard to the flow can be improved in two ways: 1. The flow meter is precisely calibrated to the flow rate with regard to the operation (→ operating inst- ructions - operating unit). This is the most accurate. However, it only works at a constant flow rate. 2. The measurement accuracy over the flow rate range reacts differently depending on the basic flow meter type (→ diagrams 3a and 3b). If the basic flow meter type is selected on the operating unit (→ operating instructions - operating unit), then the accuracy is automatically improved for certain flow rate ranges. Example for type ST10, SL10, LM10, UN10: Q = 20 l/min K = 0,01 = 1,028 = 1,028 + 0,01 Type ST10, SL10, = 1,038 LM10, UN10... -
Page 15: Liability
2. Prevention of obvious misapplication WARNING The metering of non-compatible liquids damages the flow meter. Splashing liquid or flying parts can cause injury. ► Check by means of the materials indicated in the technical data and a resistance table (e. g. Lutz resis- tance table) whether the basic flow meter is suitable for the delivered liquid. WARNING Exceeding the temperature range and the operating pressure causes damage to the basic flow meter. -
Page 16: Installation
3. Installation 3.1 Connection for drum pump operation Mounting steps flow meter type ST10, SL10, LM10 and UN10: 1. Mount the check valve (option) and filter screen into the inlet (arrow). The non-return valve may be only installed together with a strainer. 2. Insert the o-rings into the collar bush. -
Page 17: Connection To The Piping System - Flange Connection
► Pipes, fittings, etc. must be suitably supported so that additional weight and vibrations are not trans- mitted to the flow meter! ► Suction and discharge lines must always be connected without tension. The piping must be rerouted if an offset cannot be compensated by appropriate means! Mounting steps flow meter type ST10, SL10, LM10 and UN10: 1. Mount the check valve (opti- on) and filter screen into the inlet (arrow). The non-return valve may be only installed together with a strainer. -
Page 18: Valve Connection
4. Screw the discharge bend onto the outlet side of the solenoid valve. Fig. 9 - Valve connection 4. Maintenance and servicing 4.1 Cleaning the filter and check valve It is advisable to flush and clean the basic flow meter after handling aggressive, tacky, crystallizing or very contaminating liquids. Procedure type ST10, SL10, LM10 and UN10: 1. Empty the flow meter 2. Release the wing nut 3. Remove the filter and clean with a paintbrush or blow through with compressed air 4. Press in the check valve manually and blow through with compressed air... -
Page 19: Dismantling The Basic Flow Meter
VA10 and HC10 it is recommended to replace the o-ring Á . Wet the sealing surface and o-ring with a suitable lubricant. Basic flow meter ST10, SL10, LM10 and UN10 (→ Fig. 10a): 1. Release the screws Å on the bottom side of the flow meter. 2. Remove the cover À upwards. -
Page 20: Basic Flow Meter Hdo
Rotors are made of PPS or stainless steel. WARNING Splashing liquid or flying parts can cause injury. The metering of non-compatible liquids damages the flow meter. ►Check by means of the materials indicated in the technical data and a resistance table (e. g. Lutz resistance table) whether the basic flow meter is suitable for the delivered liquid. Exceeding the temperature range and the operating pressure causes damage to the basic flow meter. -
Page 21: Application In Explosion Hazard Areas
NOTICE These causes may impair the measurement result, damage the flow meter, or reduce its service life: ► strongly pulsating flow ► air bubbles in the flow ► excessively low or high flow rate ► excessive viscosity of the measured fluid ► blowing through of compressed air. 1.1 Application in explosion hazard areas DANGER Fire and explosion hazard due to delivered liquid! Combustion hazard. -
Page 22: Technical Data
1.2 Technical data Type HDO080 SS/SS Effective range below 5 mPas 0.44 - 8.3 l/min above 5 mPas 0.25 - 8.3 l/min Temperature max. 80 °C Viscosity max. 1.000 mPas Operating pressure max. 16 bar Accuracy below 5 mPas ± 2.5% of measured quantity above 5 mPas ±... - Page 23 Type HDO120 Alu/LCP HDO120 SS/SS Effective range below 5 mPas 2 - 25 l/min 2 - 25 l/min above 5 mPas 1 - 30 l/min 1 - 30 l/min Temperature max. 80 °C (60 °C*) max. 120 °C (60 °C*) Viscosity max.
- Page 24 Type HDO200 Alu/LCP HDO200 SS/SS Effective range below 5 mPas 4.5 - 53 l/min 4.5 - 53 l/min above 5 mPas 2 - 60 l/min 2 - 60 l/min Temperature max. 80 °C (60 °C*) max. 120 °C (60 °C*) Viscosity max.
- Page 25 Type HDO250P PPS/PPS HDO250 Alu/PPS HDO250 SS/PPS HDO250 SS/SS Effective range below 5 mPas 8 – 70 l/min 9.5 – 150 l/min 9.5 – 150 l/min 9.5 – 150 l/min above 5 mPas 3 – 75 l/min 6 – 170 l/min 6 –...
- Page 26 Type HDO400 Alu/PPS HDO400 SS/PPS HDO400 SS/SS Effective range below 5 mPas 15 – 227 l/min 15 – 227 l/min 15 – 227 l/min above 5 mPas 9.5 – 246 l/min 9.5 – 246 l/min 9.5 – 246 l/min Temperature max.
- Page 27 Type HDO500 Alu/PPS HDO500 SS/PPS HDO500 SS/SS Effective range below 5 mPas 23 – 380 l/min 23 – 380 l/min 23 – 380 l/min above 5 mPas 15 – 380 l/min 15 – 380 l/min 15 – 380 l/min Temperature max.
-
Page 28: Liability
1.3 Liability If the product and supplied accessories are used for other purposes than the intended purpose, it is the responsibility of the user to check the suitability and admissibility. Product use not confirmed in writing by the manufacturer absolves the manufacturer of any liability. The manufacturer is not liable for consequences of incorrect treatment, use, maintenance, servicing and operation of the appliance, as well as normal wear and tear. The same applies if faults arise from inter- vention or configurations on the part of the user not confirmed by the manufacturer. -
Page 29: Installation
2. Installation 1. We recommend that when Flow Inlet setting up pipework for meter installations a bypass line be Bypass Line included in the design. This provides the facility for a me- ter to be removed for main- tenance without interrupting production (→ Fig. 11). Strainer Flow Outlet... -
Page 30: Electrical Connection Hdo080
2.1 Electrical connection HDO080 Fig. 13 – Electrical connection HDO080 2.2 Drum pump connection 1. Place the wing nut onto the drum pump connection and screw the counternut. 2. Screw the drum pump con- nection with the flow meter and tighten the counternut. Seal the thread with a PTFE tape. -
Page 31: Operation
3. Operation Bild 15 – Function of rotors When fluid passes through the meter, the rotors turn. The rotors contain magnets with magnetic fields that also rotate. The magnetic fields operate through the meter housing to switch on and off two reed switches located on a board above the measuring chamber. Applying a voltage to the reed switch generates a pulse signal that the board transmits to the meter electronics where it is evaluated. 4. -
Page 32: Reassembly
4.1.2 Reassembly 1. Before reassembling, check the condition of the rotors Rotor 1 (replace if necessary). 2. Check that the smooth side of the rotors is facing you when inserting the rotors with the two holes. This side is the magnet side. There is no difference between rotor 1 or rotor 2. -
Page 33: Basic Flow Meter Hdo120, Hdo200, Hdo250, Hdo400 And Hdo500
4.2 Basic flow meter HDO120, HDO200, HDO250, HDO400 and HDO500 4.2.1 Disassembly of wet ends 1. Remove the screws at the bottom side of the flow meter. 2. Remove the cover. 3. Detach the rotors from the shaft. 4. Remove the o-ring. 4.2.2 Assembly of wet ends 3 Check rotors and replace if necessary. Both rotors have identical design. 3 Check o-ring and replace if necessary. 1. -
Page 34: Reed Switch Board
4.2.3 Reed switch board NOTICE The board contains sensitive components and must be handled with care. Use the slide switch to adjust the board to the size of the basic flow meter. • Position 1 (top): 1/2", 3/4", 1" = HDO120, HDO200, HDO250 • Position 2 (middle): 1 1/2" = HDO400 • Position 3 (bottom): 2", 3" = HDO500 Slide switch Fig. 18 - Reed switch board Reed switch white green Slide switch blue... -
Page 35: Basic Flow Meter Hdo080
4.3 Basic flow meter HDO080 4.3.1 Disassembly 1. Remove the screws at the topside of the basic flow meter. 2. Remove the cover. 3. Detach the rotors from the shaft. 4. Remove the o-ring. 4.3.2 Reassembly 3 Check rotors and replace if necessary. Caution! The rotors do not have identical design. 3 Check o-ring and replace if necessary. 1. Insert the o-ring into the groove of the meter housing. 2. -
Page 36: Repairs
D. Repairs ►Repairs should only be made by the manufacturer or authorized Lutz-dealers. ►Only use original Lutz Pumpen spare parts. If other spare parts are used, liability on the part of Lutz Pumpen is obsolete. Before sending back the appliance, following must be observed: • Residuals in the appliance can cause danger to the environment and human health. The appliance must be completely emptied, rinsed and cleaned. • Please advise which liquid has been pumped. A respective safety data sheet must be attached to the return consignment. -
Page 37: Annex
G. Annex 1. Terminal assignment of cables and connectors white Function brown green + 6V yellow Earthing grey pink Reed switch blue Coding black violet grey / pink red / blue SLEEP/ white / green brown / green RESET/ Earthing Fig. A1 - Data outlet operating unit Fig. -
Page 38: Trouble Shooting
2. Trouble shooting 2.1 Fault report Operating mode Fault report Cause Remedy General Communication with • The connection • Check bus lines another module not between the possible. modules is interrupted CHECK BUS! • Program error in the • Restart the system by pressing system “Reset”... - Page 39 Operating mode Fault report Cause Remedy Flow monitoring Flow rate too low • Pump damaged • Check pump • Line strainer blocked • Clean strainer • Hose line kinked • Check hose line • Solenoid valve • Check solenoid valve damaged Flow monitoring Flow rate too high • Flow control valve •...
-
Page 40: Other Faults
2.2 Other faults Operating mode Fault Cause Remedy General No liquid registered • Air in the piping • Prevent air pockets in system/dry running connecting lines, use a solid hose system • Pump is not • Check pump operating • Line strainer blocked • Clean strainer • Time required to • Increase monitoring time fill the connecting lines exceeds the set monitoring time... - Page 41 Operating mode Fault Cause Remedy General Liquid leaks from the • Seal defective • Replace seal housing of basic flow meter • Hairline cracks in • Check installation conditions housing and/or on for mechanical stresses or screw connection correct them due to mechanical influences • Screw connection not • Check that screw connections tightened securely are secure •...
-
Page 42: Spare Parts List Basic Flow Meter Ts
(fortypeVA10) 0211-208 Bodenlager basesupport (fürTypVA10) (fortypeVA10) 0211-209 Deckellager topsupport (fürTypVA10) (fortypeVA10) Verschleißteil/wearingpart + Neuteil/newpart · BeiErsatzteilbestellungenimmerBestell.-Nr.angebenundFertigungs-NroderAuftrags-Nr.deszureparierendenGerätes. DerNettowarenwerteinerBestellungmußmindestensEUR25,--(ohneMWSt.)betragen. Whenorderingspare-partsalwaysindicatethecorrespondingorderNo.andproductionNo.ororderNo.oftheunittoberepaired. MinimumnetvalueofsparepartordershallamounttoEUR25,--(withoutVAT). Änderungenvorbehalten./Subjecttochange. Lutz Pumpen GmbH * Erlenstr. 5-7 * 97877 Wertheim * Tel. 09342/879-0 * Fax 09342/879-404 Internet: http://www.lutz-pumpen.de * e-mail: info@lutz-pumpen.de... - Page 43 (fürTypVA10 (fortypeVA10 mitFasspumpenanschlussG11/2) withconnectorG11/2) 0313-196 FlachdichtungPTFE flatgasketPTFE (fürTypVA10 (fortypeVA10 mitFlanschanschluss) withflangeconnection) Verschleißteil/wearingpart + Neuteil/newpart · BeiErsatzteilbestellungenimmerBestell.-Nr.angebenundFertigungs-NroderAuftrags-Nr.deszureparierendenGerätes. DerNettowarenwerteinerBestellungmußmindestensEUR25,--(ohneMWSt.)betragen. Whenorderingspare-partsalwaysindicatethecorrespondingorderNo.andproductionNo.ororderNo.oftheunittoberepaired. MinimumnetvalueofsparepartordershallamounttoEUR25,--(withoutVAT). Änderungenvorbehalten./Subjecttochange. Lutz Pumpen GmbH * Erlenstr. 5-7 * 97877 Wertheim * Tel. 09342/879-0 * Fax 09342/879-404 Internet: http://www.lutz-pumpen.de * e-mail: info@lutz-pumpen.de...
- Page 44 (fortypeVA10) 0370-039 Trennplatte measuringchamberplate (fürTypHC10) (fortypeHC10) 0370-080 Reedflansch reedflange (fürTypVA10) (fortypeVA10) Verschleißteil/wearingpart + Neuteil/newpart · BeiErsatzteilbestellungenimmerBestell.-Nr.angebenundFertigungs-NroderAuftrags-Nr.deszureparierendenGerätes. DerNettowarenwerteinerBestellungmußmindestensEUR25,--(ohneMWSt.)betragen. Whenorderingspare-partsalwaysindicatethecorrespondingorderNo.andproductionNo.ororderNo.oftheunittoberepaired. MinimumnetvalueofsparepartordershallamounttoEUR25,--(withoutVAT). Änderungenvorbehalten./Subjecttochange. Lutz Pumpen GmbH * Erlenstr. 5-7 * 97877 Wertheim * Tel. 09342/879-0 * Fax 09342/879-404 Internet: http://www.lutz-pumpen.de * e-mail: info@lutz-pumpen.de...
- Page 45 BasiszählerLM10 basicmoduleLM10 0230-530 BasiszählerUN10 basicmoduleUN10 0230-540 BasiszählerVA10 basicmoduleVA10 0230-550 BasiszählerHC10 basicmoduleHC10 Verschleißteil/wearingpart + Neuteil/newpart · BeiErsatzteilbestellungenimmerBestell.-Nr.angebenundFertigungs-NroderAuftrags-Nr.deszureparierendenGerätes. DerNettowarenwerteinerBestellungmußmindestensEUR25,--(ohneMWSt.)betragen. Whenorderingspare-partsalwaysindicatethecorrespondingorderNo.andproductionNo.ororderNo.oftheunittoberepaired. MinimumnetvalueofsparepartordershallamounttoEUR25,--(withoutVAT). Änderungenvorbehalten./Subjecttochange. Lutz Pumpen GmbH * Erlenstr. 5-7 * 97877 Wertheim * Tel. 09342/879-0 * Fax 09342/879-404 Internet: http://www.lutz-pumpen.de * e-mail: info@lutz-pumpen.de...
- Page 46 TaumelscheibePVDF swashplatePVDF 0211-220 Messkammerkpl.gekapselt measuringchambercpl. beinhaltet:0314-190,0211-056,0370-031 including:0314-190,0211-056,0370-031 0370-031 · Führungsstift guidepin Verschleißteil/wearingpart + Neuteil/newpart · BeiErsatzteilbestellungenimmerBestell.-Nr.angebenundFertigungs-NroderAuftrags-Nr.deszureparierendenGerätes. DerNettowarenwerteinerBestellungmußmindestensEUR25,--(ohneMWSt.)betragen. Whenorderingspare-partsalwaysindicatethecorrespondingorderNo.andproductionNo.ororderNo.oftheunittoberepaired. MinimumnetvalueofsparepartordershallamounttoEUR25,--(withoutVAT). Änderungenvorbehalten./Subjecttochange. Lutz Pumpen GmbH * Erlenstr. 5-7 * 97877 Wertheim * Tel. 09342/879-0 * Fax 09342/879-404 Internet: http://www.lutz-pumpen.de * e-mail: info@lutz-pumpen.de...
- Page 47 Ersatzteil-Liste Spare Part List Seite/page: 6 Preisegültigab01.01.16 Pricevalidfrom1stJan.16 Techn.Stand: 2016-11 StateofArt: 2016-11 Basiszähler TS Basic Module TS Typen: ST10, SL10, LM10, UN10, Types: ST10, SL10, LM10, UN10, VA10, HC10 VA10, HC10...
-
Page 49: Spare Parts List Basic Flow Meter Hdo250P
· RotorSet(PPS) rotorset(PPS) bestehendaus2Stück consistingof2pieces 0373-282 Abdeckung(PPS) barrier(PPS) 0375-025 Impulsgeberplatine(Reedschalter) pulsecircuitboard(reedswitch) Verschleißteil/wearingpart + Neuteil/newpart · BeiErsatzteilbestellungenimmerBestell.-Nr.angebenundFertigungs-NroderAuftrags-Nr.deszureparierendenGerätes. DerNettowarenwerteinerBestellungmußmindestensEUR25,--(ohneMWSt.)betragen. Whenorderingspare-partsalwaysindicatethecorrespondingorderNo.andproductionNo.ororderNo.oftheunittoberepaired. MinimumnetvalueofsparepartordershallamounttoEUR25,--(withoutVAT). Änderungenvorbehalten./Subjecttochange. Lutz Pumpen GmbH * Erlenstr. 5-7 * 97877 Wertheim * Tel. 09342/879-0 * Fax 09342/879-404 Internet: http://www.lutz-pumpen.de * e-mail: info@lutz-pumpen.de... - Page 50 Ersatzteil-Liste Spare Part List Seite/page: 2 Preisegültigab01.01.16 Pricevalidfrom1stJan.16 2016-11 2016-11 Techn.Stand: StateofArt: Basiszähler HDO Basic Module HDO Typen: 250P Types: 250P...
-
Page 55: Declaration Of Conformity
Translation of the original declaration of conformity We herewith declare under the sole responsibility that the following product complies with the EU Directives listed. Manufacturer: Lutz Pumpen GmbH, Erlenstraße 5-7, D-97877 Wertheim Product: Basic flow meter Type: Relevant ATEX-Directive ● ● ● ● ● ● ● ● ● ● ●... - Page 56 Lutz Pumpen GmbH Erlenstraße 5 -7 D-97877 Wertheim Tel. (+49 93 42) 8 79-0 Fax (+49 93 42) 87 94 04 e-mail: info@lutz-pumpen.de http://www.lutz-pumpen.de Subject to technical changes. 04/19 Best.-Nr. 0698-601 Printed in Germany...
