Emerson Fisher FIELDVUE DVC6200 Mounting Instructions page 2

DVC6200 or DVC2000 Digital
Valve Controller on 1051 and 1052
Size 40-70 Actuators
PART LIST
KEY QTY
1 1 CAM
2 2 10-24UNCX0.50" HEX HD SCREWS
3 1 ARCED FEEDBACK ASSEMBLY
4 4 M8X1.25X16 SOCKET SCREWS
5 4 5/16"-18UNCX0.62" SOCKET SCREWS
NOTE:
DVC6200 uses 4 M8 socket screws (key 4) for mounting onto arced feedback
DVC2000 uses 3 M8 socket screws (key 4) for mounting onto arced feedback assembly.
(Window Mount)
DESCRIPTION

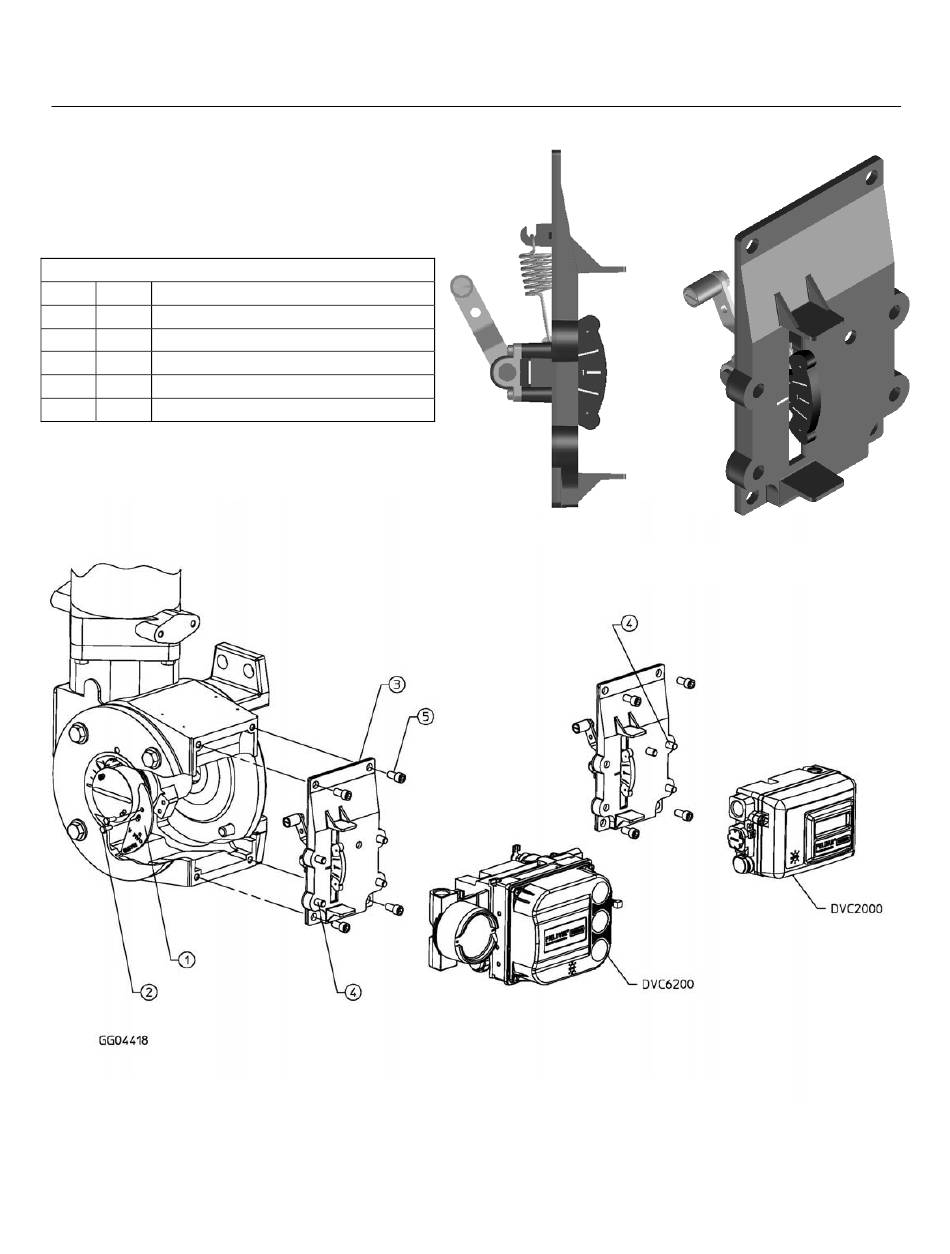

Figure 2. Mounting Parts Identification
GE42132
Figure 1. Arced Feedback Assembly
For 1051/1052 Size 40-70
Mounting Instructions
D103449X012
May 2010
assembly.
