Alert-it Companion Mini Handbook page 8

Quickstart
Now ensure that the "Monitor" LED flashes green
`
every time the radio product transmits (Every 8
seconds for a Safelink enabled product like the
Companion mini)
Ensure the "Alarm" LED flashes and the Wired output
`
activates when the monitor is triggered.
See page 16 for details
Pull out the 12v DC jack to simulate a power cut. The
`
device should continue to operate as expected on the
battery backup. See page 16 for details of LED status
Fix the Connect-iT's back panel to a wall using the
`
provided screws OR sticky pads
PLEASE NOTE:
We highly recommend screws are used, as the sticky
pads can slowly work their way loose over time
unless the surface is perfectly clean and flat
Clip the Connect-iT onto the back panel
`
Route the cables to ensure they do not pose an
`
entanglement or trip hazard
You can now return the monitors to their intended
`
locations and test the system works as expected. i.e
Monitors are within range of each other and trigger
your system/nurse call
8

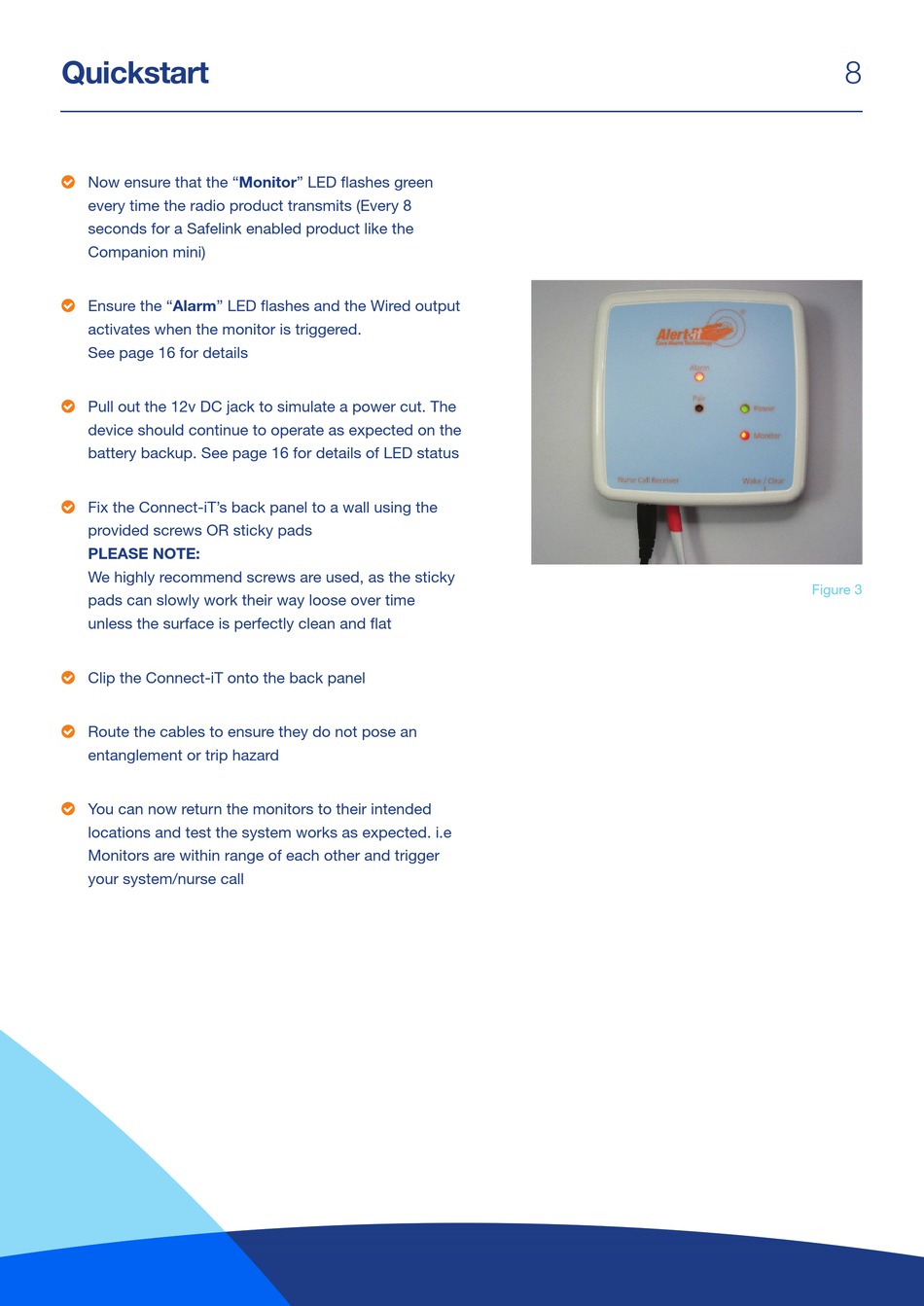

Figure 3
