Summary of Contents for Zenit blue

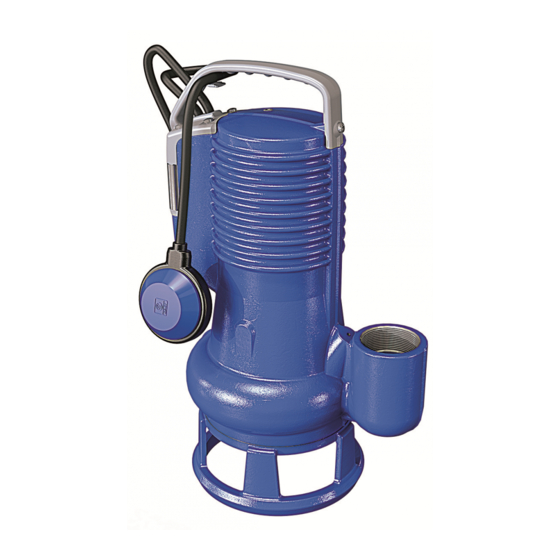

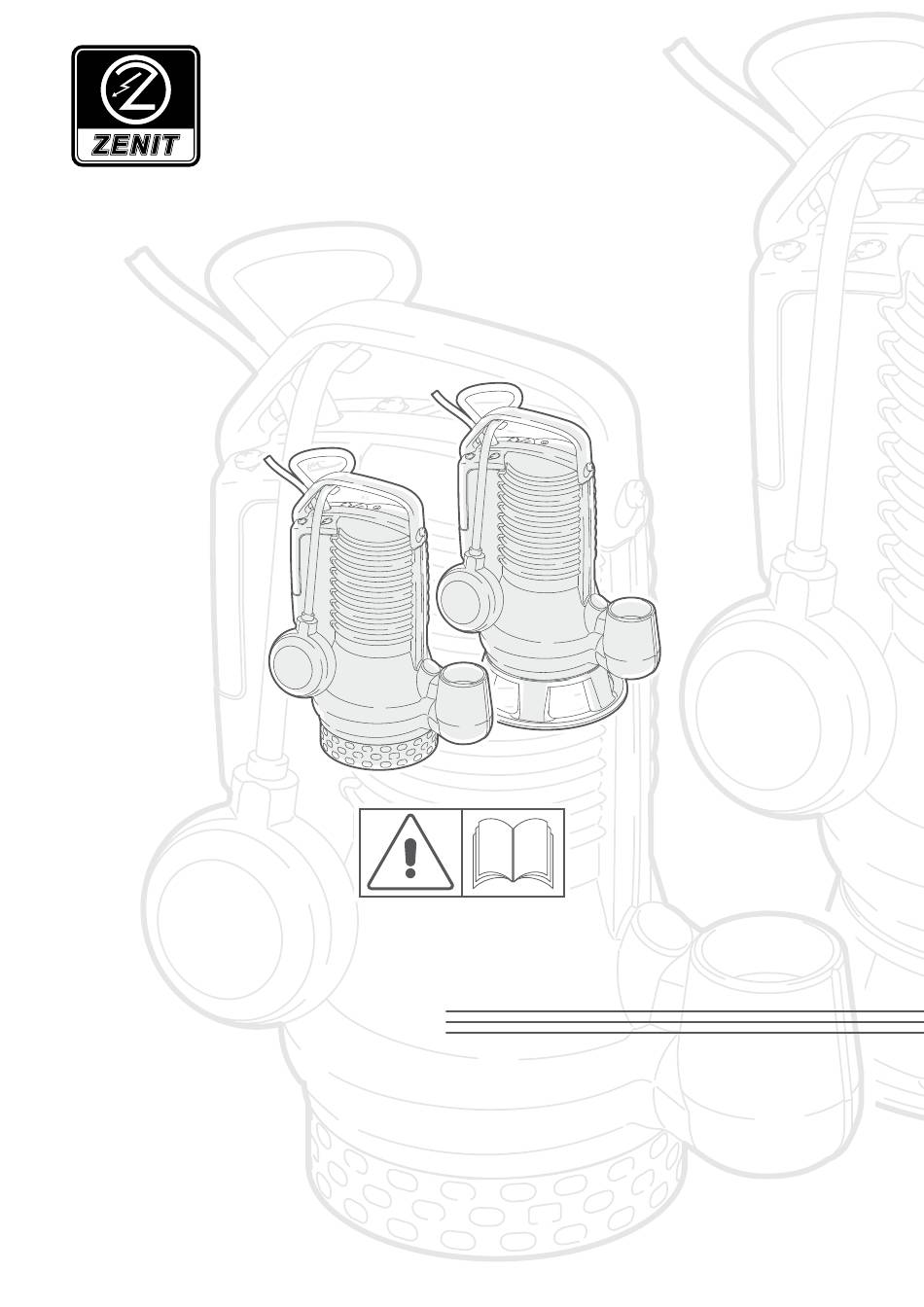

  • Page 1 - bluePRO IECEx use and maintenance booklet safety instructions...
  • Page 2: Eu Declaration Of Conformity

    N° CN/CQM/QAR10.0003/04 performed by CQM - China Quality Mark Certification Group Co., Ltd. The manufacturer ZENIT ITALIA S.r.l. operates in accordance with Quality Control System procedures which comply with the UNI EN ISO 9001 standard, accredited by DNV with certificate no. CERT-00660-95-AQ-IND-SINCERT We also declare that the technical file for the electric pump is available at: Zenit Italia S.r.l.
  • Page 3: Use And Maintenance Instructions

    In the event of damage, stop the pump immediately. Contact an authorised Zenit technical service centre for repairs and always request the use of original spare parts. Failure to comply with the above could result in impaired pump safety, in addition to forfeiture of the warranty.
  • Page 4 use and maintenance booklet - safety instructions better together WARNING: Check that the submersible pump has been primed. In some cases, an air bubble may form in the upper part of the pump body, which prevents liquid pumping. 1.7.1 Mobile post (Fig. 1) Using a hose union, connect the delivery pipe to a hose with an internal reinforcement coil and a diameter which is the same size as or larger than the electric pump outlet.
  • Page 5 2.1.1 Group II apparatus for gas The non sparking apparatus IECEx and ATEX Blue pumps have the following protection types against the risk of explosion, the first one concern pumps without thermal protection and the second one concern pump with thermal protection inside:...
  • Page 6 use and maintenance booklet - safety instructions better together Group of the equipment. Group II: electrical equipment for use in places with an explosive gas atmosphere other than mines Category of the equipment subject of certification, in presence of potentially explosive atmospheres of Gas, Vapors, Mist (G). The equipment can be installed in ZONE 2.
  • Page 7 use and maintenance booklet - safety instructions better together 2.7 Inspections and maintenance of pumps The inspections and maintenance of the pump shall be executed in compliance with the criteria of the IEC 60079-17 standard. The electrical connection terminals must be tightened fully to avoid high contact resistances and consequential overheating. Care must be taken to ensure that the insulation distances on air and on the surfaces between the conductors are maintained, as established by the standards.
  • Page 8 Motor case Bleeder valve (*) Stator Support washer Bearing Shaft with rotor Lower bearing holder Mechanical seal Sealing flange Impeller bushing Impeller Suction flange Foot base support Grid (*) PRO version only DR blue DR bluePRO DG blue DG bluePRO...
  • Page 9 use and maintenance booklet - safety instructions better together GRbluePRO APbluePRO Handle Plate Cable Cable camp Screws O-Ring Cable gland system Cable fastener Cable gland support Capacitor Motor case Stator Support washer Bearing Shaft with rotor Lower bearing holder Mechanical seal Sealing flange Impeller Gasket...
  • Page 10: Overall Dimensions

    - safety instructions better together 4. Overall dimensions DR Blue 40-50-75-100 DR BluePRO 150-200 DR BluePRO 50-75-100 DG Blue 40-50-75-100 DG BluePRO 150-200 DG BluePRO 50-75-100 GR BluePRO 100-150-200 AP BluePRO 100-150-200...
  • Page 12 Cod. 27270100700400000 zenit.com better together Rev. 4 - 10/02/17...
