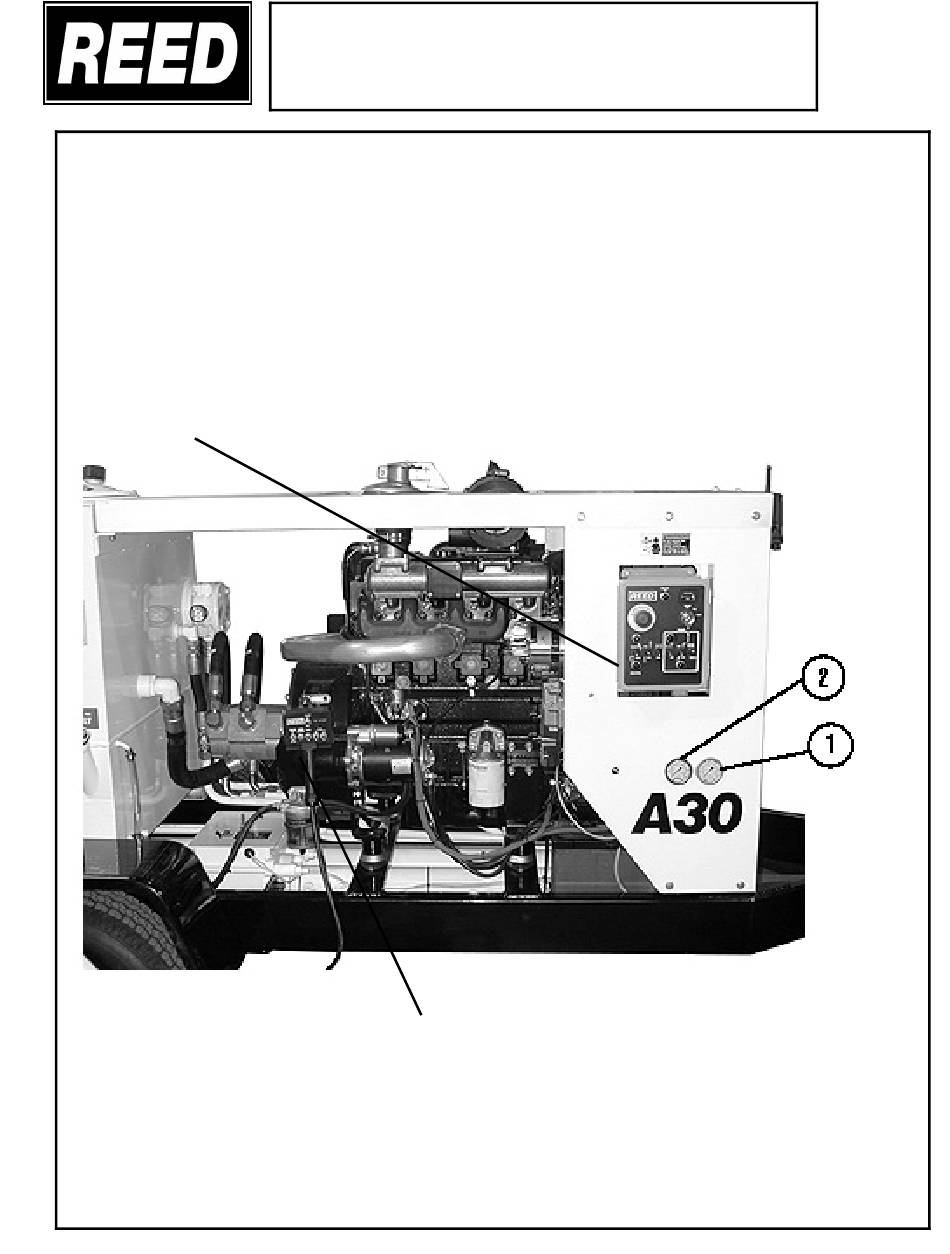

The controls for operation of the MODEL A30HP can be found and are located on the right
(curb) side of the machine. A control box is provided and contains all the main function
instruments, switches, and indicators. Hydraulic gauges are on right portion of control box.
Each location or panel is dedicated to the operation of certain functions. These are noted
herein:
SEE NEXT PAGE FOR MORE DETAILS
1.
PRESSURE GAUGE – 6000 PSI
This hydraulic pressure gauge is used to indicate the main system hydraulic pressure
being applied to the hydraulic cylinder pistons of CYL A OR CYL B on the forward stroke.
REVISION:
REED ROCK MASTER A30HP
TRAILER CONCRETE PUMP
CONTROL FAMILIARIZATION
SEE REMOTE CONTROL
FAMILIARIZATION PAGE
FOR MORE DETAILS
SEE RADIO REMOTE CONTROL
FAMILIARIZATION PAGE
FOR MORE DETAILS
OPER.
PAGE
03
