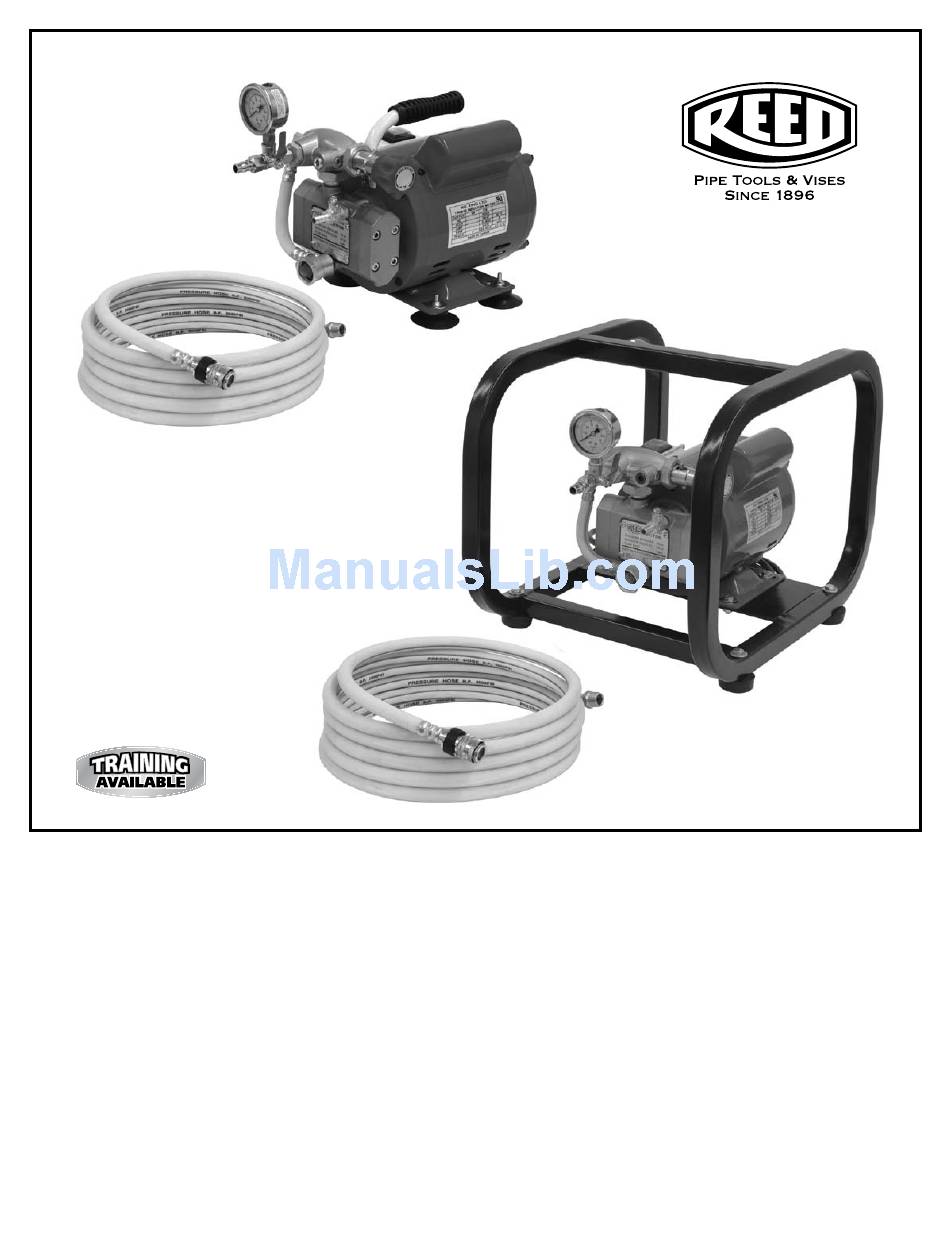

Item Code: 08170
and 08171
Electric
Hydrostatic Test Pumps
Operator's Manual
EHTP500, EHTP500C,
EHTP500E, EHTP500CE Models
Item Code: 08175
and 08176
REED MANUFACTURING COMPANY
1425 West Eighth St.
PHONE: 800-666-3691 or 814-452-3691 Fax: 800-456-1697 or 814-455-1697
www.reedmfgco.com
SAVE THESE
INSTRUCTIONS!
Erie, PA 16502 USA
111-58170
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for REED EHTP500
Summary of Contents for REED EHTP500
- Page 1 08171 Item Code: 08175 and 08176 Electric Hydrostatic Test Pumps Operator’s Manual SAVE THESE EHTP500, EHTP500C, INSTRUCTIONS! EHTP500E, EHTP500CE Models REED MANUFACTURING COMPANY 1425 West Eighth St. Erie, PA 16502 USA PHONE: 800-666-3691 or 814-452-3691 Fax: 800-456-1697 or 814-455-1697 www.reedmfgco.com...
-
Page 2: Operating Instructions
HYDROSTATIC PUMP OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS: 3. Plug in the cord and turn on the pump to pressurize the 1. Prime the Pump. system to the desired test pressure. A. From a Pressurized Supply A . Pressure can be adjusted by turning the pressure • Connect a garden hose to the garden hose fitting, adjustment knob on the side of the pump. Turning making sure the attachment is snug. -
Page 3: Pump Specifications
Pump Specifications Adjustable Pressure up to a Maximum of 500 psi Safety and Precautionary Instructions: (34 bar - kg/cm • Do not use a damaged or worn High Pressure Hose. 2 gallons per minute (7 liters/min) • Do not run the pump without a water supply. Air bleed-off valve (for easier pump priming) • Do not use the pump to fill the system to be tested with water. Fill the system prior to attaching the pump, then attach the pump and pressurize the system. Parts List EHTP500 EHTP500C • Before storing the pump, flush it with clean water and EHTP500E EHTP500CE then operate it with a solution of water and food grade ITEM DESCRIPTION ITEM CODE ITEM CODE QTY. propylene glycol to protect and lubricate the internal parts. BYPASS HOSE... - Page 4 Reed Lifetime Warranty Reed Hand Tools are for the professional trade and are warranted against all failure due to defects in workmanship and materials for the normal life of the tool. FAILURES DUE TO MISUSE, ABUSE, OR NORMAL WEAR AND TEAR ARE NOT COVERED BY THIS WARRANTY. Power units for Universal Pipe Cutters, Saw It , electric test pumps, ® and threading power drives are warranted for a period of one year from date purchased. NO PARTY IS AUTHORIZED TO EXTEND ANY OTHER WAR- RANTY. NO WARRANTY FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL APPLY. No warranty claims will be allowed unless the product in question is received freight prepaid at the Reed factory. All warranty claims are limited to repair or replacement, at the option of the company, at no charge to the customer. REED IS NOT LIABLE FOR ANY DAMAgE OF ANY SORT, INCLUDINg INCIDENTAL AND CON- SEqUENTIAL DAMAgES. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion may not apply. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
