3.5 BVOCTSINT PC I
3.6 E
OmniCarePLUS issue 1
The PC Interface will normally be wall mounted, and must be
installed within 50 meters of the network Hub and 5 meters of
the Embedded PC.

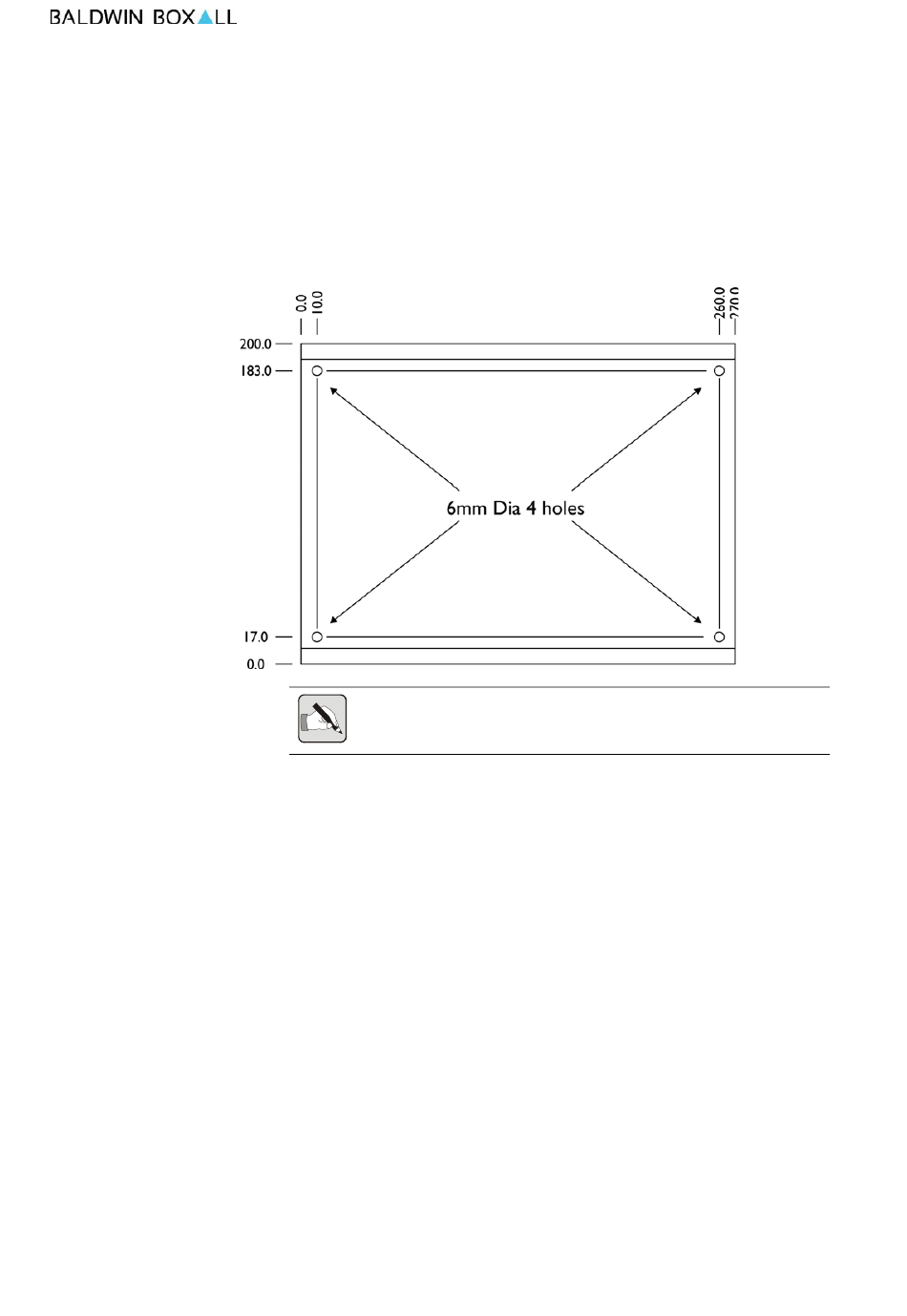

Figure 3.3 — BVOCTSINT PC Interface Mounting Holes
N : It is possible to fit the PC Interface inside the Network Hub if
OTE
required.
Connections and terminations between the BVOCTSINT PC
Interface, the network hub and the embedded PC will be supplied
within the system drawing pack.
PC
MBEDDED
The embedded PC is a desk mounted unit that must be located
within 2meters of the Network Control Station. It will require a
local mains supply.
Connections and terminations between the Embedded PC, the
BVOCTSINT PC Interface and the Network Control Station will
be supplied within the system drawing pack.
NTERFACE
OmniCarePLUS Multi-Exchange EVC
Installation Instructions
15
