3.2.5 Network Connection

3.3 O
OmniCarePLUS issue 1
The Omnicare Plus panel differs from the standard panel as there
are Network Cables (copper or fibre) connected to BVRDCIF,
BVRDFIF or BVRDFIFS modules in additional to the Omnicare
Loop Cabling.

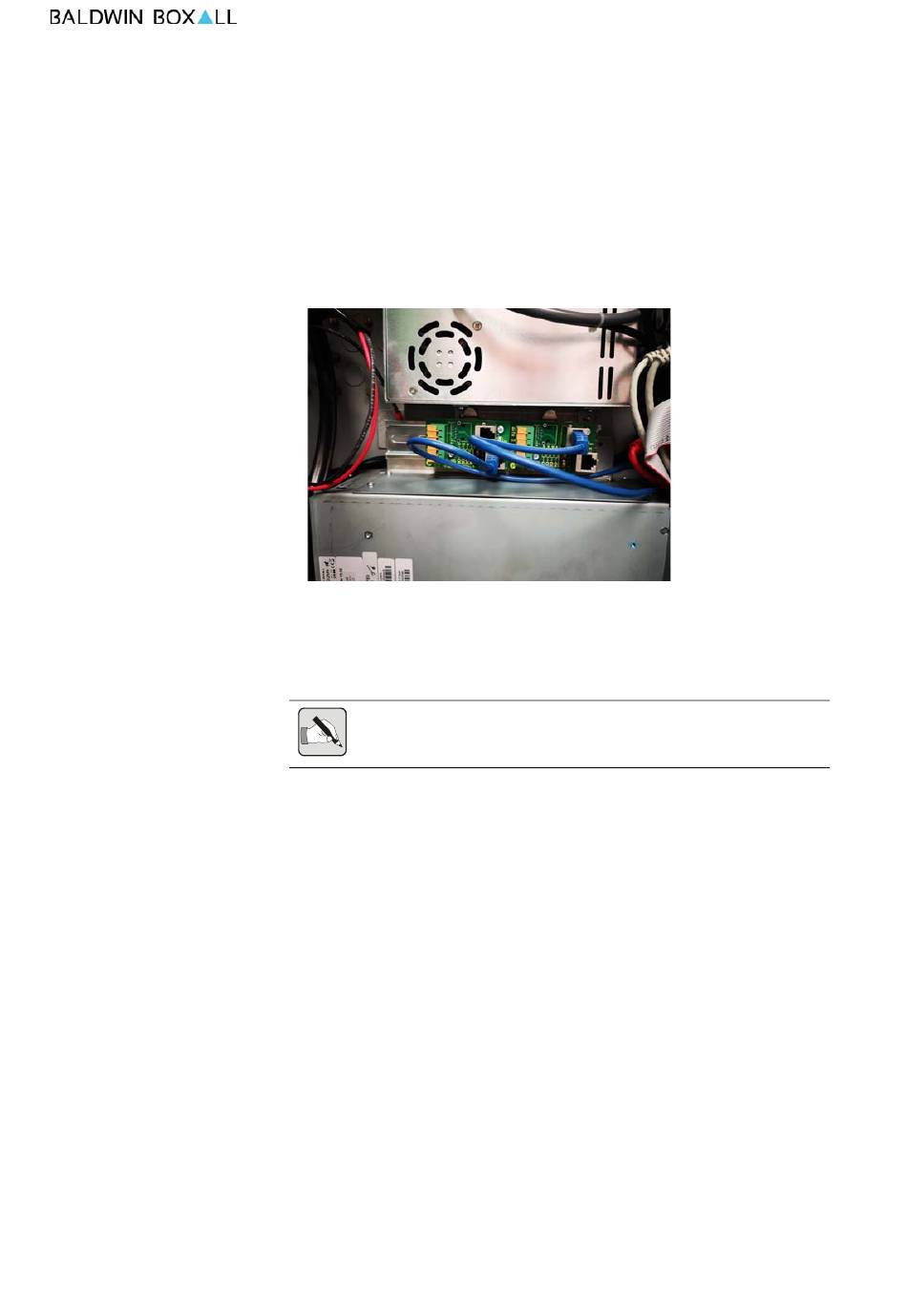

Figure 3.1 — Internal view of the Local Control Panel
There will be two connections for the OmniCarePlus network
loop (BVRDCIF copper network interface units are shown in
Figure 3.1).
N : It is not necessary for these network connections to be made to
OTE
commission the Local Control Point as a stand alone system.
C P
MNI ARE
I
NSTALLATION
Please refer to the BVRDNET Installation Manual for details on
network cables and connections.
Each OmniCare Plus Local Control Point and each Network Hub
contains a BVRD2M4 router and either BVRDCIF (copper
interface units) or BVRDFIF / BVRDFIFS (multimode / single
mode fibre optic interface units) for network connectivity. The
network cables must be Fire Rated, Enhanced cable configured as
a loop.
N
LUS ETWORK
OmniCarePLUS Multi-Exchange EVC
Installation Instructions
13
