1.2 T
ECHNICAL

1.2.1 Local Control Panels

Control Panels
System self-monitoring
Remote signalling of fault
Indicators
Transmission capability
Power supply
Power consumption (VA)
Dimensions (W x H x D)
Bezel dimensions (W x H x D) 461mm x 506mm x 25mm (8-64 way)
Bezel Cutout dimensions W x H 420mm x 465mm (8-64 way)
Knockouts
Security
Weight (not including batteries) 26kg (8-64 way)
Temperature Range
Humidity Range
Network Connections
2
S
PECIFICATIONS
Please refer to the OmniCare installation Manual for the majority
of Technical Specifications. Where there are OmniCarePLUS
specific items they will be detailed within this manual.
BS5839 compliant
Volt-free contact, closing/opening set on installation
Occupied, call, fault, power, charger, speech level
Half-duplex (DRS remotes) either voice switched or by
PTT (controlled at the Control Panel).
Full Duplex (Fire Telephones)
110V / 230V AC autoswitching, battery backed with built
in batteries & charger
10VA + 1VA per remote connected
410mm x 455mm x 200mm (8-64 way)
20mm diameter in top and top/rear
Lockable glazed door
-10 to +30°C (storage and operating)
95% Non Condensing
Either Copper (4 cores) or Fibre (single or multimode)

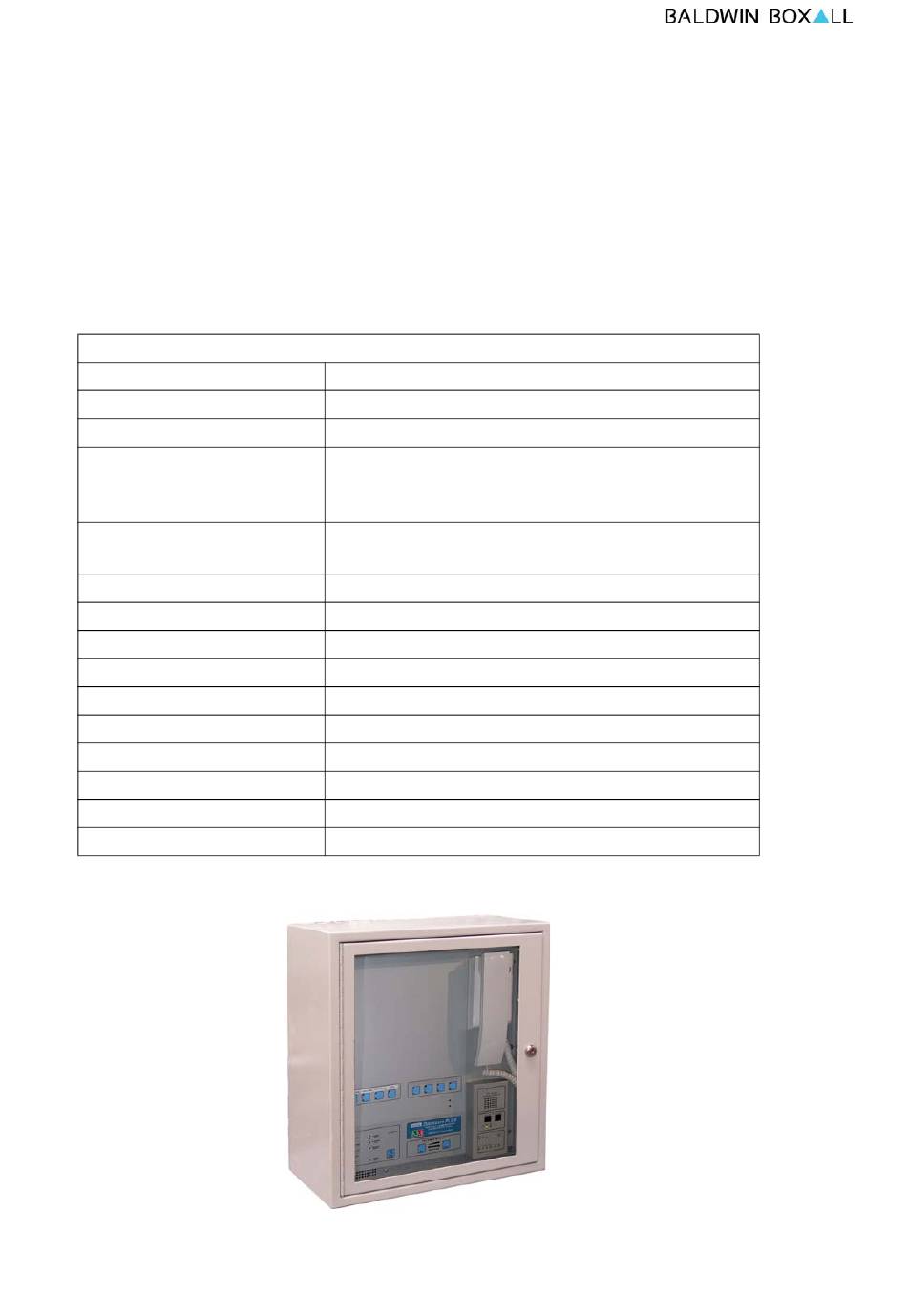

Figure 1.1 — Typical OmniCarePlus Local Control Panel
