ADC Straight Connector BNC-26N Specification Sheet page 3

BNC-26N Straight Connector for 0.6/2.8 Cables
Specifications

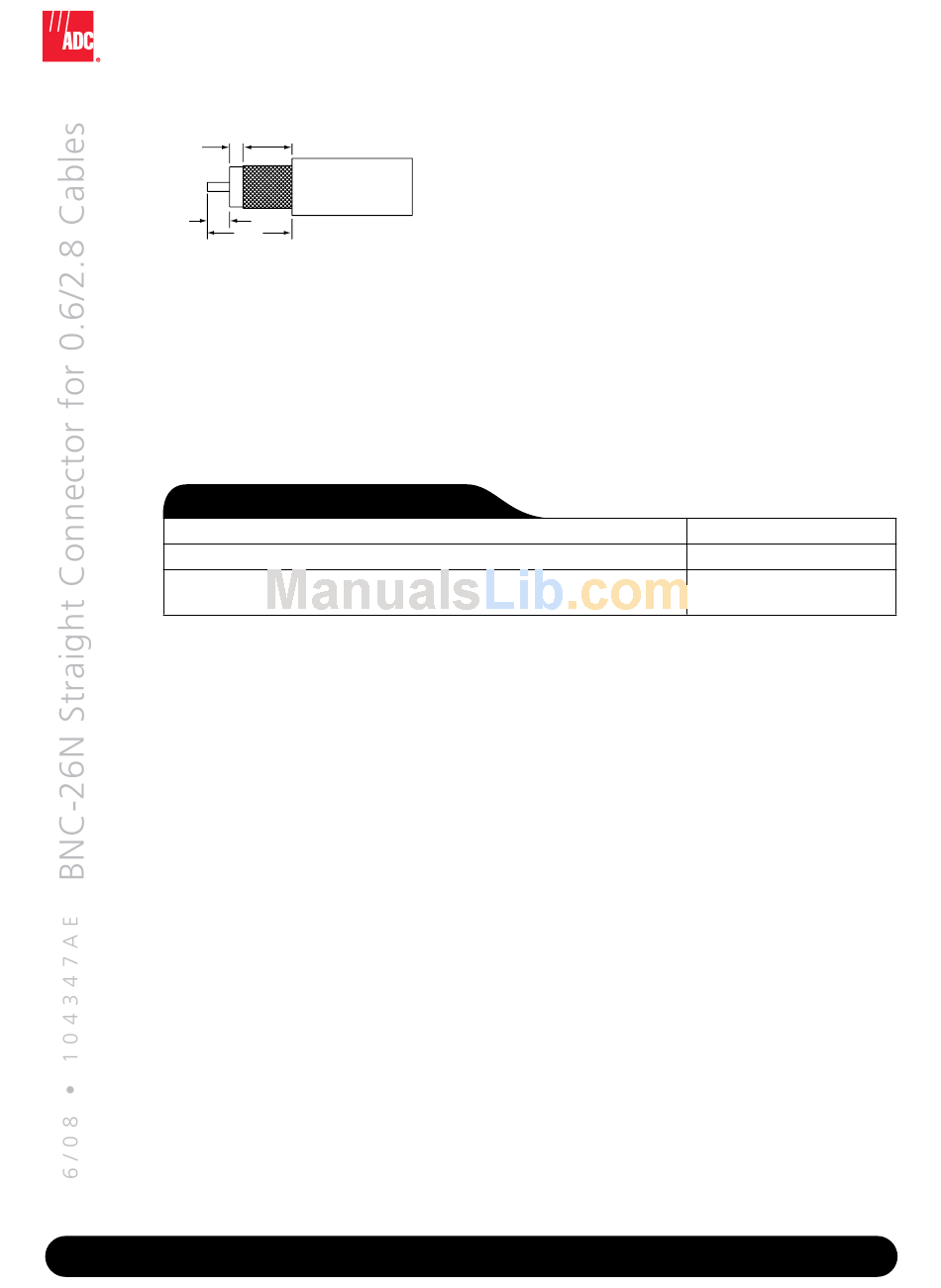

STRIP DIMENSIONS/CuT LENgTH
.094"
.344"
.156"
.594"
CRIMP DIMENSIONS
Center Conductor:
Crimp Sleve:
TOOLINg INFORMATION
Crimp Tool Frame:
Die Set:
Optional 12-Point Crimp Tool:
Strip Tool:
O r d e r i n g I n f o r m a t i o n
Description
Single-packed straight BNC connector with indicator notch for 0.6/2.8 cables
Bulk 100-pack straight BNC connector with indicator notch for 0.6/2.8 cables;
bulk packages shipped with extra pins and sleeves in molded plastic snap tray
w w w . a d c . c o m
.042 (1.07 mm) Hex or 12-point
.197 (5.00 mm) Hex
WT-3 or WT-2
WD-3 or WD-4
WT-C12
STC-13B
• + 1 - 9 5 2 - 9 3 8 - 8 0 8 0
Catalog Number
• 1 - 8 0 0 - 3 6 6 - 3 8 9 1
BNC-26N
BNC-26N-B
