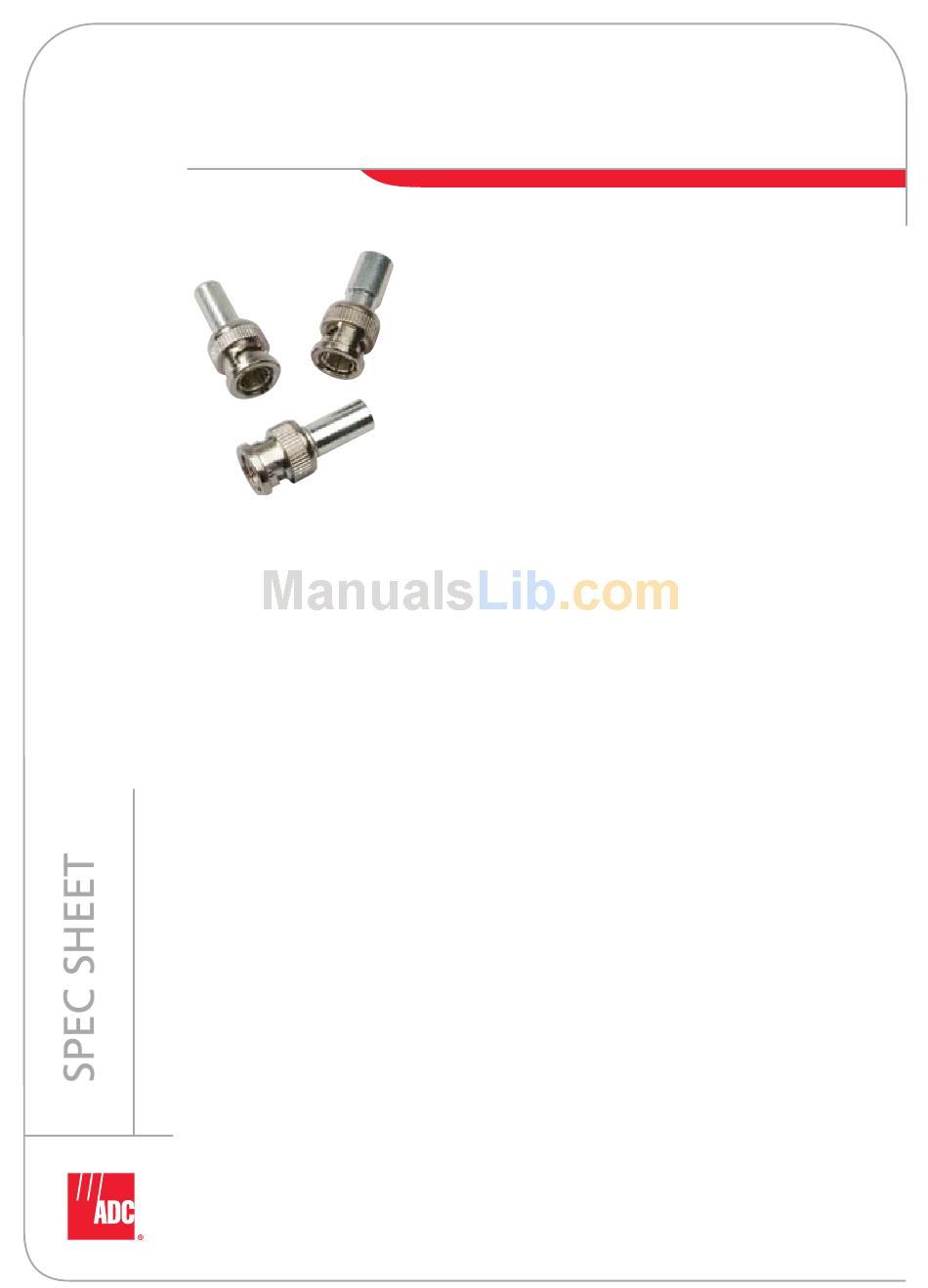

BNC-26N Straight Connector
For 0.6/2.8 Cables
ADC's BNC connectors are the most reliable and universally accepted method of terminating
coaxial cable in the market today. Outstanding electrical performance (up to 3 GHz) is achieved
by unique design elements in the industry's truest 75 Ohm connector. Precision-molded insulators
with locking gold-plated center conductors ensure true 75 Ohm characteristic impedance.
Innovative features result in significant reduction of impedance mismatch throughout the network
and improved transmission reliability in digital applications.
Features:
• True 75 ohm characteristic impedance through the entire connector
• Outstanding electrical performance to 3 GHz
• Tarnish-resistant, nickel-plated body and bayonet
• Gold-plated, locking center conductor
• Compatible with select competitive crimp tools and die sets
• Meets or exceeds all requirements in MIL-C39012 requirements
• Bulk packaging available
w w w . a d c . c o m
•
+ 1 - 9 5 2 - 9 3 8 - 8 0 8 0
•
1 - 8 0 0 - 3 6 6 - 3 8 9 1
Advertisement
Related Manuals for ADC Straight Connector BNC-26N
Summary of Contents for ADC Straight Connector BNC-26N
- Page 1 BNC-26N Straight Connector For 0.6/2.8 Cables ADC’s BNC connectors are the most reliable and universally accepted method of terminating coaxial cable in the market today. Outstanding electrical performance (up to 3 GHz) is achieved by unique design elements in the industry's truest 75 Ohm connector. Precision-molded insulators with locking gold-plated center conductors ensure true 75 Ohm characteristic impedance.
-
Page 2: Specifications
BNC-26N Straight Connector for 0.6/2.8 Cables Specifications ELECTRICAL Characteristic Impedance: Voltage Rating: Insertion Loss: Return Loss: Contact Resistance: Insulation Resistance: MECHANICAL Mechanical Durability: Center Contact Retention: Coupling Mechanism: Cable Pulloff Force: Cable Bend and Twist: Force to Engage/Disengage: Interface Dimension: ENVIRONMENTAL Thermal Shock: Moisture Resistance:... - Page 3 BNC-26N Straight Connector for 0.6/2.8 Cables Specifications STRIP DIMENSIONS/CuT LENgTH .094" .344" .156" .594" CRIMP DIMENSIONS Center Conductor: Crimp Sleve: TOOLINg INFORMATION Crimp Tool Frame: Die Set: Optional 12-Point Crimp Tool: Strip Tool: O r d e r i n g I n f o r m a t i o n Description Single-packed straight BNC connector with indicator notch for 0.6/2.8 cables Bulk 100-pack straight BNC connector with indicator notch for 0.6/2.8 cables;...
- Page 4 Specifications published here are current as of the date of publication of this document. Because we are continuously improving our products, ADC reserves the right to change specifications without prior notice. At any time, you may verify product specifications by contacting our headquarters office in Minneapolis. ADC Telecommunications, Inc. views its patent portfolio as an important corporate asset and vigorously enforces its patents. Products or features contained herein may be covered by one or more U.S. or foreign patents. An Equal Opportunity Employer...
