Instruction Manual

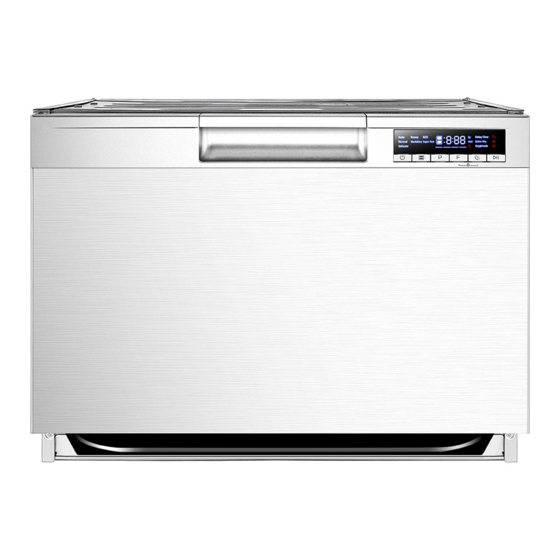

SINGLE DRAW DISHWASHER
Model OSD607X

Advertisement

loading
Need help?

Need help?

Do you have a question about the OSD607X and is the answer not in the manual?

Questions and answers

Related Manuals for Omega OSD607X

Summary of Contents for Omega OSD607X

  • Page 1 Instruction Manual SINGLE DRAW DISHWASHER Model OSD607X...
  • Page 2 Thank you for purchasing an Omega appliance Tailored for the modern aesthetic and lifestyle of busy people, your new Omega Appliance will make a welcome addition to the family. Omega caters to style-savvy customers who look for balance between stunning form and clever function.

  • Page 3: Table Of Contents

    The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. Due to continual product development, Omega reserves the right to alter specifications and appearances without notice.

  • Page 4: Important Safety Warnings

    Important Safety Warnings When using electrical appliances, in order to reduce the risk of fire, electric shock, and/or injury to persons, basic safety precautions should always be followed, including This appliance is intended to be used in household and similar applications , such as: a.

  • Page 5: Appliance Details

    Appliance Details IMPORTANT: To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Product Overview...

  • Page 6: Installation

    Installation...
  • Page 7 Installation Before Installation Parts supplied Ensure that the inner end of the tab is protruding by one material thickness Mounting brackets (4) Screws (4) Moisture protection tape (1) Prepare the cavity The cavity will need to conform to the dimensions in the diagram. The water supply and power point for the appliance cannot be in the dishwasher cavity.
  • Page 8 Installation Prepare the cavity Dishwasher must be level for proper dish rack operation and wash performance. If need be, adjust the feet in each corner to ensure the product sits evenly on the floor, and is level both left to right and front to back. This can be checked by using a spirit level on an open drawer.
  • Page 9 Installation Fit the mounting bracket Drawer dishwashers are unstable until they are secured to their surrounding cabinetry. Study the two options for securing offered and choose one that suits your cabinetry. Fit the mounting brackets supplied to the top or sides of the product, ensuring the locking tab effectively retains the bracket in place. Adjust the tabs if needed.
  • Page 10 Installation Fitting the dishwasher Position the dishwasher in the cavity so the drawer fronts are in line with the adjacent cabinetry. Draw the hoses and power cord through the opening as you slide the product in. Connection of the drain hose There are two recommended options for connecting the drain hose.
  • Page 11 Installation Secure the product in place With suitable fasteners, fix the mounting brackets to the cabinetry.
  • Page 12 Installation Electrical Shock Hazard Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock. The installation of the pipes and electrical equipment should be done by professionals. For personal safety: Do not use an extension cord or an adapter plug with this appliance. Do not, under any circumstances, cut or remove the earthing connection from the power cord.

  • Page 13: Operating Instructions

    Operating Instructions QUICK USER GUIDE Starting A Wash Discard scraps Load dishes carefully Scrape large food particles off and For better washing result, place the dishes properly avoiding any contact remove any foreign objects. or overlapping between them. Check spray arm Add detergent and check rinse aid Ensure there are no items blocking If the “...
  • Page 14 Operating Instructions After The Wash The drying fan may continue to run for a set time after that the washing cycle is over or until the drawer is open. For best drying result, we recommend remove unloading the dishes when they have cooled down. NOTE: ...
  • Page 15 Operating Instructions Control Panel Operation (Button) Press this button to turn on your dishwasher, the screen will light up. Power For removing bad odor and moisture even when dishes are left longer time Dry & Fresh in the baskets. A) when selected this option will start to run at the end of the washing cycle, its indicator will blink.
  • Page 16 Operating Instructions Display Auto sensing wash, lightly, or heavily soiled crockery, with or without dried-on food. For the heaviest soiled crockery, such as pots, pans, casserole dishes and dishes that have been sitting with dried food on them for some time. For normally soiled loads, such as pots, plates, glasses and lightly soiled pans, standard everyday cycle.
  • Page 17 Operating Instructions Display For better drying result. (It can only be used with Intensive, ECO, Heavy, Extra Dry Wash&Dry, Delicate) If the “ ” indicator is lit, it means that no water is reaching the dishwasher. Warning If the “ ”...
  • Page 18 Operating Instructions Before using your dishwasher: Remove the larger residue from the wash items Load the basket Load the detergent Fill the rinse aid dispenser Basket Use Tips There are many ways to adjust the loading pattern of the basket. Removing the rear rack The rear rack can be removed to create a flat surface for such things as pots and pans.
  • Page 19 Operating Instructions Folding down the tines  The spacing between the tines can be increased by folding them down. This will help the loading of large bowls and deep pots and pans. Folding down the tines, the maximum size 290mm plates can be loaded.
  • Page 20 Operating Instructions Adjustable the cup racks You can adjust these cup racks to different heights independently: 1. Fold the cup racks if you need more space. 2. Remove the cup holder and installation an iron wire of different height to adjust the height of the cup holder.
  • Page 21 Operating Instructions Preparing and Loading Dishes  Consider buying utensils which are identified as dishwasher-proof.  For delicate items, select a program with the lowest possible temperature.  To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended.
  • Page 22 Operating Instructions  To avoid damage, glasses should not touch one another.  Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy. Note: Very small items should not be washed in the dishwasher as they could easily fall through the basket. Items will be hot ! To prevent damage, do not take glass and cutlery out of the dishwasher for around 15 minutes after the Caution...
  • Page 23 Operating Instructions Loading the cutlery basket You can place each knife, spoon, or fork separately into the spoon stands in the basket’s covers to prevent chipping and discoloration. Below image demonstrates the suggested placement of cutlery items. Match the numbers in the diagram to the numbers in the list of cutlery items above. Settings for Standards Wash Test AS/NZS 2007.1 Capacity: 7 place settings per drawer Wash Program: ECO Detergent quantity: 23.75g...
  • Page 24 Operating Instructions To shorten the drying time, the drawer can be opened approx. 50mm at the end of the wash cycle. This however is not compulsory. The wash load will dry completely given the drying time suggested in the Wash Cycle table. Adding Detergent The chemicals in Dishwasher Detergent are necessary to remove, dissolve and help dispose of all the soils from the wash load.
  • Page 25 Operating Instructions Undo the plug by turning it Fill the dispenser slowly to avoid anticlockwise. spillage. Each dispenser will take 300ml from empty. NOTE: It is important to clean up any spills rinse aid, as it will cause excessive foaming in the wash cycle. Close the plug by rotating it clockwise.
  • Page 26 Operating Instructions Wash Cycle Table The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also shows various information about the programs. ) Means: need to fill rinse into the Rinse-Aid Dispenser.
  • Page 27 Operating Instructions Note: AS/NZS 2007.1: This program is the test cycle. The information for comparability test in accordance with AS/NZS 2007.1. Starting A Cycle Wash 1. Close the drawer, press the Power button to switch on the machine. 2. Press the Program button to select the desired program. 3.
  • Page 28 Operating Instructions Adding Items While A Wash Is In Progress You can add items after the wash program has begun. However, if the machine no longer in the wash cycle, anything added may not be well washed, and other items soiled as well. Check that the machine is not rinsing. Follow these instructions: Press the Start/Pause button to pause the washing.

  • Page 29: Cleaning And Maintenance

    Cleaning and Maintenance Keeping your dishwasher clean improves its performance, reduces unnecessary repairs, and lengthens its life. WARNING: Disconnect the dishwasher from the power supply (unplug or switch off at the circuit breaker) and allow all its parts to cool before any cleaning or maintenance. External Care It’s best to clean spills on the outside of your dishwasher as they occur.
  • Page 30 Cleaning and Maintenance Lift up the handles and remove the Rotate the Cylinder filter counter- plate support clockwise. Lift the Cylinder filter upwards and out of under the basket. Pull forward the Fine filter. Tilt the Fine filter and remove it from under the basket.
  • Page 31 Cleaning and Maintenance Rotate the Cylinder filter clockwise to the close arrow. Spray arms If you are in a hard water area, it is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To clean the spray arms, follow the instructions below: With one hand raise the basket Slightly tilt the arm and remove...
  • Page 32 Cleaning and Maintenance Wash the arms in soapy and warm water and use a soft brush to clean the jets. After cleaning, replace it in the opposite direction. Caring for the Dishwasher Frost precaution If you live in a region that is where the inside temperature can drop below zero, care needs to be taken to avoid possible damage if the water in the dishwasher freezes.

  • Page 33: Troubleshooting Tips

    Troubleshooting Tips Before Calling For Service Before calling for service, check the following list for problems probable causes and what you can do. Problem Possible Causes What To Do Dishwasher won’t start No power. Check that the power cord is plugged in to a live power outlet and it is turned on.
  • Page 34 Troubleshooting Tips Problem Possible Causes What To Do Wash items are not fully Unloading dishwasher too soon. The drying cycle must be complete before the dishwasher is unloaded. Check the Display for end time. Insufficient Rinse Aid. Check for Low Rinse Aid Level warning and re fill if necessary.
  • Page 35 Product Specification Standard place settings 7 place settings Energy efficiency class Water consumption class Standard cleaning cycle Energy consumption of the standard cleaning cycle 0.367 kWh Water consumption of the standard cleaning cycle 6.6 liter Program duration of the standard cleaning cycle 170 mins Noise level 47 dB(A) re 1 pW...

  • Page 36: Australian & New Zealand Product Warranty Statements Of Standard Warranty Conditions

    The Damage which occurs during delivery or installation. product will be repaired or replaced at the option of Omega, and 10. Claims to product surface coating due to liquid or solid all costs of installation, removal, cartage, freight travelling spill-overs, accidental damage or damage caused from expenses and insurance are to be paid by the customer.
