Compaq ALPHASERVER DS10L Installation Instructions page 2

Install the Brackets
There are two threaded guide pins on the brackets: one on
the front of each bracket (which fits into the third hole
above base zero), and one on each rear side (also the third
hole above base zero, and right above the U-clips just
installed).
If the holes in your rackmount cabinet require smaller
guide pins, a second set of smaller pins has been included
in the kit. Replace the pins if necessary.
•
Insert the front guide pin into the third hole above
base zero. See Figure 3, . Push the rail in.
•
Insert the rear guide pin into the rear interior rail in
the hole right above the U-clip, aligning the screw
hole to the U-clip you installed on the interior rear
rail. Push the rail in toward the side of the
rackmount cabinet (see ).
•
Secure with one screw on each rear interior rail, at
the U-clips. See .

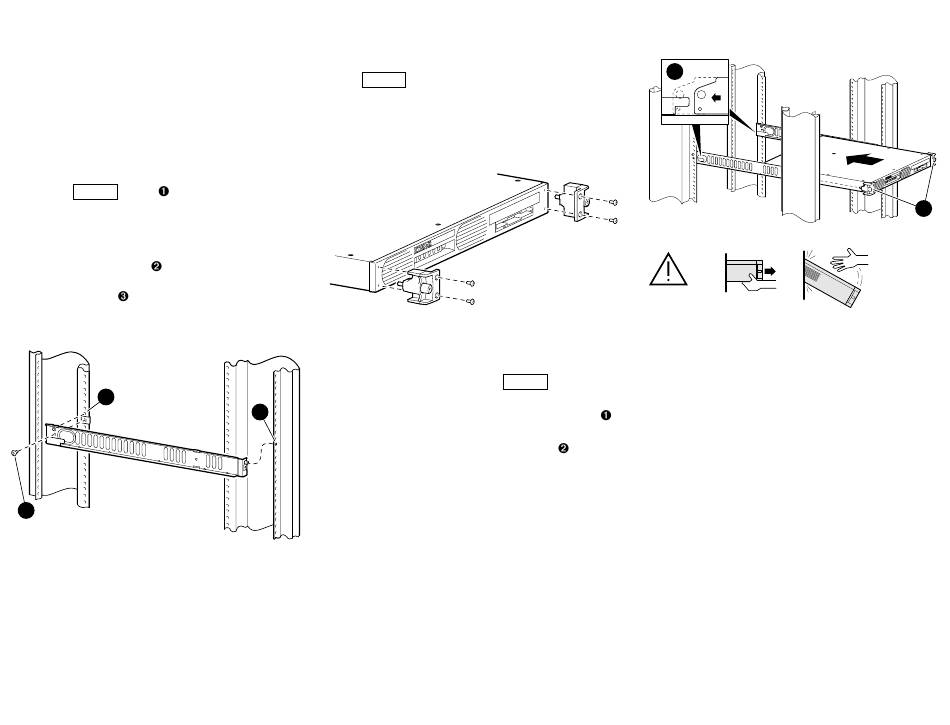

Figure 3 Installing the Brackets
2
3
Attach the Rackmount Ears
•
Align the two vertical holes located on the front edge
of the system with the two holes on the rackmount
ears (see Figure 4).
•
Using a Phillips screwdriver, screw the ears onto the
system, finger tight. Do not apply excessive force.
Figure 4 Attaching the Rackmount Ears
Insert and Secure the System
•
Using both hands, place the system onto the brackets
and push it back into the cabinet (see Figure 5).
•
Push the system back in to the rack. The brackets will
1
stop the system when the hinges contact the latch
•
Secure the system by tightening the captive screws
on the rackmount ears into the front rails
PK2290
PK2289
Caution: During removal, system box not tethered.
Attention: Pendant le déplacement, le boîtier système n'est pas fixé.
Precaución: Durante el traslado, no debe atarse la caja del sistema.
Achtung: Beim Entfernen ist das Systemgehäuse nicht gesichert.
.
Check Power and Secure Cables
.
•
•
•
2
Figure 5 Inserting the System
1
Connect the power cord.
Route the power cord to the designated power
distribution unit. If installing more than one system,
cable power cords together as appropriate.
Continue cabling (see AlphaServer DS10L Quick
Setup poster, shipped with your system, and also on
your User CD-ROM). When all cabling is complete,
connect power cord to the power controller unit.
2
PK2292
