- Page 1 TM XA R 433...
-
Page 2: Ce Conformity Declaration

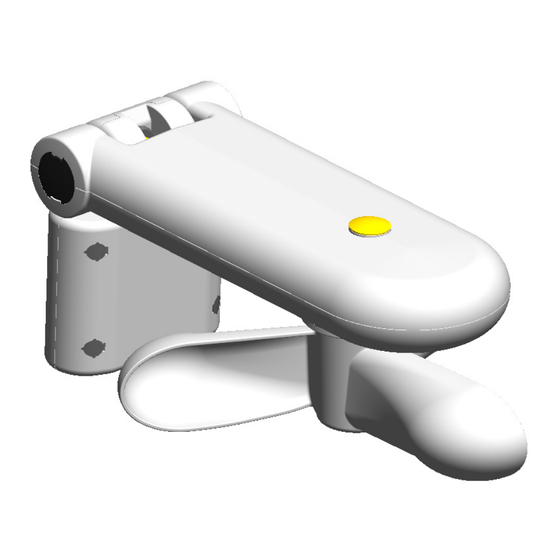

6) FAAC declines all liability caused by improper use or use other 18) Do not allow children or adults to stay near the product while than that for which the automated system was intended. - Page 3 TM XA R 433 (RADIO ANEMOMETER WITH SUN SENSOR) 1 DESCRIPTION AND DIMENSIONS 230 V Dimensions in mm Power supply 50/60 Hz Transmission frequency 433.72 Mhz Light sensor sensitivity 0,200 ÷ 50 Klux Wind sensor sensitivity 5 ÷ 60 SUN Km/h Use temperature -20 ÷ +55...
- Page 4 2.1 STANDARD FASTENING Fig.3 1) Remove both side screw covers (Fig.4 ref. a ) 2) Remove the front cover after having removed the four screw covers and the screws (Fig.5 ref. b ) 3) Move the anemometer cable in order to have the securing hole free.
- Page 5 PLACE THE RUBBER CABLE 230 V ~ GLAND CORRECTLY Fig.6 2.2 ALTERNATIVE FASTENING OPERATION Fig.7 1) According to figure 8 ref. a , remove the covers and unscrew the fastening screws. 2) Turn upward the part b in figure 8, keeping the four cover closing screws directed to the sun sensor. 3) Join both parts of the anemometer, select the desired angle and fit the two fastening screws but do not tighten them (Fig.
- Page 6 Fig.8 Fig.9 Fig.10...
- Page 7 230 V ~ PLACE THE RUBBER CABLE GLAND CORRECTLY Fig.11 3 MEMORY-STORING THE ANEMOMETER ON THE MOTOR 1) Supply power to the motor. 2) On an already memory-stored remote control press, within 10 seconds, the programming push-button for 2 seconds. 3) Within 5 seconds press the STOP/PREFERRED POSITION push-button on the same remote control 4) Within 5 seconds, simultaneously press both test push-buttons on the anemometer to be added.
- Page 8 PRESS ONE OF THE TWO TEST RADIO COMMUNICATION PUSH-BUTTONS (same function) SUN BLIND OPEN 4 OPERATION IN STANDARD MODE (factory default) The anemometer commands the up movement of the rolling shutter when strong wind or low light are present, and its down movement if light increases (if wind is present, the down movement is inhibited) After the wind sensor operation, the motor does not accept any command for 5 minutes.
- Page 9 4.2 WIND SENSOR ADJUSTMENT AFTER 15 MINUTES Fig.20 If you turn the trimmer clockwise, the up movement of the rolling shutter is only commanded if there is a higher wind intensity. When wind intensity decreases and light is present, the rolling shutter goes down. AFTER 15 MINUTES Fig.21...
- Page 10 PRESS ONE OF THE TWO RADIO COMMUNICATION TEST PUSH-BUTTONS (same function) ROLLING SHUTTER CLOSED ROLLING SHUTTER OPEN 5.1 FUNCTIONS Radio communication test push-buttons. If you press one of them, the up movement of the rolling shutter is commanded and the communication to the associated motor is checked. Wind sensor activation sensitivity adjustment Sun sensor activation sensitivity adjustment trimmer: trimmer: if you turn it clockwise, the anemometer if you turn it clockwise, the anemometer sends the commands to the associated motor with a higher sends the commands to the associated motor light intensity. with a higher wind intensity. Fig.22 5.2 SUN SENSOR ADJUSTMENT MORNING NIGHT EVENING If you turn the trimmer clockwise, the rolling shutter goes down with a higher light intensity and goes up with the same light intensity.
-
Page 11: Identification Plate
5.3 WIND SENSOR ADJUSTMENT AFTER 15 MINUTES Fig.25 If you turn the trimmer clockwise, the up movement of the rolling shutter is only commanded with a higher wind intensity. When wind intensity decreases and light is present, the rolling shutter goes down. AFTER 15 MINUTES Fig.26... - Page 12 Les descriptions et les illustrations du présent manuel sont fournies à titre indicatif. FAAC se réserve le droit d’apporter à tout moment les modifications qu’elle jugera utiles sur ce produit tout en conservant les caractéristiques essentielles, sans devoir pour autant mettre à...
