Summary of Contents for Midea RG58N2/BGEF
- Page 1 AIR CONDITIONER REMOTE CONTROLLER ILLUSTRATION Thank you very much for purchasing our air conditioner. Please read this owner's manual carefully before using your air conditioner. Make sure to save this manual for future reference. ENGLISH...
-
Page 2: Table Of Contents
CONTENTS Remote Controller Specifications ..................2 Function Buttons ........................3 Remote LCD Screen Indicators ................... 5 How To Use The Basic Functions ..................6 How To Use The Basic Functions ..................12 How To Use The Advanced Functions................13 NOTE: ●... -
Page 3: Remote Controller Specifications
Remote Controller Specifications Model RG58N2(B2H)/BGEF Rated Voltage 3.0V(Dry batteries R03/LR03 2) Signal Receiving Range Environment -5OC~60OC(23OF~140OF) ENGLISH... -

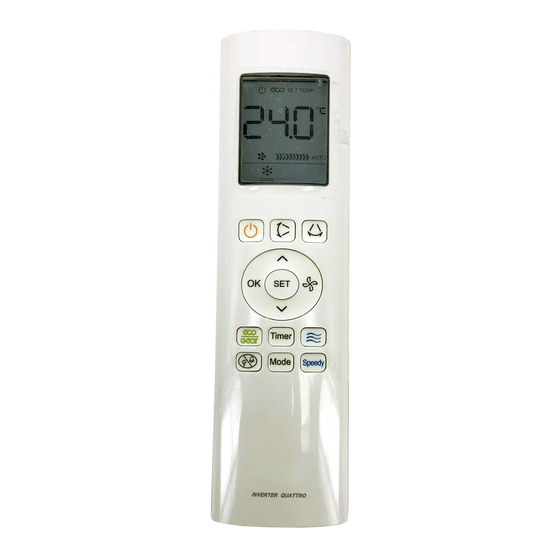

Page 4: Function Buttons
Function Buttons Before you begin using your new air conditioner, make sure to familiarize yourself with its remote control. The following is a brief introduction to the remote control itself. For instructions on how to operate your air conditioner, refer to the How to Use Basic Functions section of this manual. NOTE Please do not select HEAT mode if the machine you purchased is cooling only type. - Page 5 NOT SURE WHAT A FUNCTION DOES? TIPS FOR USING REMOTE CONTROL Refer to the How to Use Basic Functions and The remote control must be used within 8 How to Use Advanced Functions sections of meters of the unit. this anual for a detailed description of how to use The unit will beep when remote signal is your air conditioner.
-
Page 6: Remote Lcd Screen Indicators
Remote LCD Screen Indicators Note: All indicators shown in the figure are for the purpose of clear presentation. But during the actual operation only the relative functional signs are shown on the display window. ENGLISH... -
Page 7: How To Use The Basic Functions
How To Use The Basic Functions SETTING TEMPERATURE The operating temperature range for units is 16-30OC/60-86OF. You can increase or decrease the set temperature in 0.5OC/1OF increments. AUTO operation In AUTO mode, the unit will automatically select the COOL, FAN, HEAT or DRY mode based on the set temperature. - Page 8 How To Use The Basic Functions DRY operation(dehumidifying) Press the MODE button to select DRY mode. Set your desired temperature using the Temp or Temp button. Press the ON/OFF button to start the unit. NOTE: FAN SPEED can t be changed in DRY mode.
- Page 9 How To Use The Basic Functions HEAT operation Press the MODE button to select HEAT mode. Set your desired temperature using the Temp or Temp button. Press the FAN button to select the fan speed in a range of Au-100%, in conjunction with Temp or Temp button.
- Page 10 NOTE: When setting the TIMER ON or TIMER Setting the TIMER function OFF functions, up to 10 hours, the time will Your air conditioning unit has two timer-related increase in 30 minute increments with each press. functions: After 10 hours and up to 24, it will increase in 1 TIMER ON- sets the amount of timer after hour increments.
- Page 11 Setting both TIMER ON and TIMER OFF at the same time Keep in mind that the time periods you set for both functions refer to hours after the current time. For example, say that the current time is 1:00 PM, and you want the unit to turn on automatically at 7:00 PM. You want it to operate for 2 hours, then automatically turn off at 9:00 PM.
- Page 12 NOTE: The device could comply with the local national regulations. In Canada, it should comply with CAN ICES-3(B)/NMB-3(B). ● In USA, this device complies with part 15 of the FCC Rules. Operation is subject to the following ● two conditions: This device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation.
-
Page 13: How To Use The Basic Functions
How To Use The Basic Functions Press the SET button to enter the function ● setting, then press SET button or Temp Temp button to select the desired function. The selected symbol will flash on the display ● area, press the OK button to confirm. To cancel the selected function, just perform ●... -
Page 14: How To Use The Advanced Functions
How To Use The Advanced Functions ECO/GEAR function ( NOTE: This function is only available under COOL mode. • Press ECO/GEAR button to enter the energy efficient mode in a sequence of following: GEAR(75%) GEAR(50%) Previous setting mode * ECO ..ECO operation: •... - Page 15 How To Use The Advanced Functions FP function When the air conditioner operates under heating mode with the set temperature of 16°C(60°F), pressing button twice in two seconds will activate 8°C(46°F) heating. The indoor unit display shows "FP". For some units, press this button can activate 12°C heating feature, please refer to the"...
- Page 16 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. ENGLISH...
