WIRED REMOTE CONTROLLER
Owner's Manual
MODEL:
KJR-12B/DP(T)-F-1
KJR-12B/DP(T)-E-1A
KJR-12B/DP(T)-E-2
RCW8(P/N:7ACEL1706)
YORK-KJR-12B/DP(T)-E-2
WP-KJR-12B/DP(T)-E-2
IMPORTANT NOTE:
Read this manual carefully before
installing or operating your wired
remote controller. Make sure to save
this manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KJR-12B/DP-F-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Midea KJR-12B/DP-F-1

Summary of Contents for Midea KJR-12B/DP-F-1

  • Page 1 WIRED REMOTE CONTROLLER Owner’s Manual MODEL: KJR-12B/DP(T)-F-1 KJR-12B/DP(T)-E-1A KJR-12B/DP(T)-E-2 RCW8(P/N:7ACEL1706) YORK-KJR-12B/DP(T)-E-2 WP-KJR-12B/DP(T)-E-2 IMPORTANT NOTE: Read this manual carefully before installing or operating your wired remote controller. Make sure to save this manual for future reference.
  • Page 3 Table of Contents 1. Remote Control Buttons ......... 01 2. LCD Screen ............04 3. Basic Functions ............05 4. Troubleshoot your remote control ......15...

  • Page 4: Remote Control Buttons

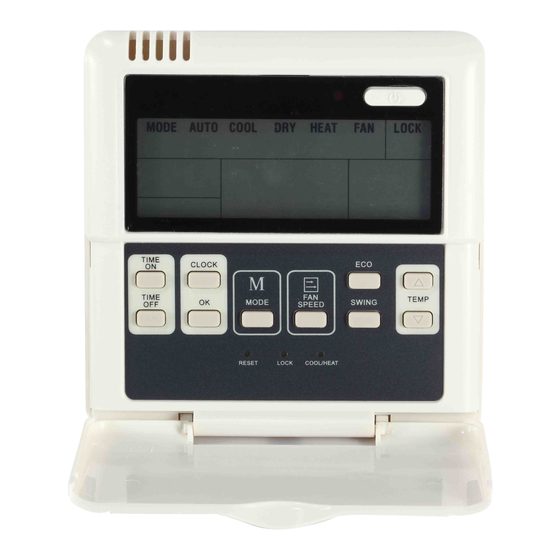

    Remote Control Buttons M O D E B U T T O N O N / O F F B U T T O N • Used to start/stop the air • Used to select the operating mode conditioner. AUTO COOL DRY HEAT FAN →...
  • Page 5 M O D E B U T T O N O N / O F F B U T T O N • Used to start/stop the air conditioner. • Used to select the operating mode AUTO COOL DRY HEAT FAN →...
  • Page 6 WARNING DO NOT remove the cover or touch the interior parts • of the remote control. DO NOT use sharp or pointed objects to press the • remote control buttons.

  • Page 7: Operation Mode

    LCD Screen Operation mode Follow me Displays the selected Displayed when the FOLLOW ME feature operating mode is activated ON/OFF Displayed when the air conditioner is Fan speed Displays the selected fan speed Lock Timer Displayed when the LOCK The “ON” sign lights up mode is on when the TIMER ON Temperature display...
  • Page 8 Basic Functions The following are instructions for using your air conditioner’s basic functions. AUTO Function In AUTO mode, the unit will automatically select the COOL, HEAT, FAN or DRY function based on the set temperature. 1 Press the MODE button, select AUTO. 2 Set your desired temperature using the UP ( ) and DOWN ) buttons.
  • Page 9 COOL/HEAT/FAN Function 1 Press the MODE button to select COOL, HEAT or FAN. 2 Set your desired temperature using the UP ( ) and DOWN ) buttons. 3 Press the FAN SPEED button to select the fan speed. 4 Press the ON/OFF button to start the unit. NOTE: In FAN mode, the temperature cannot be changed.
  • Page 10 DRY Function 1 Press the MODE button, select DRY. 2 Set your desired temperature using the UP ( ) and DOWN ) buttons. 3 Press the ON/OFF button to start the unit. NOTE: In DRY mode, the ECONOMY and FAN SPEED buttons cannot be used.
  • Page 11 FOLLOW ME Function The FOLLOW ME function enables the remote control to measure the temperature at its current location. When using AUTO, COOL, or HEAT functions, measuring ambient temperature from the remote control (instead of from the indoor unit itself) will enable the air conditioner to make sure that the temperature around you is optimized for your comfort.
  • Page 12 Setting Air Flow Direction 1 Press the SWING button to activate the swing function. Press this button again to set the louver in the position you want. 2 Press and hold the SWING button for three seconds to make the louver move continuously. NOTE: The swing function can only be used in SWING mode.
  • Page 13 TIMER Function Your air conditioning unit has two timer-related functions: TIMER ON – sets the amount of time after which the • unit will automatically turn on. (Delayed on) TIMER OFF – sets the amount of time after which the •...
  • Page 14 Example Setting unit to turn on after 2.5 hours TIME R TIME R Fig. 9 2. TIMER OFF Function The TIMER OFF function allows you to set a period of time after which the unit will automatically turn off, such as when you wake up.
  • Page 15 Setting both TIMER ON and TIMER OFF at the same time (Combined Timer Function) Keep in mind that the time periods you set for both functions refer to hours after the current time. For example, say that the current time is 1:00 PM, and you want the unit to turn on automatically at 7:00 PM.
  • Page 16 TIMER TIMER TIMER TIMER Fig. 11...
  • Page 17 The unit will now turn on after 6 hours (7:00 PM) and turn off again after 8 hours (9:00 PM). (See Fig. 11) Your remote display Timer is set to turn ON 6 hours from current time Timer is set to turn OFF 8 hours from current time Unit turns Unit turns...
  • Page 18 Troubleshoot Your Remote Control Symptoms Possible Causes Solution In AUTO mode, the fan speed is Check whether AUTO set automatically and cannot be mode is selected. The fan speed changed. cannot be changed. In DRY mode, the FAN SPEED Check whether DRY button is ineffective.
  • Page 19 The design and specifications are subject to change without prior notice for product improvement.Consult with the sales agency or manufacturer for details. QSXU-008AEN 16117100000240 20161102...
