REMOTE CONTROLLER

OWNER'S MANUAL

IMPORTANT NOTE:

Thank you for purchasing our air conditioner. Please read this manual carefully

before operating your new air conditioning unit. Make sure to save this manual

for future reference.

Table of Contents

Need help?

Do you have a question about the RG10A B2S/BGEF and is the answer not in the manual?

Questions and answers

Summary of Contents for Midea RG10A B2S/BGEF

Page 1 REMOTE CONTROLLER OWNER’S MANUAL IMPORTANT NOTE: Thank you for purchasing our air conditioner. Please read this manual carefully before operating your new air conditioning unit. Make sure to save this manual for future reference.
Page 2: Table Of Contents
Table of Contents Remote Controller Specifications ............02 Handling the Remote Controller ............03 Buttons and Functions ..............04 Remote Screen Indicators ..............06 How to Use Basic Functions ............07 How to Use Advanced Functions ..........10...
Page 3: Remote Controller Specifications
Remote Controller Specifications RG10A(B2S)/BGEF, RG10A(B2S)/BGEFU1, RG10A1(B2S)/BGEF,RG10A2(B2S)/BGEFU1, RG10A2(B2S)/BGCEFU1, RG10A2(B2S)/BGCEF, RG10A10(B2S)/BGEF. 3.0V( Dry batteries R03/LR03×2) -5°C~60°C(23°F~140°F) Quick Start Guide AUTO COOL HEAT FIT BATTERIES SELECT MODE SELECT TEMPERATURE AU-100% SELECT FAN SPEED PRESS POWER BUTTON POINT REMOTE TOWARD UNIT NOT SURE WHAT A FUNCTION DOES? Refer to the How to Use Basic Functions and How to Use Advanced Functions sections of this manual for a detailed description of how to use your air conditioner.
Page 4: Handling The Remote Controller
Handling the Remote Controller Inserting and Replacing Batteries NOTES FOR USING REMOTE CONTROL Your air conditioning unit may come with two The device could comply with the local national batteries(some units). Put the batteries in the regulations. remote control before use. In Canada, it should comply with •...

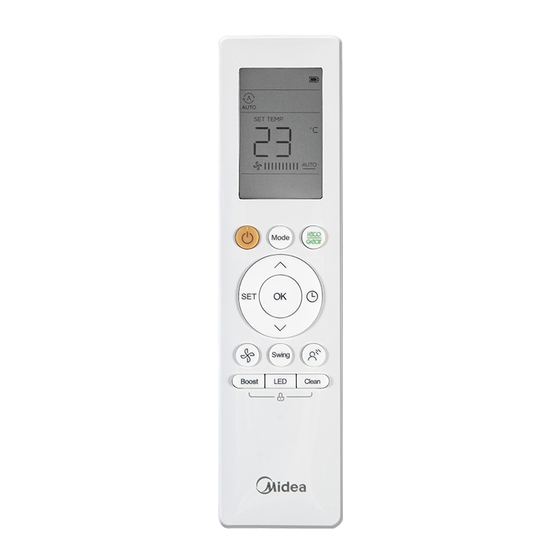

Page 5: Buttons And Functions
Buttons and Functions Before you begin using your new air conditioner, make sure to familiarize yourself with its remote control. The following is a brief introduction to the remote control itself. For instructions on how to operate your air conditioner, refer to the How to Use Basic Functions section of this manual.
Page 6 MODE ON/OFF Scrolls through operation modes Turns the unit on or off. as follows: AUTO  COOL  DRY  HEAT  FAN TEMP Increases temperate in 1°C (1°F) increments. ECO/GEAR Press this button to enter the Max. temperature is energy efficient mode in a 30°C (86°F).
Page 7: Remote Screen Indicators
Remote Screen Indicators Information are displayed when the remote controller is power up. Breeze Away display Active clean feature display Fresh feature display Sleep mode display Follow me feature display Wireless control feature display Transmission Indicator Low battery detection display(If flashes) Lights up when remote sends signal to indoor MODE display...
Page 8: How To Use Basic Functions
How to Use Basic Functions Basic operation ATTENTION! Before operation, please ensure the unit is plugged in and power is available. SETTING TEMPERATURE The operating temperature range for units is 16-30°C (60-86°F)/20-28 C(68-82 F). You can increase or decrease the set temperature in 1°C (1°F) increments.
Page 9 DRY Mode (dehumidifying) 1. Press the MODE button to select DRY. 2. Set your desired temperature using the TEMP or TEMP button. 3. Press the ON/OFF button to start the unit. NOTE: FAN SPEED cannot be changed in DRY mode. Swing Boost Clean...
Page 10: Setting The Timer
Setting the TIMER TIMER ON/OFF - Set the amount of time after which the unit will automatically turn on/off. TIMER ON setting Press TIMER button to initiate Press Temp. up or down button for Point remote to unit and wait 1sec, the ON time sequence.
Page 11: How To Use Advanced Functions
How to Use Advanced Functions Swing function Press Swing button Swing Swing The horizontal louver will swing up and down Keep pressing this button more than 2 seconds, automatically when pressing Swing button. the vertical louver swing function is activated. Press again to make it stop.
Page 12: Eco Operation
ECO/GEAR function Press X-ECO button to enter the energy efficient mode in a sequence of following: GEAR(75%) GEAR(50%) Previous setting mode ECO..Note:This function is only available under COOL mode. ECO operation: Under cooling mode, press this button, the remote controller will adjust the temperature automatically to 24 C/75 F, fan speed of Auto to save energy (only when the set temperature is less than 24 C/75 F).
Page 13: Silence Function
Silence function Keep pressing Fan button for more than 2 seconds to activate/disable Silence function(some units). Due to low frequency operation of compressor, it may result in insufficient cooling and heating capacity. Press ON/OFF, Mode, Sleep, Turbo or Clean button while operating will cancel silence function.
Page 14: Set Function
SET function Press the SET button to enter the function setting, then press SET button or TEMP or TEMP button to select the desired function. The selected symbol will flash on the display area, press the OK button to confirm. To cancel the selected function, just perform the same procedures as above.
Page 15 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. CR247-RG10A(B2S) 16117000002201 2020.7.31...
Page 16 技术要求：尺寸A5,大度 80克双胶纸装订，黑白...
