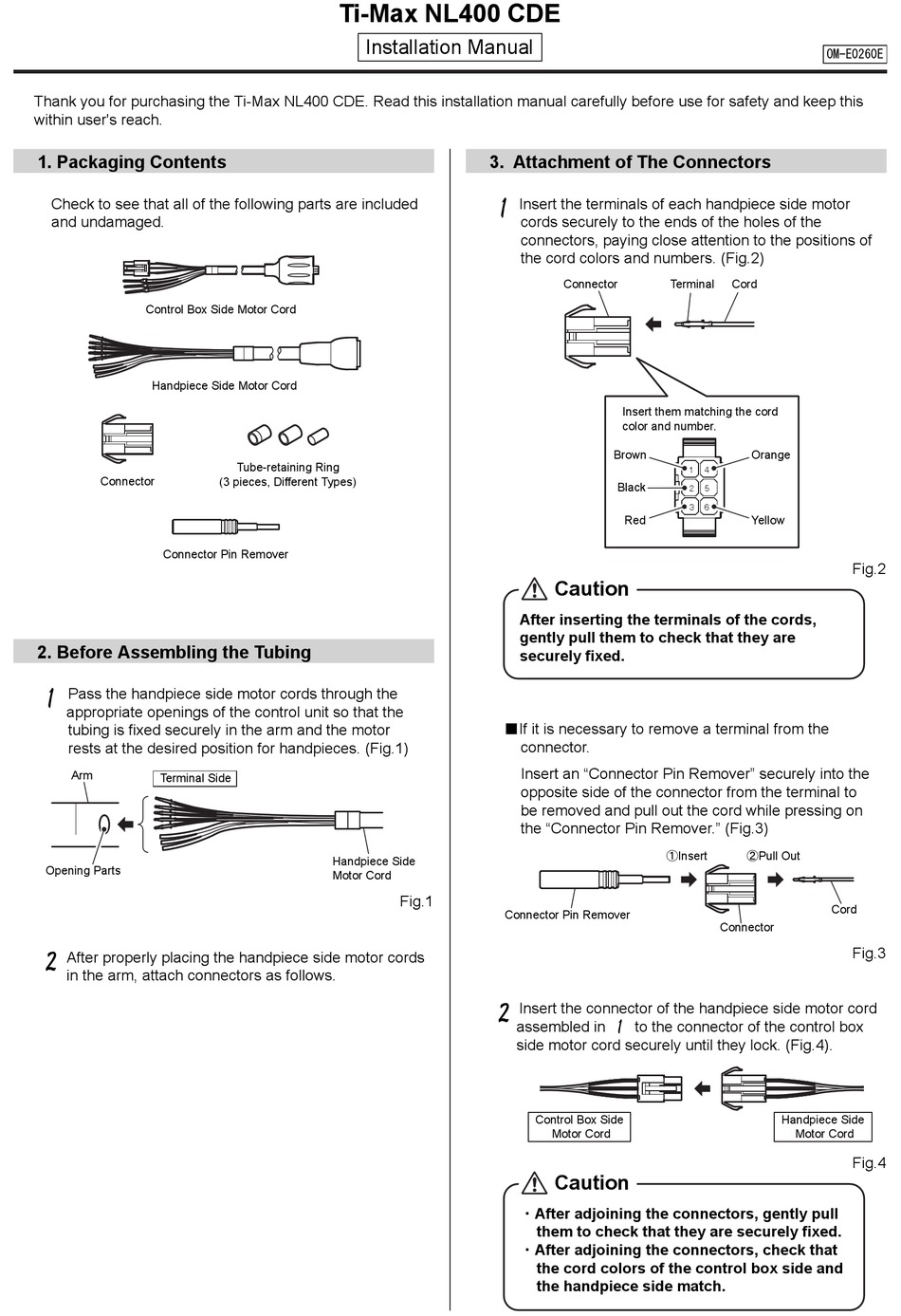

Thank you for purchasing the Ti-Max NL400 CDE. Read this installation manual carefully before use for safety and keep this
within user's reach.

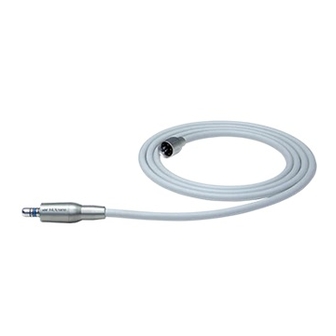

1. Packaging Contents

Check to see that all of the following parts are included
and undamaged.
Control Box Side Motor Cord
Handpiece Side Motor Cord
Connector
Connector Pin Remover

2. Before Assembling the Tubing

1
Pass the handpiece side motor cords through the
 appropriate openings of the control unit so that the
tubing is fixed securely in the arm and the motor
rests at the desired position for handpieces. (Fig.1)
Arm
Terminal Side
Opening Parts
2
After properly placing the handpiece side motor cords
 in the arm, attach connectors as follows.
Ti-Max NL400 CDE
Installation Manual
Tube-retaining Ring
(3 pieces, Different Types)
Handpiece Side
Motor Cord

3. Attachment of The Connectors

1
Insert the terminals of each handpiece side motor
cords securely to the ends of the holes of the
connectors, paying close attention to the positions of
the cord colors and numbers. (Fig.2)
Connector
Caution
After inserting the terminals of the cords,
gently pull them to check that they are
securely fixed.
■If it is necessary to remove a terminal from the
connector.
Insert an "Connector Pin Remover" securely into the
opposite side of the connector from the terminal to
be removed and pull out the cord while pressing on
the "Connector Pin Remover." (Fig.3)
Fig.1
Connector Pin Remover
2
Insert the connector of the handpiece side motor cord
assembled in
side motor cord securely until they lock. (Fig.4).
Control Box Side
Motor Cord
Caution
・After adjoining the connectors, gently pull
them to check that they are securely fixed.
・After adjoining the connectors, check that
the cord colors of the control box side and
the handpiece side match.
Terminal
Cord
Insert them matching the cord
color and number.
Brown
Orange
Black
Red
Yellow
②Pull Out
①Insert
Connector
1
to the connector of the control box
Handpiece Side
OM-E0260E
Fig.2
Cord
Fig.3
Motor Cord
Fig.4
