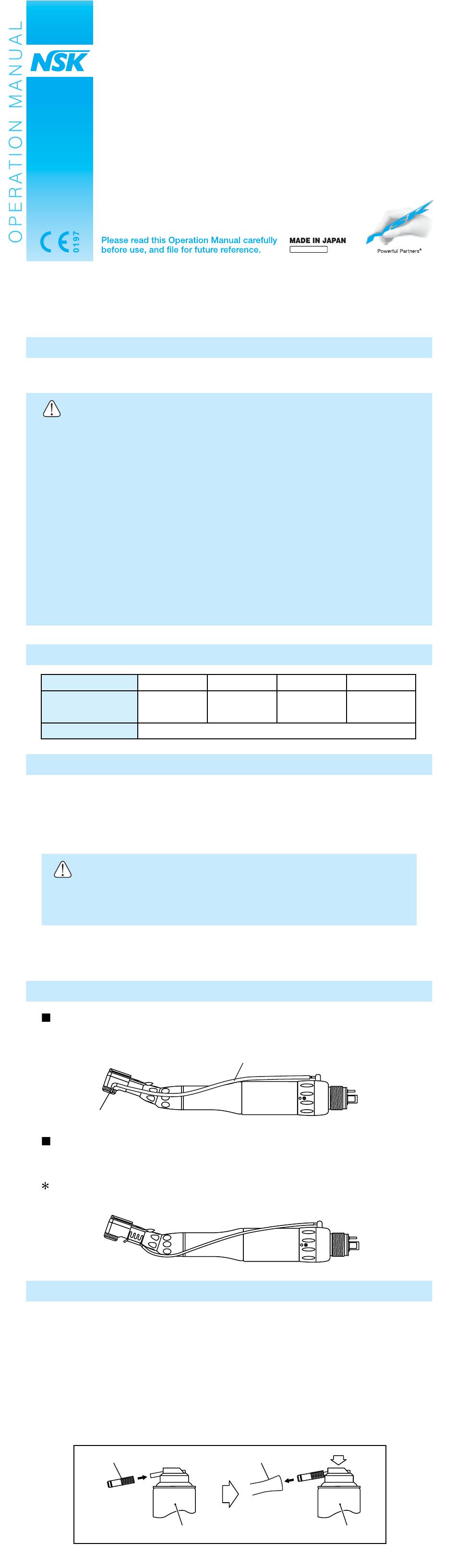

This operation manual for :
NAC - EC / ER4 / ER10 / ER16 / ER64 / ECM / ER4M / ER10M / ER16M / ER64M
BB - EC / ER4 / ER10 / ER16 / ER64 / ECM / ER4M / ER10M / ER16M / ER64M
NM - EC / ER4 / ER10 / ER16 / ER64 / ECM / ER4M / ER10M / ER16M / ER64M
NBBW - EC / ER4 / ER10 / ER16 / ER64 / ECM / ER4M / ER10M / ER16M / ER64M
Intended to Use
The handpiece is designed only for clinical dental use by qualified personnel.
Caution
• When operating the handpiece always consider the safety of the patient.
• Check for vibration, noise and overheating outside the patient's oral
cavity before use. If any abnormalities are found, stop using the Product
immediately and contact your authorized dealer.
• Do not allow any impact on to the Product. Do not drop the handpiece.
• Do not exceed the allowable max speed recommended on the Specification.
• Be sure to connect or disconnect the handpiece only after the motor
completely stops rotation.
• Always confirm that the bur is correctly located in the position.
• Do not use bent, deformed or damaged burs.
• Perform periodical maintenance checks.
• If the handpiece has not been used for a long period, check for noise,
vibration, and overheating before use.
1. Specifications
Model
Allowable Max. Speed
Bur Size
2. Mounting and Removing the Bur
(1) Mounting
1) Swing the Latch Plate to open the chuck.
2) Insert the Latch bur.
3) Swing the Latch Plate back to closed position.
Caution
If the directional insertion is right for the "D" shape hole, bur might
install into the end of the chuck.
(2) Removing
Swing the Latch Plate to open position and pull the bur out.
3. Water and Chip Air Supply
NBBW
Connect the Irrigation Tube to the Irrigation Nozzle.(Fig.1)
Irrigation Nozzle
NAC / BB / NM
Connect the Spray Tube Attachment to the head and the tube to the
Spray Tube Nozzle of the motor.(Fig.2)
Spray Tube Attachment(Option) : NAC,BB Order No.C032 701
4. Lubrication
(1) PANA SPRAY Plus / PANA SPRAY
Supply "PANA SPRAY Plus /PANA SPRAY" after each use and/or
before autoclaving.
1) Push E-type Spray Nozzle attachment over the lubricant spray nozzle
until it firmly seats.
2) Shake the can 3-4 times to well mix lubricant and propellant.
3) Insert the E-Type Spray Nozzle in the rear of the handpiece and
spray for approximately 2 – 3 seconds until the oil comes out of the
handpiece head.
E-type Spray Nozzle

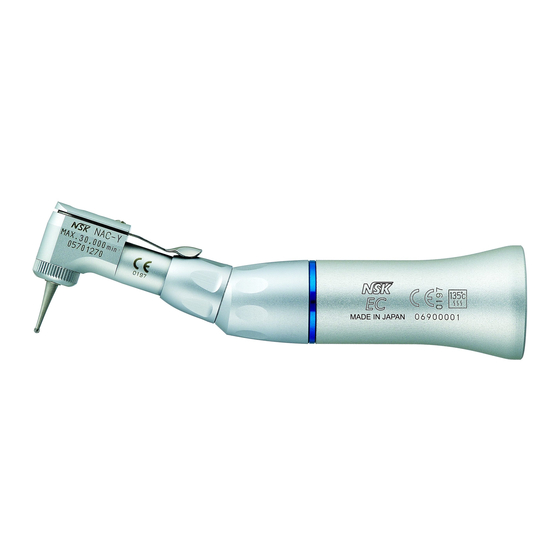

Contra Angle Handpiece
NAC/BB/NM/NBBW
NAC-Y
-1
30,000 min
40,000 min
Irrigation Tube
NM
PANA SPRAY Plus
OM-C0363E 002
BB-Y
NM-Y
-1
30,000 min
ISO 1797-1 Type1
Order No.C039 701
Handpiece
PANA SPRAY Plus
Latch Bur
NBBW-Y
-1
-1
40,000 min
Fig.1
Fig.2
Fig.3
