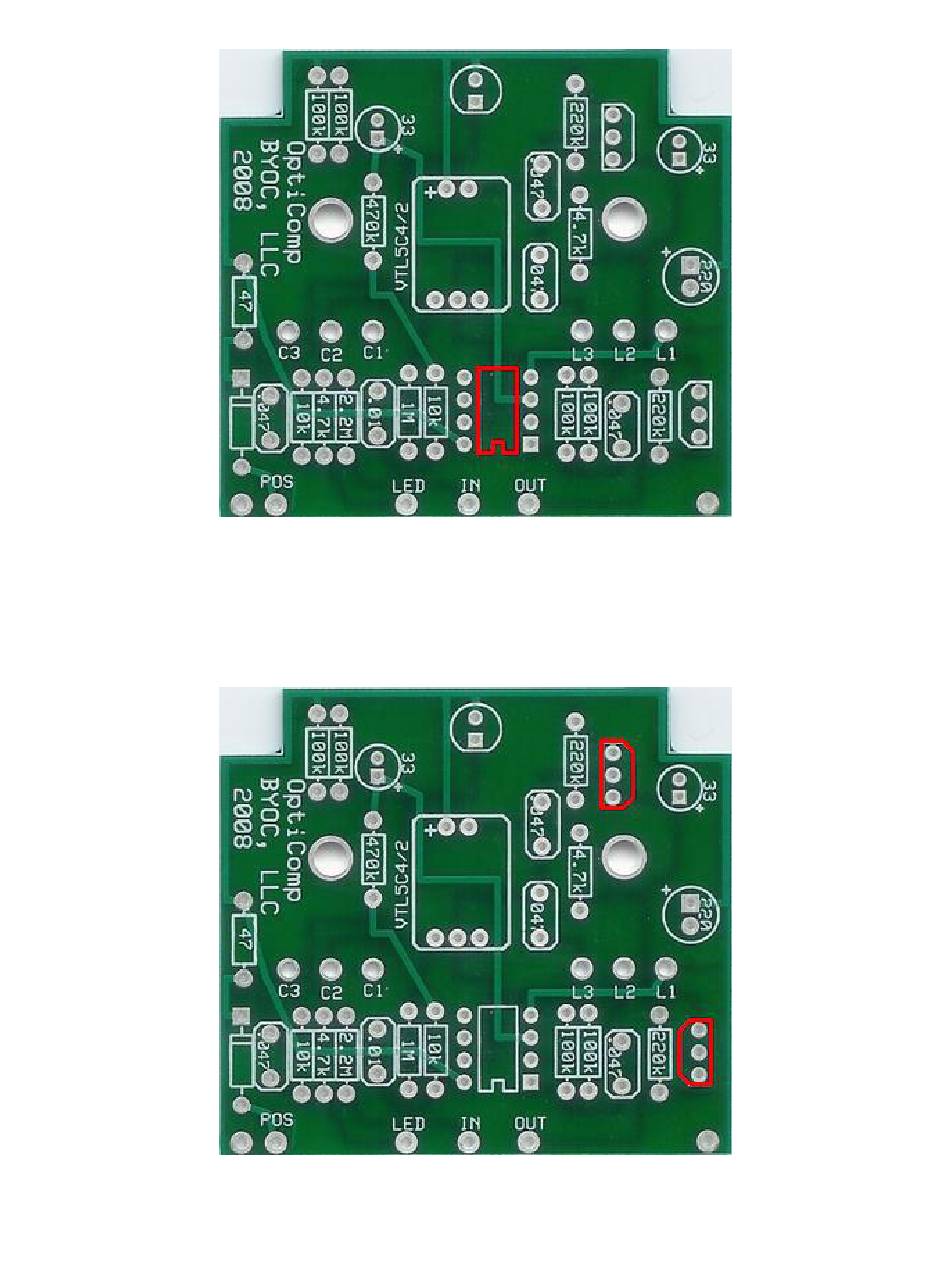

Step3: Add the Op Amp. Pin 1 of the op amp will go in the square solder pad. Pin 1 is sometimes

denoted by a small dot in one corner on the top of the chip. This dot should be in the same corner as the

square solder pad on the PCB. Sometimes there will also be a U-shaped notch in one end. Match this

notch up with the notch in the layout. Usually there is only one type of marker or the other for orienting

the OpAmp, but if there are both markers, always defer to the U-shaped notch first.

Step 4: Add the transistors. Make sure to match the rounded back of the transistor with

layout
