Populating the Circuit Board

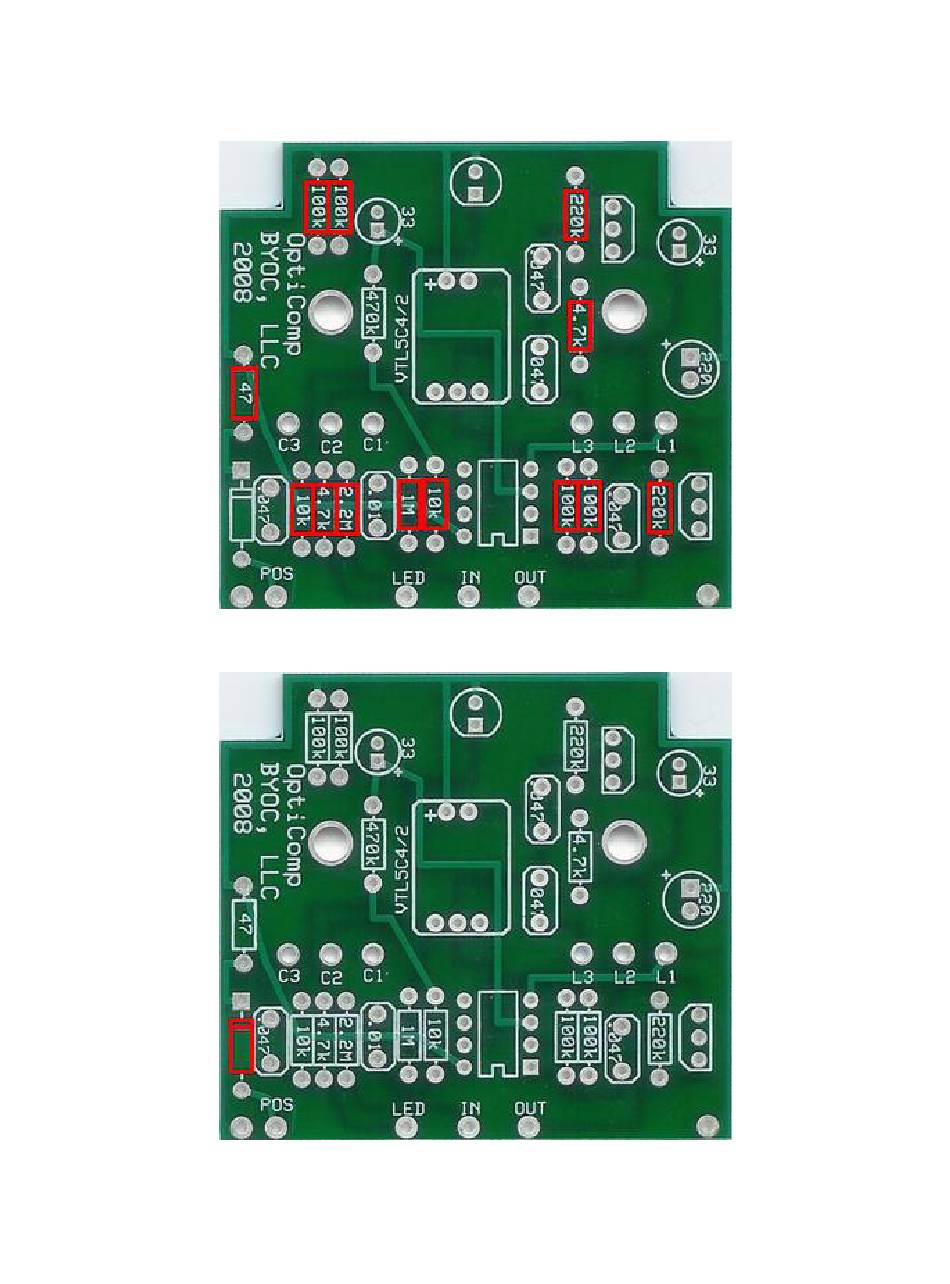

Step1: Add the resistors. Resistors are not polarized so they can go in the PCB in either
direction. THE 47ohm RESISTOR WILL BE OMITTED ON NEWER PCBs.
Step 2: Add the larger black plastic diode with silver stripe(1N4001). Make sure the
stripe matches up with the layout on the PCB. The cathode(striped end) goes in the
square solder pad. The anode goes in the round solder pad.
