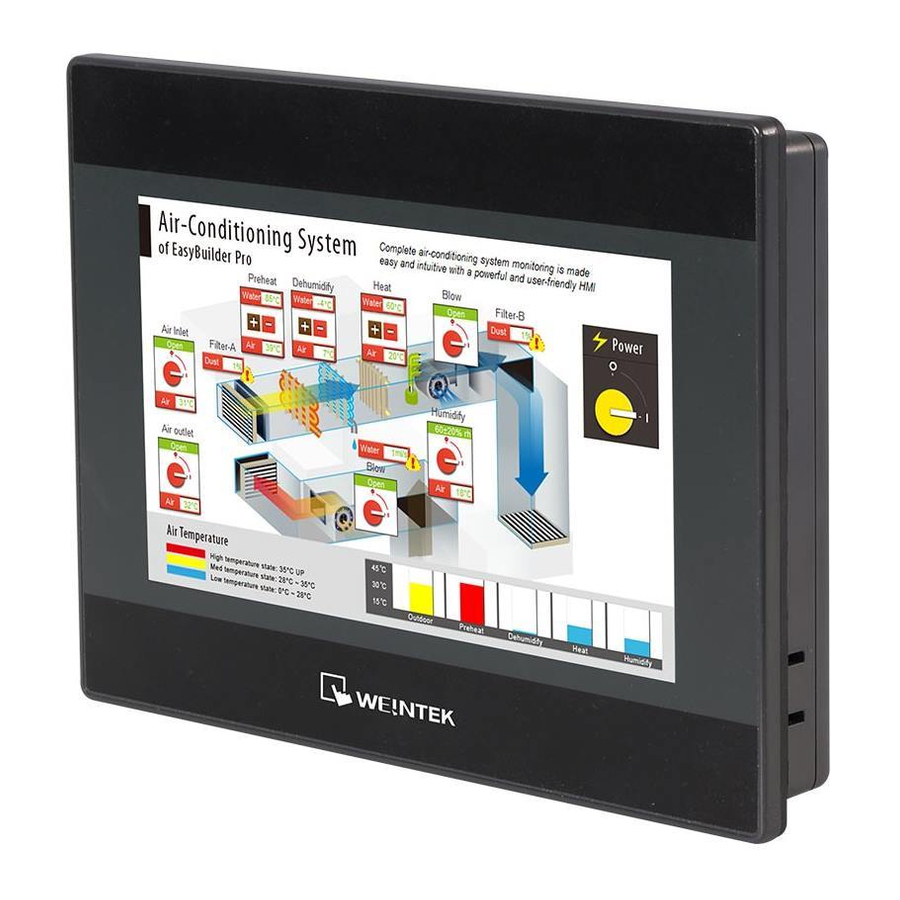

MT6071iP MT8071iP series

Installation and Startup Guide

1
This document covers the installation of
MT6/8071iP
operation, please refer to Brochure and EasyBuilder Pro User Manual.
Install Environment:
NEMA Rating
MT6/8071iP Series HMI is NEMA 4 rated (Indoor Only).
MT6/8071iP Series has been tested to conform to European CE requirements.
Electrical
This means that the circuitry is designed to resist the effects of electrical noise.
Environment
This does not guarantee noise immunity in severe cases. Proper wire routing and
grounding will insure proper operation.
(1) Make sure that the displays are installed correctly and that the operating
limits are followed. Avoid installing units in environments where severe
mechanical vibration or shocks are present.
(2)
Do not operate the unit in areas subject to explosion hazards due to
flammable gases, vapors or dusts.
Environmental
(3) Do not install the unit where acid gas, such as SO2 exists.
Considerations
(4)
This device should be mounted in the vertical position and for use on the flat
surface enclosure.
(5)
Conform to UL508 (ISBN 0-7629-0404-6) machine safety for use in
Pollution Degree 2 Environment.
(6)
Relative Humidity: 10% ~ 90% (non-condensing)
2

Unpacking the Unit

Unpack and check the delivery. If damage is found, notify the supplier.
NOTE:
Place the operator panel on a stable surface during installation. Dropping it or letting it fall
may cause damage.
(1) Installation Instruction, 2-sided A4 *1
(2) Human Machine Interface *1
(3) Power Connector *1
(4) Brackets & Screws *1 pack

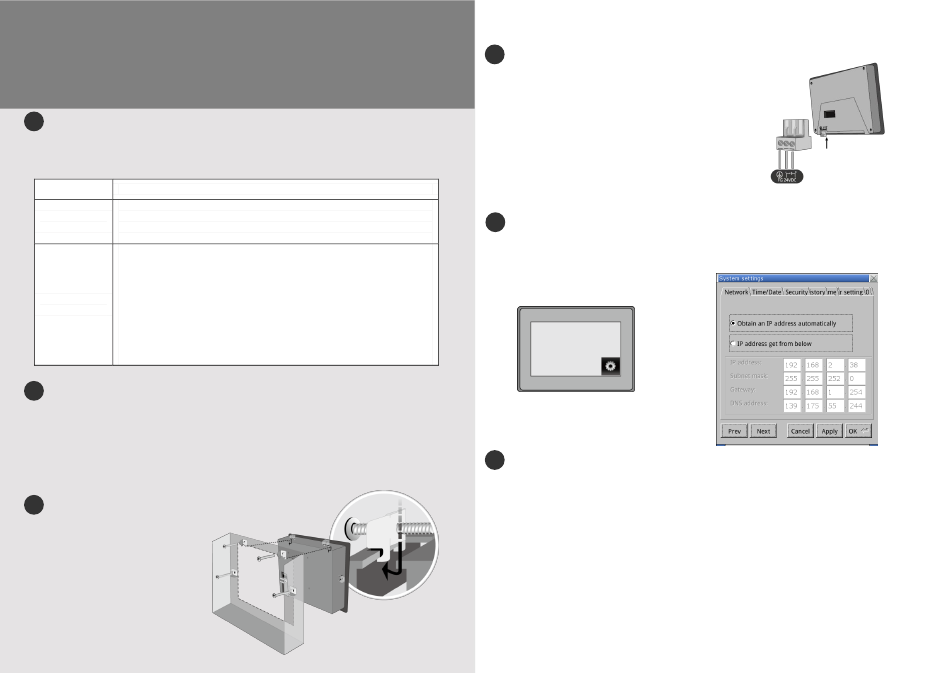

Installation Instructions

3
Secure the operator panel in position, using
all the fastening holes and the provided
brackets and screws. Screw Torque: 2.6 ~
3.9 lbf.in. (For reaching waterproof effect
and preventing the panel from being
deformed.) Panel Cutout: 192 mm x 138 mm
Installation Instruction
Series HMI, for the detailed specifications and

Power Connections

4
NOTE:
1. Connect positive DC line to the '+' terminal and the
DC ground to the '-' terminal.
2. When downloading project using a USB cable, do
not connect HMI with PLC and PC simultaneously, for
electric potential difference may result in damage to
HMI or PC.
System Settings
5
When HMI is powered up and displays image,
click the system setting button.
(Default System Password: 111111)
It is necessary
to connect the HMI to
your network through a RJ-45 cable.
(N/A for MT6071iP)
EasyBuilder Pro Software Settings
6
Launch EasyBuilder Pro software, select your project file, press F7 shortcut key to open the download
dialog box:
For MT6071iP, select USB cable /
For MT8071iP, select Ethernet > IP tab > Enter your HMI IP > Click Download to download this project file
to HMI.
Using screensaver and backlight saver is recommended in order to avoid image persistence caused by
displaying the same image on HMI for a long time.
( Please refer to EasyBuilder Pro User Manual for software operation details )
Go to the Network tab, you may choose
to auto get DHCP IP, or designate your
own IP.
