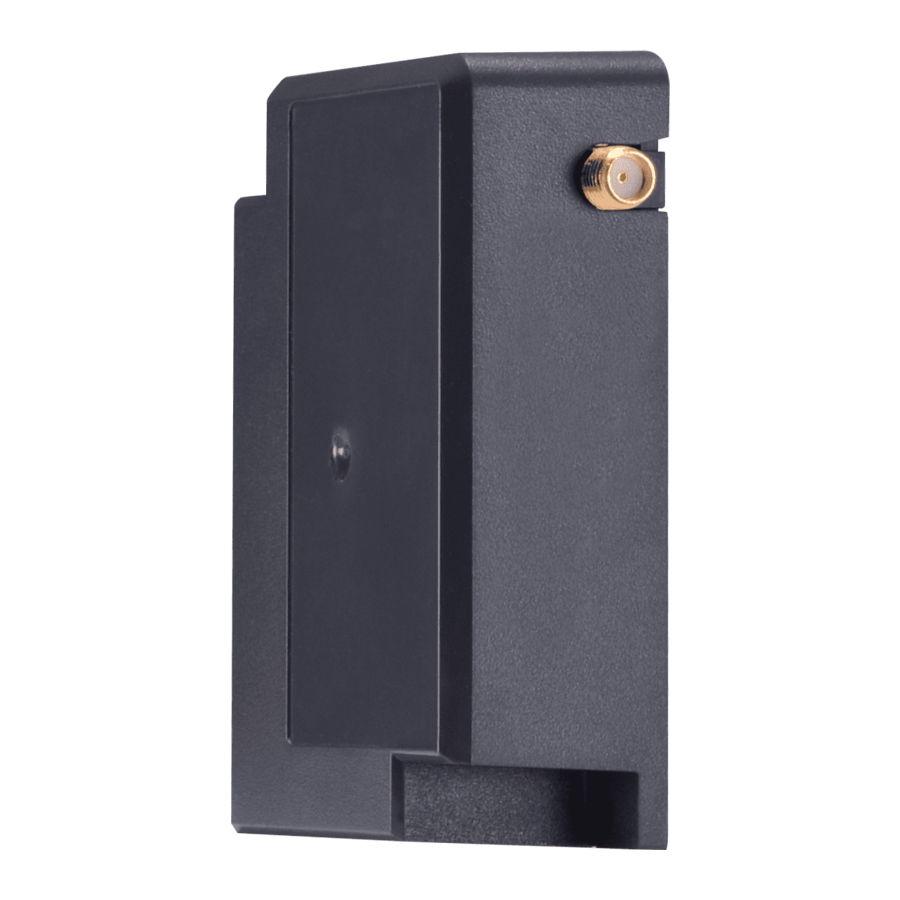

- Page 1 User Manual M02 Startup Guide...
-
Page 2: Table Of Contents
Table of Contents Chapter 1 Overview ............................. 1 Specification ............................1 Dimensions ............................2 Installation ............................3 Chapter 2 Wi-Fi Settings ............................4 Set in internet browser ........................4 Set on HMI............................6... -
Page 3: Chapter 1 Overview
0° ~ 50°C (32° ~ 122°F) Operating Temperature Relative Humidity 10% ~ 90% (non-condensing) Vibration Endurance 10 to 25Hz (X, Y, Z direction 2G 30 minutes) Certificate CE marked Software EasyBuilder Pro UM021003E_20210505 Copyright© 2021 Weintek Lab., Inc. All rights reserved. -
Page 4: Dimensions
2000mm [78.74"] 24.1mm [0.95"] 54.5mm 54.5mm [2.15"] SM A Male Connector RG174 Black Coaxial Cable Side View Side View 侧视图 正视 Foam Sticker 底视 Antenna SMA Female Connector Male Connector to HMI UM021003E_20210505 Copyright© 2021 Weintek Lab., Inc. All rights reserved. -
Page 5: Installation
M02 Startup Guide 1.3 Installation M02 does not support hot swapping by design. Please connect it to HMI before powering up HMI. UM021003E_20210505 Copyright© 2021 Weintek Lab., Inc. All rights reserved. -
Page 6: Chapter 2 Wi-Fi Settings
M02 Startup Guide Chapter 2 Wi-Fi Settings Connect M02 to HMI and then start up HMI. Log in system settings in one of the following two ways and configure Wi-Fi parameters. 2.1 Set in internet browser Connect HMI with PC using an Ethernet cable, open internet browser (IE, Chrome, or Firefox), and enter HMI’s IP address (e.g.: 192.168.2.177) to configure HMI settings. - Page 7 M02 Startup Guide Network » Wi-Fi: Select Wi-Fi AP and define the encryption type. Network » Hotspot: Make the HMI a wireless hotspot to share internet connection if needed. UM021003E_20210505 Copyright© 2021 Weintek Lab., Inc. All rights reserved.
-
Page 8: Set On Hmi
HMI to open the Setting window. Tap the lock icon , enter the password to log in, and then open the Wi-Fi tab to set Wi-Fi Connection and Wi-Fi Hotspot. UM021003E_20210505 Copyright© 2021 Weintek Lab., Inc. All rights reserved. - Page 9 Wi-Fi Hotspot: Make the HMI a wireless hotspot to share internet connection if needed. Other company names, product names, or trademarks in this document are the trademarks or registered trademarks of their respective companies. This document is subject to change without prior notice. UM021003E_20210505 Copyright© 2021 Weintek Lab., Inc. All rights reserved.
