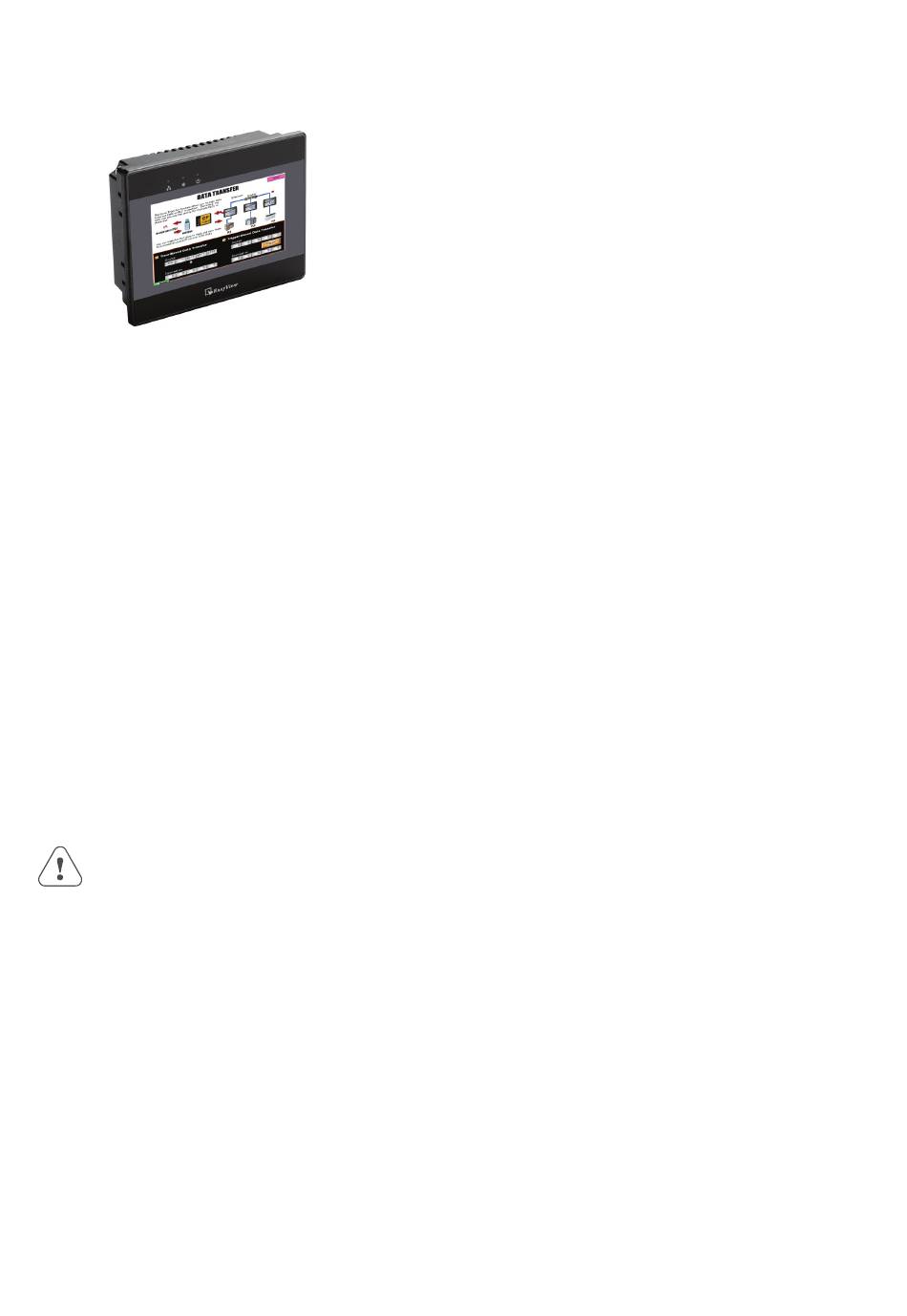

1.0 Installation and Startup Guide
Install Environment
Where

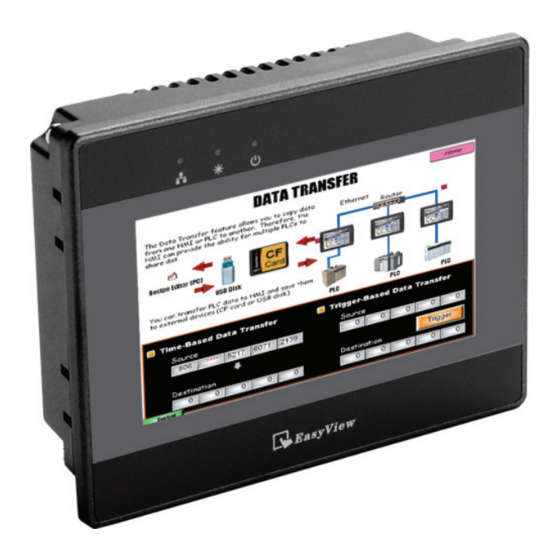

The MT-6050iV3 Series is designed for industrial. The temperature range of operating
Used
is from 32 to 122 °F (0 to 50 °C), as majority of industrial environments. It may not be
suitable for using in certain outdoor applications. Please consult the factory for
advised usage in outdoor applications.
NEMA
The MT-6050iV3 Series front bezel is NEMA 4 rated. When installed properly in a
Rating
NEMA 4 panel, the NEMA 4 rating of the panel will not be compromised. This means
that fluids will not enter the panel during wash downs.
Electrical
The MT-6050iV3 Series has been tested to conform to European CE requirements.
Environment
This means that the circuitry is designed to resist the effects of electrical noise. This
does not guarantee noise immunity in severe cases. Proper wire routing and
grounding will insure proper operation.
Mechanical
Avoid installing units in environments where severe mechanical vibration or shocks
Environment
are present.
2.0 Installation Instructions
2.1 Mounting Instructions
2.1.1 Location Considerations
Care should be taken when locating equipment behind the unit to ensure that AC power wiring, PLC
output modules, contactors, starters and relays, and any other source of electrical interference are located
away from the back of the unit.
Particular note should be taken to the position of variable speed drives and switching power supplies.
Their input and load cables should be screened to a central star earth point.
MT-6050iV3 Series
MT-6050iV3
Installation Instruction
1
Advertisement
Table of Contents
Related Manuals for weintek MT-6050iV3 Series
Summary of Contents for weintek MT-6050iV3 Series
- Page 1 Please consult the factory for advised usage in outdoor applications. NEMA The MT-6050iV3 Series front bezel is NEMA 4 rated. When installed properly in a Rating NEMA 4 panel, the NEMA 4 rating of the panel will not be compromised. This means that fluids will not enter the panel during wash downs.
- Page 2 2.1.2 Making a NEMA-4 Mounting Panel The unit can be mounted into panels with a depth of 4”(105mm). It is recommended that Details the unit be mounted on the front panel of a steel enclosure, through an appropriate opening*. Allow a clearance of 1”(25mm) around the sides of the unit for mounting hardware.
- Page 3 Caution Do not power the MT-6050iV3 and inductive DC loads, or input circuitry Supply Voltage to the controller, with the same power supply. Note: The 24 VDC output Condition from some controllers may not have enough current to power the MT-6050iV3.
- Page 4 Programming To conform with ICS Safety Recommendations, checks should be placed Considerations in the controller to ensure that all writable registers that control critical parts of plant or machinery have limit checks built into the program, with an out-of-limit safe shut down procedure to ensure safety of personnel. ICS 3-304.81 Safety Recommendations: Consideration should be given to the use of an emergency stop function, which is independent of the programmable controller.
- Page 5 1. Using USB cable mini side plug to HMI and another side plug into PC. The PC will display “Found New Hardware Wizard” dialog. Select “Install from a list or specific location (Advanced)”. 2. Check “Include this location in the search”, and assign the path to install Weintek HMI i Series driver from C:\EB8000\usbdriver.
- Page 6 Weintek products include the isolated power supply are covered by a limited liability warranty from defects in material and workmanship. This warranty does not apply : (a) if, in the judgment of Weintek, the product fails due to damage from shipment, handling, storage, accident (natural and man-mad) ;...
- Page 7 3.0 Specifications MT6050iV3 Hardware Specification 4.3" TFT LCD Display Brightness 300 cd/m Color 65,536 colors Contrast Ratio 500:1 Resolution (WxH dots) 480 x 272 Back light Backlight life time (avg.) 30,000 hr. min. 4 wires resistive type Touch panel Touch Accuracy Active Area Length(X)±2%, Width(Y)±2% I/O port COM1 (RS-232/RS-485 2W/4W), COM3 (RS-485)
- Page 8 4.0 Dimensions of MT-6050iV3 Top View R2mm [R0.079"] MT6050iV3 119mm [4.685"] W x 93mm [3.661"] H Side View Front View Sied View Cutout Dimensions Reset DIP SW FUSE5X20 -- - Rear View Bottom View DIP SW & Reset Button USB Client Port Fuse Com1 RS232, Com1 RS485, Com3 RS485 Power Connector...
