weintek MT607iE Installation Instruction

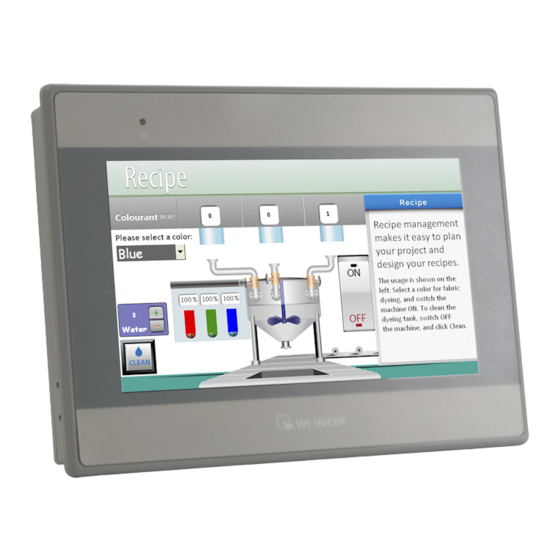

MT607iE MT610iE series

Installation and Startup Guide

1
This document covers the installation of MT607/610iE Series HMI, for the detailed specifications and
operation, please refer to Brochure and Windows CE User Manual.

Install Environment:

NEMA Rating MT607/610iE Series HMI is NEMA 4 rated (Indoor Only).
The MT607/610iE Series has been tested to conform to European CE
Electrical requirements. This means that the circuitry is designed to resist the effects of
Environment electrical noise. This does not guarantee noise immunity in severe cases. Proper
Wire Routing and grounding will insure proper operation.
(1) Make sure that the displays are installed correctly and that the operating
limits are followed. Avoid installing units in environments where severe
mechanical vibration or shocks are present.
(2) Do not operate the unit in areas subject to explosion hazards due to
Environmental flammable gases, vapors or dusts.
Considerations (3) Do not install the unit where acid gas, such as SO2 exists.
(4) This device should be mounted in the vertical position and for use on the flat
surface enclosure.
(5) Conform to UL508 (ISBN 0-7629-0404-6) machine safety for use in
Pollution Degree 2 Environment.
2

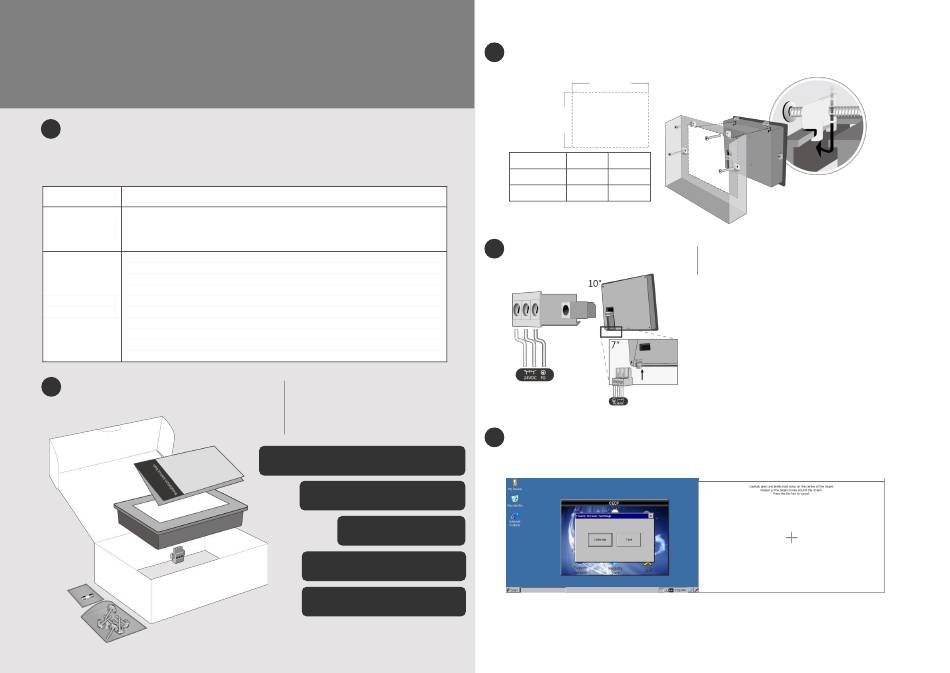

Unpacking the Unit

Unpack and check the delivery. If damage is found,
notify the supplier.
(1)
(2)
(3)
(5)
(4)
Installation Instruction
NOTE:
Place the operator panel on a stable
surface during installation. Dropping it or
letting it fall may cause damage.
(1) Installation Instruction, 2-sided A4 *1
(2) Human Machine Interface *1
(3) Power Connector *1
(4) Brackets & Screws *1 pack
(5) Fuse 1.25A/250V 5*20mm *1

Installation Instructions

3
Secure the operator panel in position, using all the fastening holes and the provided brackets
and screws: (A)
Cutout
(B)
Type A(mm) B(mm)
MT607iE 192 138
MT610iE 260 202

Power Connections

4

Calibration Mode

5
There are two ways to start calibration mode.
Way 1: Flip DIP SW1 to ON position and then turn on HMI power.
Way 2: Click [Touch Screen] in CECP and then click [Calibrate] button.
( Note 1: For the details of HMI DIP SW function settings please refer to Part 8 in this guide. )
NOTE:
Connect positive DC line to the '+' terminal
1.
and the DC ground to the '-' terminal.
2. Please do not connect HMI with PLC and PC
simultaneously to prevent potential difference
from destroying USB ports of HMI and PC.
