Summary of Contents for weintek cMT-FHDX
- Page 1 User Manual cMT-FHDX Startup Guide...
-
Page 2: Table Of Contents
User Manual Table of Contents Specification ........................... 1 Dimensions ......................... 2 Connector pin designations ....................3 USB Host port ........................3 Ethernet port........................3 DIP switch ........................... 3 LED indicator ........................4 Battery ..........................4 Power connection ......................4 HDMI Output ........................ -
Page 3: Specification
User Manual 1 Specification Features Full HD 1080p High Resolution HDMI Output Quad-core Cortex-A17 CPU with High Performance dedicated 3D Processor Plays video in high resolution, video decode 1080p H.264 Supports customized resolution for 16:9 / 4:3 LCD monitor. -
Page 4: Dimensions

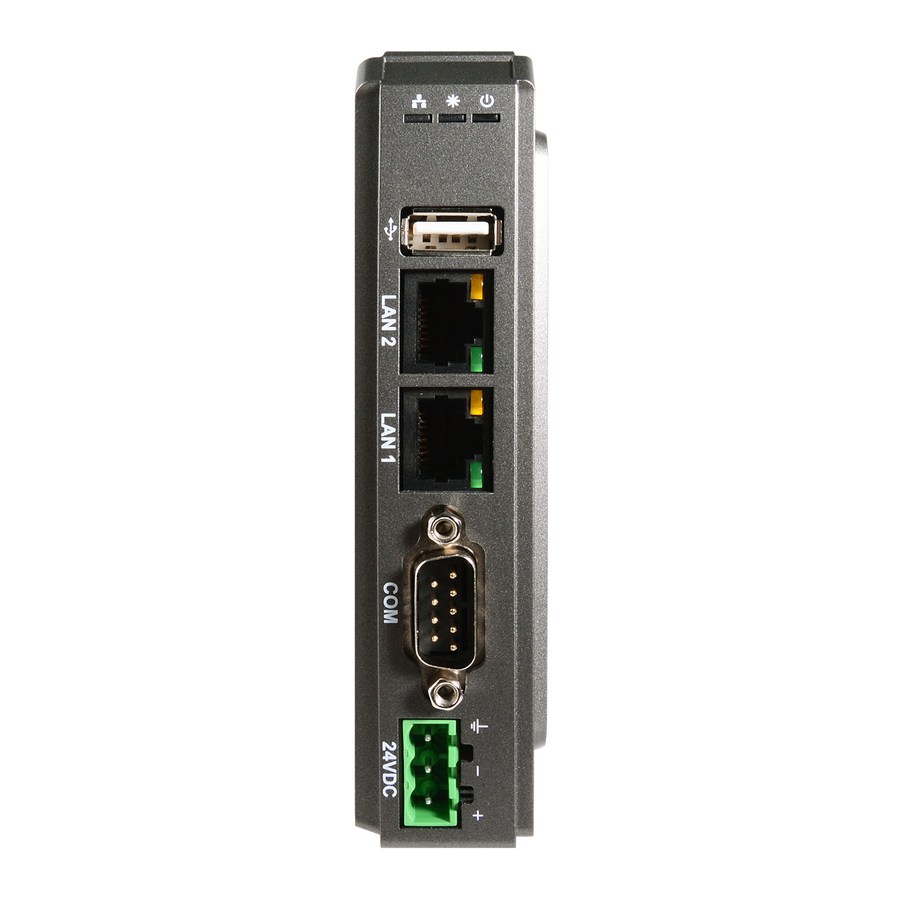

User Manual 英文版 Dimensions 29.8mm [1.17"] 29.8mm [1.17"] 115mm [4.52"] Front View Side View Top View Bottom View USB Host Port Power Connector LAN 2 HDMI Port LAN 1 DIP Switch COM1: RS-232, COM2: RS-485 2W/4W, Reset Button COM3: RS-485 2W... -
Page 5: Connector Pin Designations
User Manual Connector pin designations COM2 RS-485 COM3 RS-485 COM1 RS-232 PIN# Data+ Data- Data+ Data- USB Host port USB 2.0 full speed host interface supports USB mouse devices, keyboards, printers, barcode scanners, and USB disks. While using an external hard drive, please use an external power supply. -
Page 6: Led Indicator
When communication is good, it may stay Battery cMT-FHDX requires a coin type lithium battery CR1220 to keep the RTC running. Power connection Power: The unit can be powered by DC power only, voltage range: 24±20% Volts DC, compatible with most controller DC systems. -
Page 7: Hdmi Output
Supports 1920 × 1080 high resolution HDMI output. Displays image via HDMI or DVI interface LED / LCD. Note: When cMT-FHDX enters backlight saver mode, an external keyboard or mouse is needed for turning on the backlight. The following shows how cMT-FHDX’s HDMI connector can be used. - Page 8 User Manual 3. Use HDMI splitter to connect multiple HDMI monitors. 4. Use HDMI switch to connect two cMT-FHDX with one HDMI monitor. Note: If not connecting a repeater, the maximum length of HDMI cable allowed is 15m. To reach a longer distance, please use CAT6 cable or a repeater.
-
Page 9: System Settings
EasyBuilder can be used on cMT-FHDX. 2.1 System Toolbar After rebooting cMT-FHDX, the Setting window can be opened by tapping the round start button on the screen (video output by HDMI). How to hide HMI System Setting Bar When [DIP Switch 1] is set ON, the system setting bar is hidden;... - Page 10 User Manual General General settings including FTP settings. [Direction] Set screen orientation mode to landscape or portrait by selecting degrees from 0 / 90 / 180 / 270. [Brightness] Adjust screen brightness. [Volume] Adjust volume of HDMI sound output. The monitor used must support DDC/CI.
- Page 11 User Manual Time/Date Set HMI local date and time. HMI name Set the HMI name for identification when downloading / uploading a project. Clear History Clear historical data stored on HMI. Project Management HMI can be rebooted by clicking the Restart button.
- Page 12 User Manual System Password By default the password is 111111. User-defined passwords can be used after verification. Enhanced Security Add or delete user accounts and manage user privileges. VNC Setting When enabled, the device can be connected remotely using VNC.
- Page 13 User Manual Printer Please see Chapter 23.3 in EasyBuilder Pro user manual for more information about printer installation. OS Upgrade Select an OS file saved in a USB disk to upgrade OS. When OS is upgrading, please do not cut off HMI power. For more...
-
Page 14: Os Upgrade
User Manual 2.3 OS Upgrade Please follow the steps below to upgrade OS. Step 1. Copy “MTFirmware.bin” file to a USB disk. (The format of the external storage device should be FAT32.) Step 2. Tap the Start Button, tap the lock icon of Setting, and then enter the password to log in to System Setting.
