MAP2 Controller
INSTALLATION MANUAL
September 2020

Advertisement

Table of Contents
loading

Related Manuals for Cansec MAP2

Summary of Contents for Cansec MAP2

  • Page 1 MAP2 Controller INSTALLATION MANUAL September 2020...

  • Page 2: Table Of Contents

    Table of Contents Introduction .................................. 3 Specifications ................................4 MAP2 Controller Layout ............................7 Panel Installation ..............................10  Controller Power Connection ..................10  Entry Reader Wiring ......................11  Entry and Exit Reader Wiring ..................12  Exit Button and Door Contact Wiring ................12 ...

  • Page 3: Introduction

    Ethernet connection. The standard MAP2 is provisioned with the default 2-door configuration. There are two modes, First Access (application based) and CloudACS (cloud based). Door configuration and mode can be upgraded. However, only one mode can be run at a time and data cannot be shared between modes.

  • Page 4: Specifications

    Relative Humidity Operating ………………………………………………………..……………………… 20% to 80% Auto Resettable Fuses MAP2 Main 12V DC………………………………………………………………………………1 A Each Reader Pair ……………………………………………………………………………………1 A Output Relays (See note 2 in Appendix section) All Relays (16 per panel) Form ‘C’………..…………………………….SPDT 6 A @ 30 VDC Inputs Door Contact (8 per panel) ……………………………Requires normally closed contact...
  • Page 5 MAP2 Controller……………….……………………………………………………..7” (L) x 7” (W) [18 cm (L) x 18 cm (W)] MAP2 Enclosure ……………………………………………..13” (W) x 19” (H) x 3 5/8” (D) [33 cm (W) x 48 cm (H] x 9.2 cm (D)] Controller Weight ................300 g [10.7 oz] Enclosure Weight ................
  • Page 6 The reader cable may have to be replaced with the correct type of Wiegand reader cable to improve system reliability. MAP2 and H1000 Connector Compatibility: H1000 connectors can be used on the MAP2 controller. The wiring will have to be adjusted to accommodate connector insertion by reading signal names on the appropriate connectors.

  • Page 7: Map2 Controller Layout

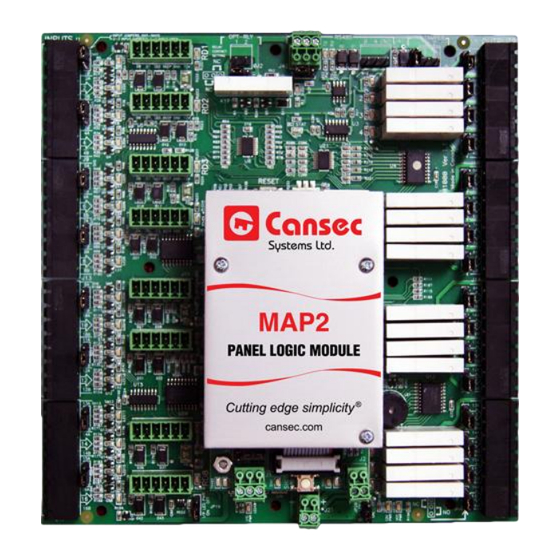

    MAP2 Controller Layout Figure 1 MAP2 Page 7 of 32 Installation Manual September 2020 • Rev. 1.5...
  • Page 8 Controller Provisioning Options: The MAP2 controller is provisioned with the default 2-door configuration. However, the door configuration can be upgraded. The MAP2 can run only in one mode either First Access or CloudACS. Door configurations are as follow: a. 2–door configuration: 2 lock relays, 2 multi-function relays, 2 REX/RTE, 2 door contacts/DPS, 12 general-purpose input points and 12 general-purpose output points.
  • Page 9 3. The MAP2 allows for the control of up to 8 door combinations. Ensure that adequate 12V DC power and current is available, especially when the same power supply is used for the locks. See suggested power supplies in Appendix section.

  • Page 10: Panel Installation

    The MAP2 requires an external battery backed-up 12 VDC power supply. However, as many devices can be attached to the MAP2 controller, it may be more cost effective to use a separate power supply (battery backed-up) just for the MAP2 Controller and a separate power supply which can be sized to supply the amount of current that the attached high-current devices (locks) will require.

  • Page 11: Entry Reader Wiring

    ENTRY READER WIRING The following diagram shows entry reader wiring only. For entry and optional exit reader wiring diagram, proceed to the next section. Figure 6 MAP2 Page 11 of 32 Installation Manual September 2020 • Rev. 1.5...

  • Page 12: Entry And Exit Reader Wiring

    EXIT BUTTON AND DOOR CONTACT WIRING The MAP2 controller can be provisioned for up to 8 doors. The following shows the input usage for each door combination. Reader 1: uses Input 1 (Door Contact/DPS) and Input 2 (RTE/REX).
  • Page 13 Non-Supervised Figure 8 The RTE/REX can be set to “Normally Open” or “Normally Closed” from the host software MAP2 Page 13 of 32 Installation Manual September 2020 • Rev. 1.5...
  • Page 14 Supervised Figure 9 The RTE/REX can be set to “Normally Open” or “Normally Closed” from the host software MAP2 Page 14 of 32 Installation Manual September 2020 • Rev. 1.5...

  • Page 15: Lock Output And Multi-Function Relay Wiring

     Door Operator_All – Activated on all cards (Lock Opens first).  Door Operator_HC – Activated on only Handicap cards (Lock Opens first).  DHO and Forced Entry – Activated on either DHO or Forced Entry. MAP2 Page 15 of 32 Installation Manual...
  • Page 16 Note: See Electric Strike Lock Wiring section for See Note 2 in explanation of MF relay Figure 11 Appendix section for usage. 6 Amp relay rating MAP2 Page 16 of 32 Installation Manual September 2020 • Rev. 1.5...

  • Page 17: Input And Output Point Wiring

    INPUT AND OUTPUT POINT WIRING General Layout Figure 12 The MAP2 can be provisioned for all I/O which allows for 16 input points and 16 output points to be used. There is no door provisioned in this mode. MAP2 Page 17 of 32 Installation Manual September 2020 •...
  • Page 18 The inputs can be individually set through the host software to be supervised or non- supervised in future release. The default input setting is non-supervised. Supervised input points require a Cansec CA-EOL resistor pack to be placed at the device being Alarm monitored.
  • Page 19  Output Wiring Figure 14 MAP2 Page 19 of 32 Installation Manual September 2020 • Rev. 1.5...

  • Page 20: Appendix

    3.63” x 5.88” x 2.5” Backup Battery 12 VDC 7 PA-SLP003 Amp Hour. Provides hours of (92.20mm x 149.35mm backup power for above power x 63.50mm) supplies. 5.00 lbs (2.27 kg) MAP2 Page 20 of 32 Installation Manual September 2020 • Rev. 1.5...

  • Page 21: Map2 System Indicators

    MAP2 SYSTEM INDICATORS 12VDC POWER LED: ON indicates 12 volts DC is connected. First Access Mode:  Mode indicator: MAP2 emits 1 beep after powered up. CloudACS Mode:  Mode indicator: MAP2 emits 3 beeps after powered up. BD STAT LED: Flashing RED – IOM (Input Output Module) is in normal operation.

  • Page 22: Power Connector

    To activate the Panel Tamper move jumper to the top 2 pins. Connect the switch between TAMP and the GND on the connector. Figure 16 MAP2 Page 22 of 32 Installation Manual September 2020 • Rev. 1.5...

  • Page 23: Shdn - Shutdown Button

    SHDN – SHUTDOWN BUTTON As the MAP2 contains a mini computer, a proper system shutdown is nesscessary to prevent data corruption. DO NOT simply unplug the power connector. To shut down follow this procedure: 1. Press and hold (4 to 8 seconds) the SHDN button until the status STAT LED near the SHDN button begins a rapid green ON/OFF flash then release the pushbutton.
  • Page 24 Note: The end of the process is indicated by a MAP2 turning back on the associated system LEDs with STAT LED flashing green along with a short series of beeps (1 or 3...
  • Page 25 Figure 18 until the Trusted Host IP option in the panel is updated with the new IP address of the host computer. Figure 21 MAP2 Page 25 of 32 Installation Manual September 2020 • Rev. 1.5...

  • Page 26: Usb Ip Configuration Tool

    MAP2 controller. Figure 22 1. If the MAP2 controller is already powered off then proceed to step 3. Otherwise, press and hold the SHDN button until the STAT LED on the module begins flashing rapidly then release the shutdown SHDN button.
  • Page 27 4. Insert the power connector into the MAP2 controller. The unit will begin the power up sequence which takes about 30 to 40 seconds. When complete, the MAP2 controller will emit a series of beeps, 1 beep or 3 beeps, to indicate its provisioned mode First Access or CloudACS respectively.
  • Page 28 First Access Express having the software installed. If IpSecurity is enabled and ClientIp has a valid IP address specified then the MAP2 controller accepts data connection (SrvPort 5000) from only this host computer. Other connections on DiagPort 5001 and UpdatePort 5002 are not affected by this setting.
  • Page 29 < USB INIT DONE > < USB INIT DONE > Please remove this line after this file has been correctly modified. The MAP2 controller reads parameters in this file during boot up sequence and configures the IP address accordingly after which it will write <USB INIT DONE>...

  • Page 30: Forced Entry Output

    12. If no error file is present, it’s recommended that the file MAPCFG.txt be reviewed to ensure that the line <USB INIT DONE> has been written by the MAP2 controller indicating that the IP configuration has been successfully saved and initialized.

  • Page 31: Door Operator Output - All Cards

    A corresponding message will be transmitted to the host software if the panel is online. © Cansec Systems Ltd., 2018 All rights reserved MAP2 Page 31 of 32 Installation Manual September 2020 • Rev. 1.5...
