KinAn KED101S Series User Manual page 4

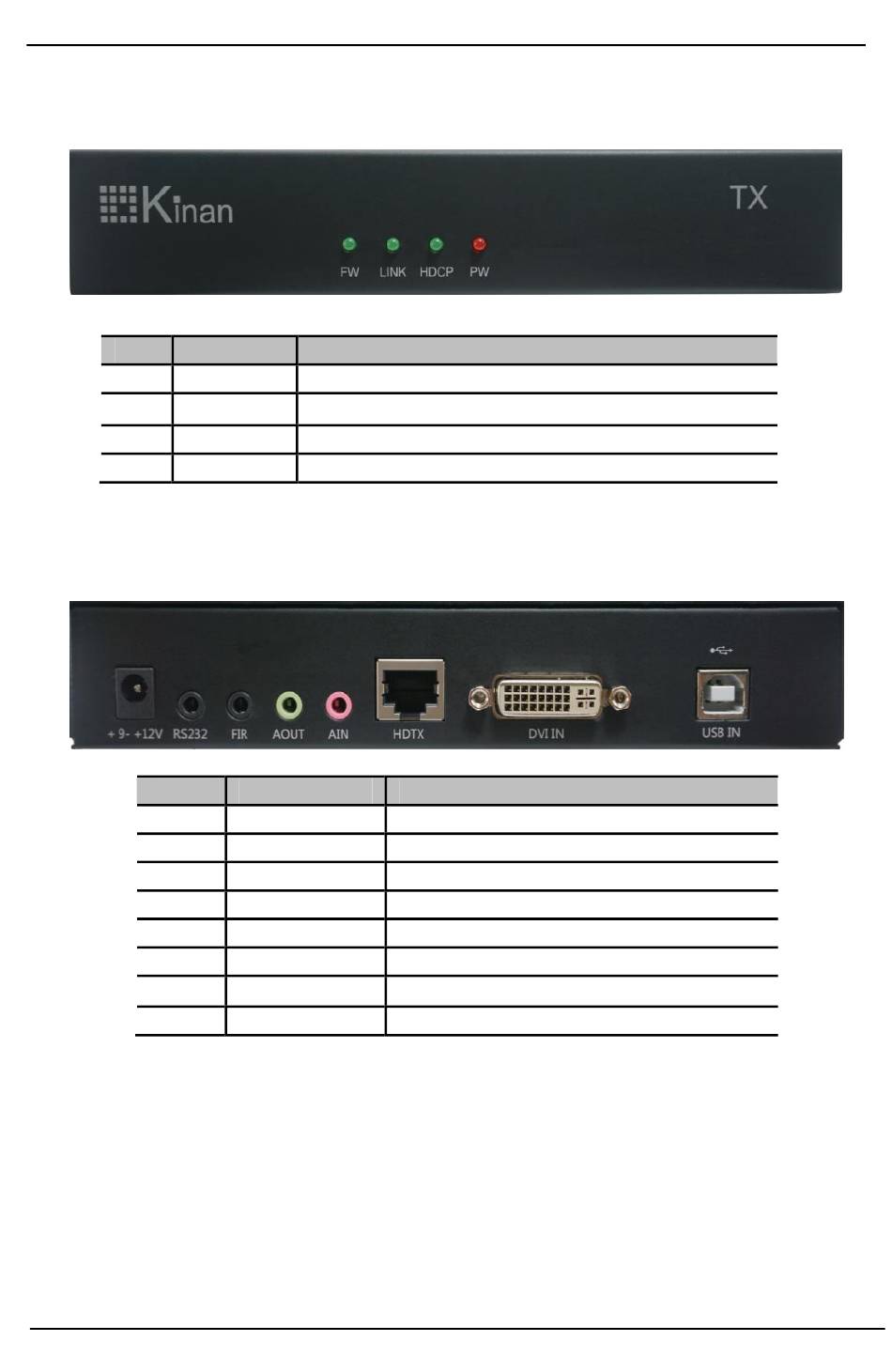

KED101S
KED101S_TX (Front View)
No. Function
1 FW
2 LINK
3 HDCP
4 PW
KED101S_TX (Rear View)
No.
1
2
3
4
5
6
7
8
Description
Device status
Indicate the connection status with local unit
Indicate video status
Indicate power status
Function Description
9V-12V 9V-12V power connection port
RS232 Serial port
FIR Reserved port
AOUT Server Audio output port
AIN Server MIC input port
DVI IN Video input port
USB IN Server USB Connection port
HDTX CAT5E/CAT6 cable connection port
