- Page 1 IP KVM Matrix Extender ( KFH188S ) User Manual www.kinankvm.com @ All rights reserved by Shenzhen Kinan Technology Co., Ltd. Date: 2024 /10 Version: V1.0...
-
Page 2: User Notice
IP KVM Matrix Extender (KFH188S) User Manual Call us for support Telephone +86 (755) 2665 4426 Office Time: 8:30am ~12:00am, 1:30pm~6:00pm (Monday to Friday) , GMT+8 Standard Time User Notice This manual contains important safety instructions as well as instructions for setting up the product and operating it. If the... -
Page 3: Table Of Contents
1.1 Function ................3 1.2 Product Features ..............4 1.3 Safety Instructions .............. 4 1.4 Product Overview ..............6 1.4.1 KFH188S Transmitter (TX) ..........6 1.4.2 KFH188S Receiver (RX) ..........7 2. Installation ................8 2.1 Install the Extenders ............8 3. -
Page 4: Introduction
IP KVM Matrix Extender (KFH188S) User Manual 1. Introduction IP HD Digital KVM Matrix Extender is a highly optimized KVM extender. The transmission distance can reach 150m for point-to-point connection with an Ethernet cable, and the resolution is up to 3840x2160@30Hz. This series of... -
Page 5: Product Features
IP KVM Matrix Extender (KFH188S) User Manual 1.2 Product Features 1. HDMI / Audio/USB2.0 / Serial Port IP KVM Matrix Extender 2. Supports hot backup function with master and backup connections (dual optical or dual network connections or 1 optical /1 network connections) 3. -
Page 6: Safety Instructions
IP KVM Matrix Extender (KFH188S) User Manual 1.3 Safety Instructions Warning! Please read and understand all safety instructions. 1. Please follow all instructions, including preventing serious accidents such as fire and explosion. Please ensure that users who use this product have read and will follow these warnings and safety instructions. -

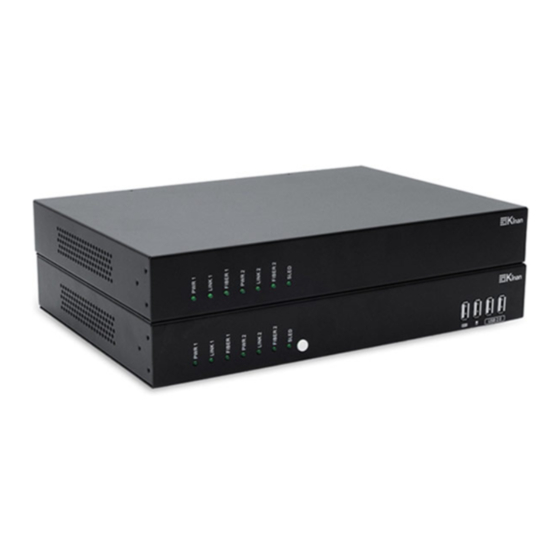

Page 7: Product Overview
IP KVM Matrix Extender (KFH188S) User Manual 1.4 Product Overview 1.4.1 KFH188S Transmitter (TX) Interface Description PWR1, PWR2 Power indicator LINK1, LINK2 Connection indicator FIBER1, Connection indicator of FIBER FIBER2 SLED System indicator Ground the device FIBER2, FIBER1 Fiber interfaces... -
Page 8: Kfh188S Receiver (Rx)
IP KVM Matrix Extender (KFH188S) User Manual 1.4.2 KFH188S Receiver (RX) Interface Description PWR1, PWR2 Power indicator LINK1, LINK2 Connection indicator FIBER1, Connection indicator of FIBER FIBER2 SLED System indicator Button Connect to a USB keyboard Connect to a USB mouse USB2.0... -
Page 9: Installation
IP KVM Matrix Extender (KFH188S) User Manual 2. Installation 2.1 Install the extenders Warning! Please read and understand all safety instructions before installing the equipment. The extender can access a single PC at a point-and-point mode, and also can form a matrix switching system to access multiple PCs. - Page 10 2. Connect the transmitter (KFH188S_TX) to the host video interface, USB, and audio microphone interface (Figure ②). 3. Connect the receiver (KFH188S _RX) to the monitor, audio, USB keyboard, and USB mouse (Figure ③). 4. Connect the transmitter TX and receiver RX interfaces respectively through optical fiber or network cable (Figure ④).
-
Page 11: Extender Configuration
IP KVM Matrix Extender (KFH188S) User Manual 3. Extender Configuration 3.1 How to use UI interface Press the left [Ctrl] key on the keyboard three times in a row to display the UI main interface. Toolbar Description Node Mode Matrix... -
Page 12: Txs Settings
IP KVM Matrix Extender (KFH188S) User Manual 【TXs settings】 Double-click an item on the TX-List, and then the following TX setting table appears. TX setting table: Toolbar Description Click “TX-0234b3616d6b” in the Name setting window to modify the TX name and then click ESC button to confirm your modification. -
Page 13: Settings Of Auto-Scan
IP KVM Matrix Extender (KFH188S) User Manual 【Settings of Auto-scan】 Select TX devices, click the QV icon, and then click to automatically scan the selected devices (default scan time: 10s). Scan time optional: 10s, 20s, 30s, 60s, 90s, 120s, 150s, 180s, 210s ,255s... -
Page 14: User Login Interface
IP KVM Matrix Extender (KFH188S) User Manual 【User Login Interface】 （See User Account Setting page The default setting mode is 17）, the login interface will only appear after clicking the icon User Name： admin Password: admin 【TX/RX Devices List】 Click , then the below menu appears, and al the connected TX and RX devices show on this menu. -
Page 15: System Settings
IP KVM Matrix Extender (KFH188S) User Manual 3.2 System Settings Click , then the below table appears. Toolbar Description Equipment Info To switch on/off USB, Audio, KM, Get & Push Equipment System and RX Settings Setting Push the video and USB signals from current receiver... -
Page 16: Equipment Info
IP KVM Matrix Extender (KFH188S) User Manual 【Equipment info】 Select【 】to switch on/off the system state. Toolbar Description Usb2.0 USB2.0 functions Audio Audio function Keyboard and Mouse Share Push video & Get video... -
Page 17: Rx Settings
IP KVM Matrix Extender (KFH188S) User Manual 【RX Settings】 Toolbar Description Click “RX-8220785f097” to change the name of RX, and Rename RX then click ESC confirm your modification. All blink Enable PWR led to blink on all TX devices. Reboot... - Page 18 IP KVM Matrix Extender (KFH188S) User Manual User Account Setting: Click then the button turns green , then can modify account password and set permissions. * You can't set the accounts info in Node mode. It can only be set on the management control unit.
-
Page 19: Frame Push
IP KVM Matrix Extender (KFH188S) User Manual 【Frame Push】 Click “Push” to push the video and USB signals from current receiver to the chosen receiver in the list. 【Frame Get】 Click “Get” to get the video and USB signals from any receiver in the list to the... - Page 20 IP KVM Matrix Extender (KFH188S) User Manual Connection Diagram of Collaborative Sharing Push & Get...
-
Page 21: Update
IP KVM Matrix Extender (KFH188S) User Manual 【Update】 Click “RX” to update RX Click “TX” to update TX... -
Page 22: Hotkeys
IP KVM Matrix Extender (KFH188S) User Manual 【Hotkeys】 Toolbar Description Left _Ctrl Show or hide the UI interface Left_ Shift Stop accessing the current TX Right_ Ctrl Access the next TX Right_ Ctrl+ Double【1-0】 Switch among the Txs... -
Page 23: Specifications
IP KVM Matrix Extender (KFH188S) User Manual Specifications Specifications KFH188S_TX KFH188S_RX HDMI input HDMI output Power 12V x 2 12V x 2 LAN port RJ45 x 2 RJ45 x 2 Optical Connections SFP+ x 2 SFP+ x 2 Module port 3.5MM Stereo Jack (Green)
