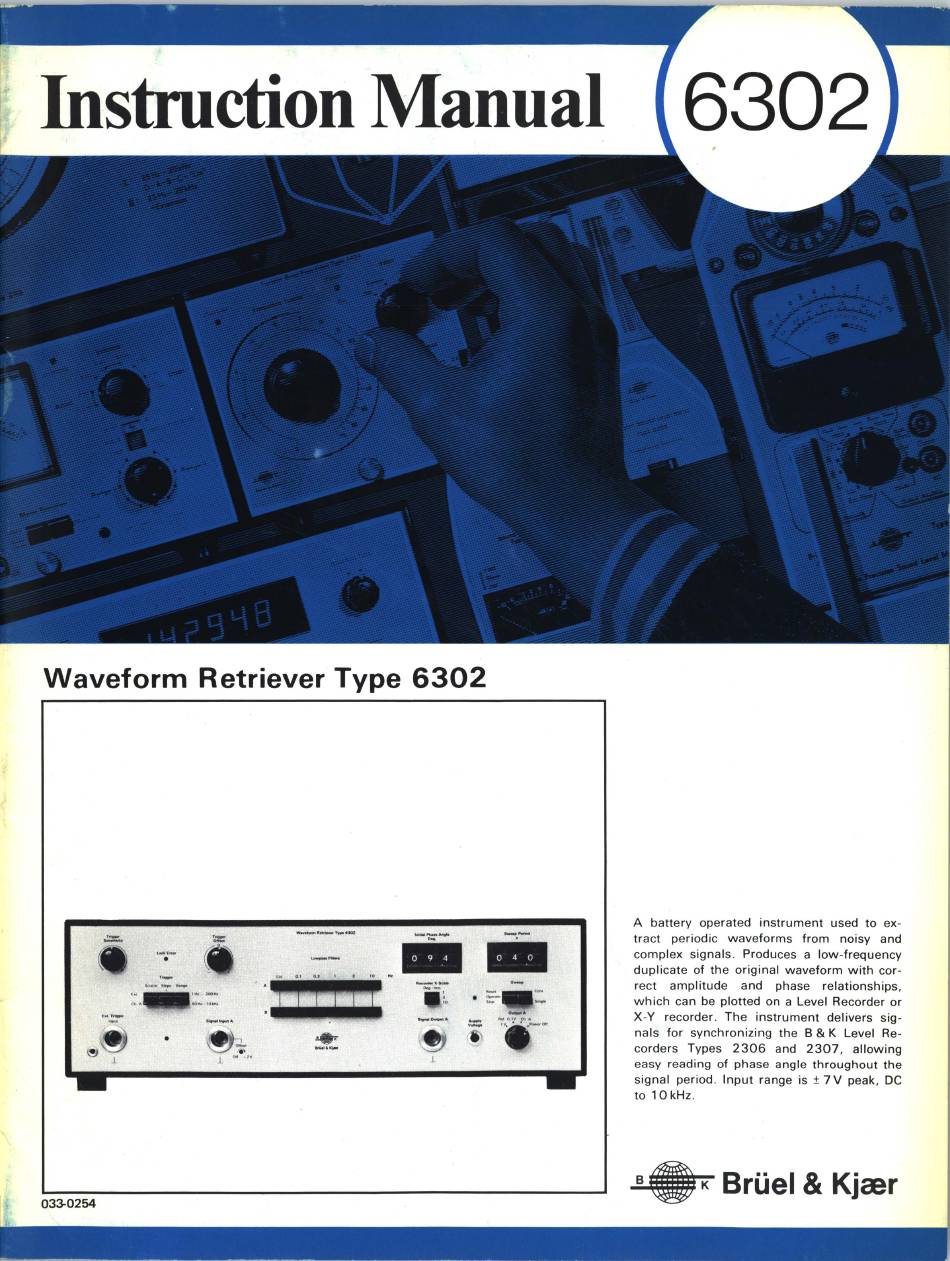

BRUEL & KJAER 6302 Instruction Manual

Instruction Manual

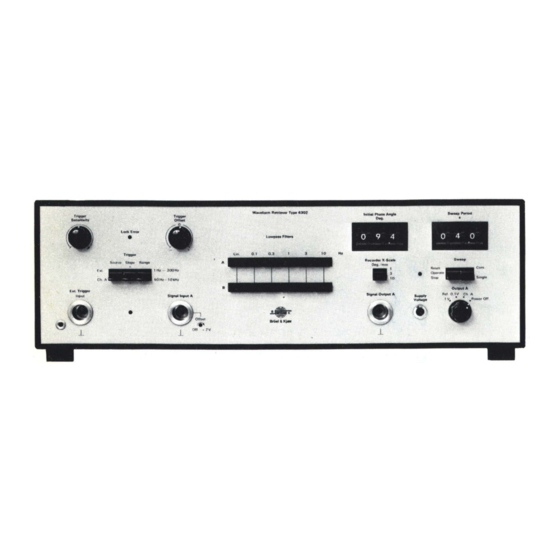

Waveform Retriever Type 6302
--
-
.
::-
J.
03~0254
6302
A battery operated instrument used to ex-
tract periodic waveforms from noisy and
complex signals . Produces a low-frequency
duplicate of the original waveform with cor-
rect amplitude and phase relationships,
which can be plotted on a Level Recorder or
X -Y recorder. The instrument delivers sig-
nals for synchronizing the B &
K
Level Re-
corders Types 2306 and 2307, allowing
easy reading of phase angle throughout the
signal period . Input range is ± 7 V peak, DC
to 10kHz.
+
Bri.iel & Kjmr
