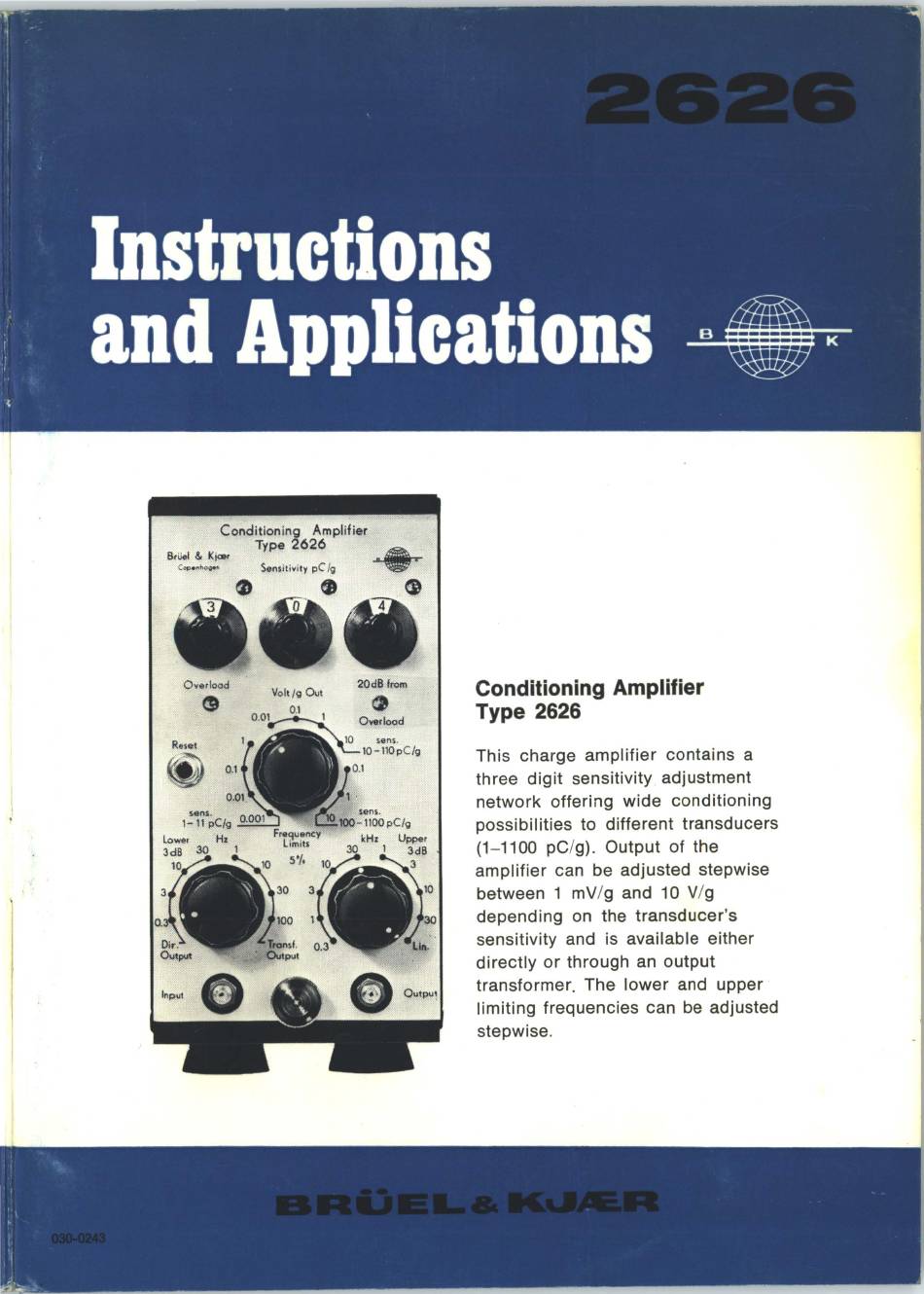

BRUEL & KJAER 2626 Instructions And Applications

BRUEL & KJAER 2626 Instructions And Applications

Conditioning amplifier

Advertisement

Quick Links

Conditioning Amplifier
Type
2626
Sru.l
& Ki<»r
c.,.,.,...
...
Sensitivity
pC /g
Conditioning Amplifier
Type 2626
This charge amplifier contains a
three digit sensitivity adjustment
network offering wide conditioning
possibilities to different transducers
(1
-
1100 pC/g). Output of the
amplifier can be adjusted stepwise
between 1
mV/
g and 10
V/
g
depending on the transducer's
sensitivity and is available either
directly or through an output
transformer. The lower and upper
limiting frequencies can be adjusted
stepwise.
