RMI5001 Installation Guide

Panel Preparation

The RMI5001 models mount directly on the enclosure's back or side
panel using 35mm DIN rail, or screwed directly to the panel with user-
supplied M4 or #8 panhead screws.
Mount the HMI to the Panel

HDMI Connection

A standard Type-A HDMI socket is provided on the top of the RMI5001
series. Use the HDMI socket to connect any video display that supports
HDMI at 1280x720 resolution.
1010-1019 Rev 04

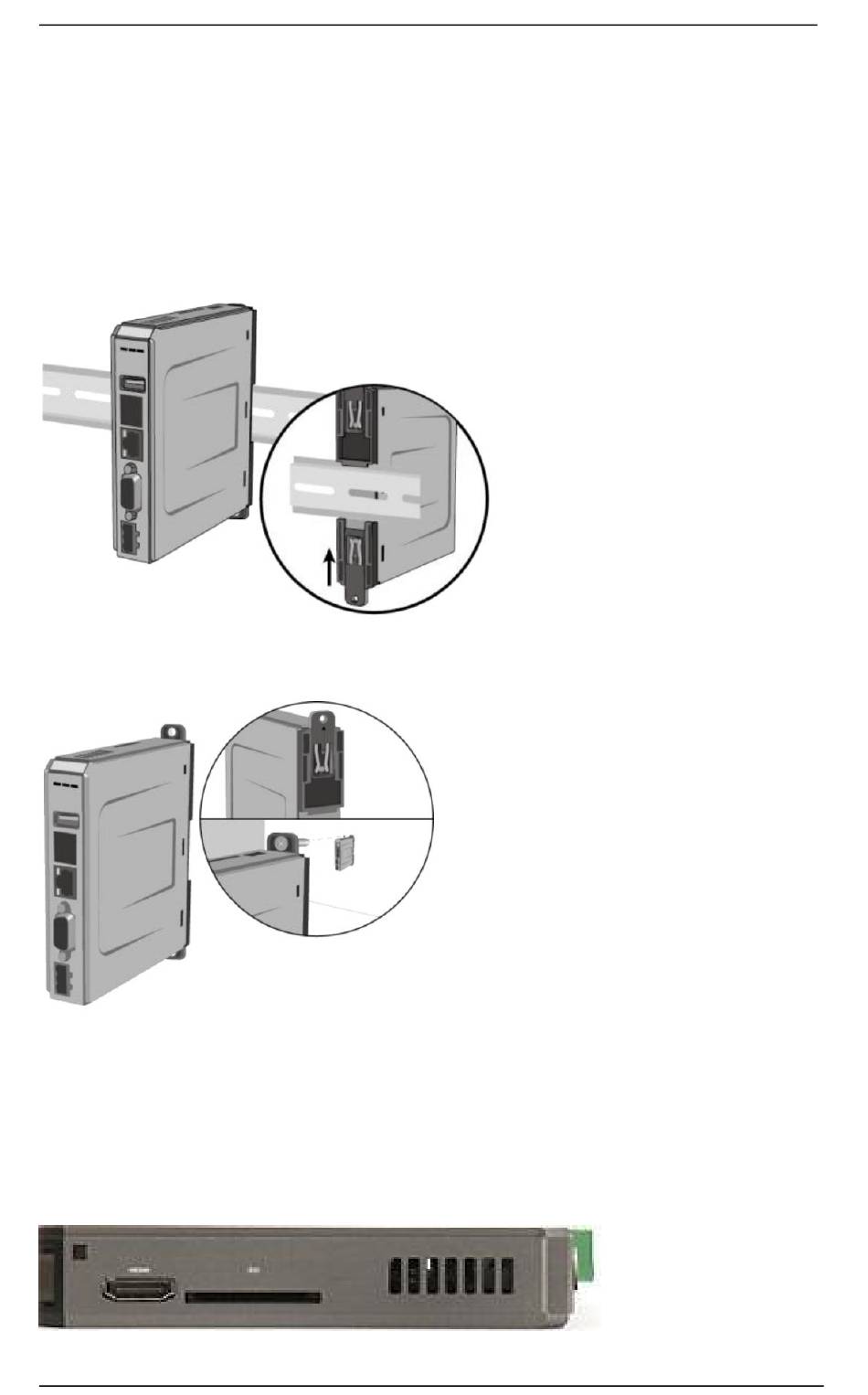

Figure 2a: Installing the HMI to DIN rail
Figure 2b: Installing the HMI directly to the panel
Push both tabs down, and place the unit
over the DIN rail. Then slide the bottom
tab up.
Push the top tab up and the bottom tab
down to expose the mounting holes.
www.maplesystems.com
9
