WWW.SMITTYBILT.COM
Please read instructions thoroughly before installing this product. Major modifications are required
to install this product and it's recommended to be done by an experienced mechanic/installer.
Parts Included
Drivers Side Flare
Passenger Side Flare
6mm Allen Button Head Bolt
6mm Lock Nut
6mm Flat Washer
3/8" x 1" Hex Head Bolt (YJ)
3/8" Lock Nut (YJ)
3/8" Flat Washer (YJ)
8mm1.25x30mm Hex Head Bolt (TJ) 8
8mm Flat Washer (TJ)
8mm Lock Nut (TJ)
Step 1: Disconnect turn signals and secure wiring back out of the way. Remove the current plastic flares
from your vehicle.

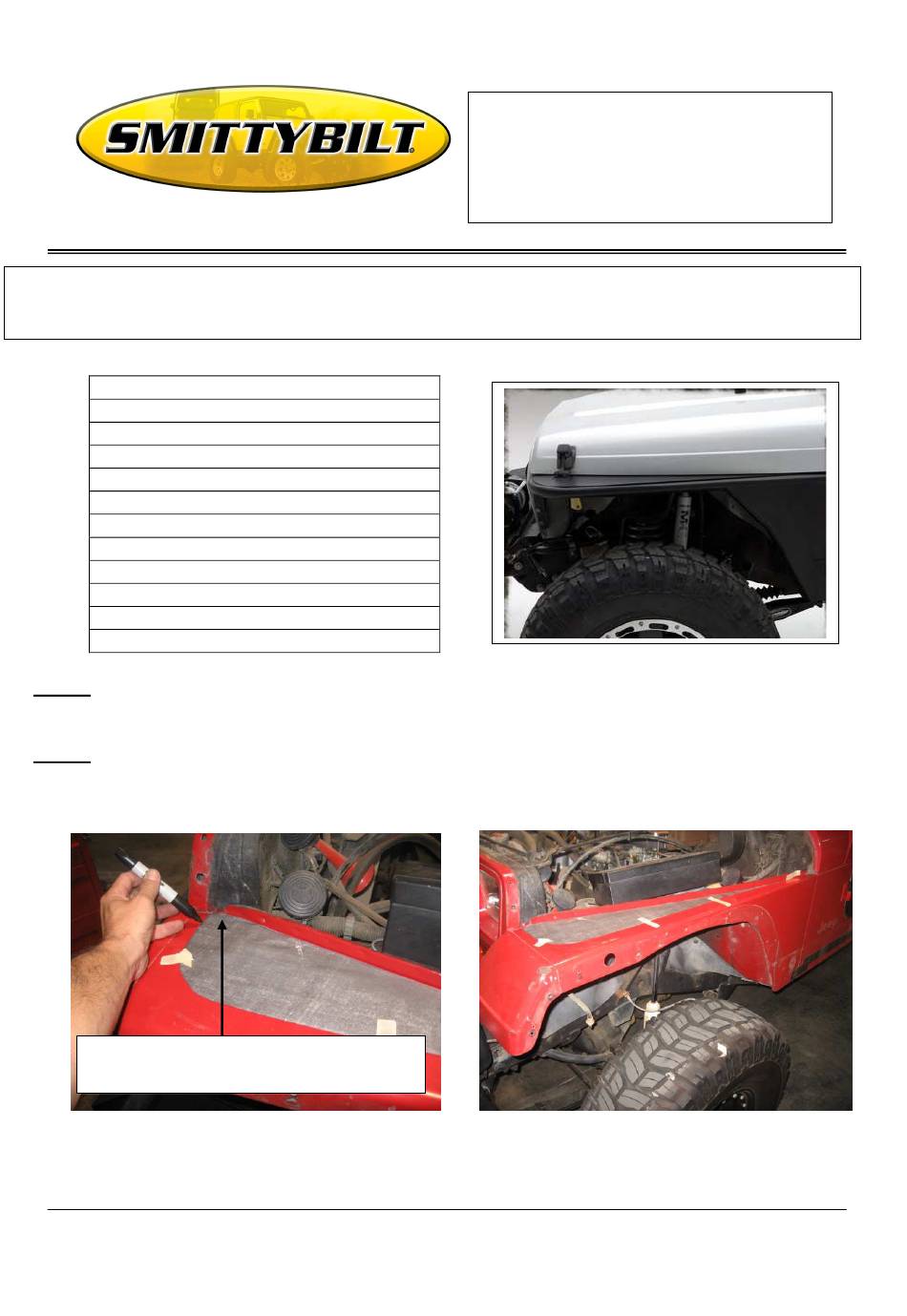

Step 2: Trim the included template out, connect together and set on top of the fender. Place the formed front
portion to match the form of the fender where it meets the grille and lay down towards the back of
the fender where it meets the body tub/firewall. Use a marker to outline the template on the fender. (
Line the front "formed" part of the template with the
matching "form" where the fender meets the grill.
For Technical Support/Warranty Information please call 310-762-9944
Qty
10
10
24
(Fig A)
Smittybilt, 400 West Artesia Blvd, Compton, CA 90220
Installation Instructions

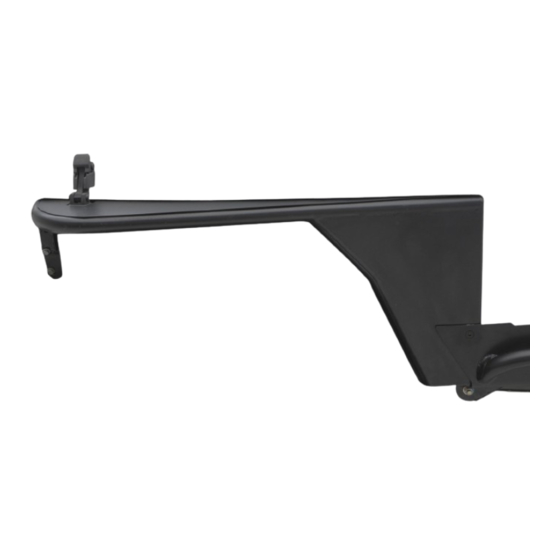

XRC Tube Fenders
76872, 76873(97-06 Wranglers)
76862, 76863 (87-95 Wranglers)
1
1
6
6
6
8
8
(Fig B)
Advertisement
Related Manuals for Smittybilt 76872
Summary of Contents for Smittybilt 76872
- Page 1 Use a marker to outline the template on the fender. ( Line the front “formed” part of the template with the matching “form” where the fender meets the grill. (Fig A) (Fig B) For Technical Support/Warranty Information please call 310-762-9944 Smittybilt, 400 West Artesia Blvd, Compton, CA 90220...
-
Page 2: Installation Instructions
Measure a straight line up on the inner back portion of your fender. Measure and mark with a marker; in 1” for 97-06 and 1 ½” for CJ’s and YJ’s from the outside edge of the factory fender. Carefully cut this line up For Technical Support/Warranty Information please call 310-762-9944 Smittybilt, 400 West Artesia Blvd, Compton, CA 90220... - Page 3 Check to make sure grille and loosely attach using the factory inner fender isn’t bolts previously removed. rubbing new fender. (Fig J) (Fig K) (Fig L) For Technical Support/Warranty Information please call 310-762-9944 Smittybilt, 400 West Artesia Blvd, Compton, CA 90220...
-
Page 4: Care And Maintenance
LIMITED WARRANTY Smittybilt (The Company) warrants to the original purchaser of this product that should the product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 5 years from the original date of purchase, such defect(s) will be repaired or replaced (At the Company’s option) without charge for parts or labor. - Page 5 Installation Instructions XRC Tube Fenders 76872, 76873(97-06 Wranglers) 76862, 76863 (87-95 Wranglers) WWW.SMITTYBILT.COM For Technical Support/Warranty Information please call 310-762-9944 Smittybilt, 400 West Artesia Blvd, Compton, CA 90220...
- Page 6 Installation Instructions XRC Tube Fenders 76872, 76873(97-06 Wranglers) 76862, 76863 (87-95 Wranglers) WWW.SMITTYBILT.COM For Technical Support/Warranty Information please call 310-762-9944 Smittybilt, 400 West Artesia Blvd, Compton, CA 90220...
- Page 7 Cut along dotted line and tape to the next section of template.
