WWW.SMITTYBILT.COM

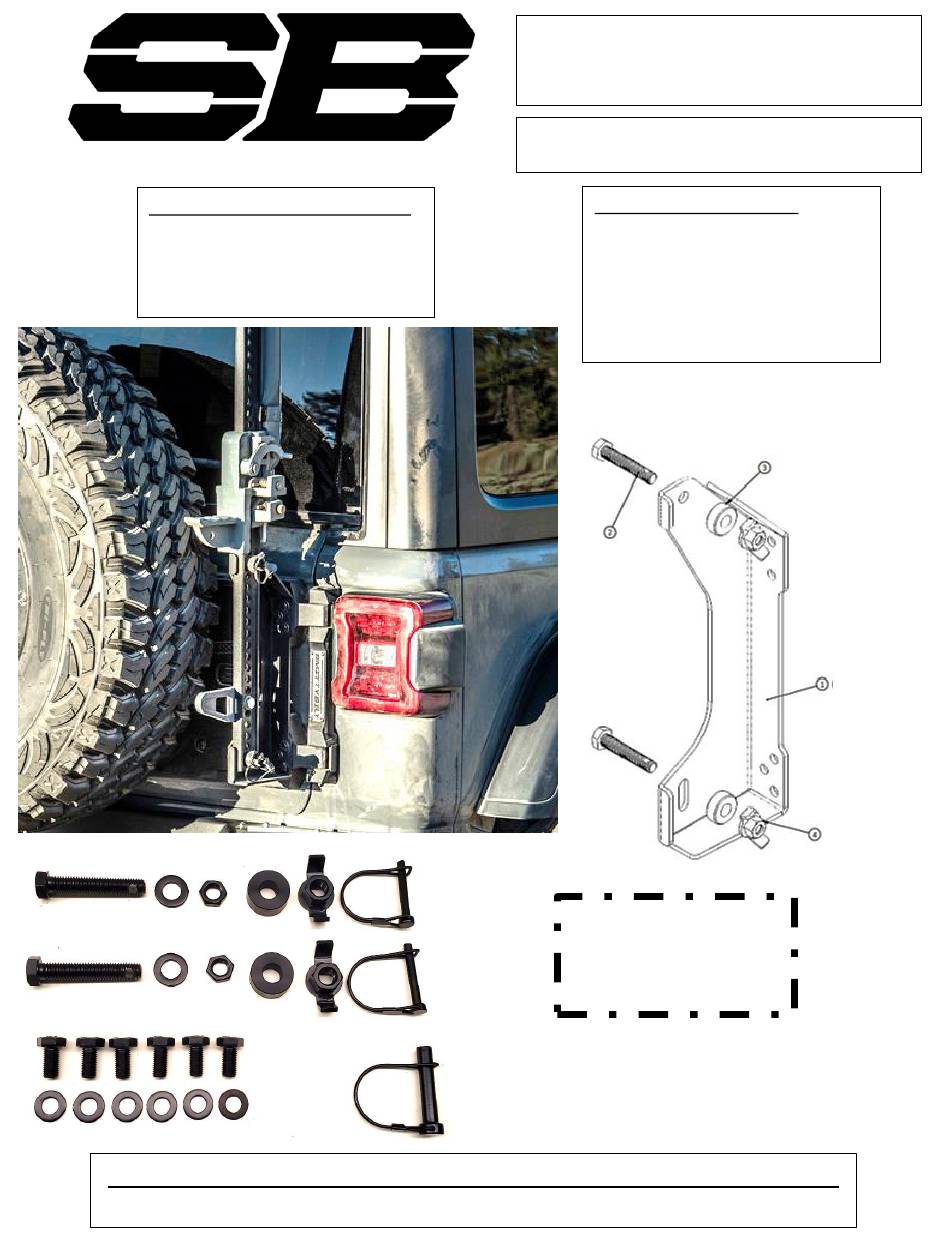

Parts list:
M10-1.25x20mm hex bolt
M10 Flat washer
M12 Flat washer
M12 jam nut
For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 W. Artesia Blvd Compton, CA 90220
Jack Mount for JL HD pivot
Note: Actual pictures may vary from specific
vehicle/ product.
Qty
6
6
2
2
Part # 7744
Parts list:
Jack mount
M12 hex bolt w/hole 2
Jack mount spacer
M12 wing nut
6mm locking pin
10mm locking pin
Jack base must be
removed before
mounting jack.
Qty
1
2
2
2
1
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Smittybilt 7744
Summary of Contents for Smittybilt 7744
- Page 1 Jack mount spacer M12 Flat washer M12 wing nut M12 jam nut 6mm locking pin 10mm locking pin Jack base must be removed before mounting jack. For Technical Support/Warranty Information please call 310-762-9944 Smittybilt, 400 W. Artesia Blvd Compton, CA 90220...
- Page 2 Jack Mount for JL HD pivot Part # 7744 WWW.SMITTYBILT.COM Step 1. Carefully remove all parts from the box. Step 2. Clean the threaded holes in the HD pivot with rubbing alcohol to remove any impurities. Fig 1. Fig 1 Step 3.
- Page 3 Jack Mount for JL HD pivot Part # 7744 WWW.SMITTYBILT.COM Step 4. Attach the M12 bolts to the jack mount with a flat washer and jam nut on the inside. Tighten the top one fully (Fig 3) but leave the bottom one loose enough to allow for adjustment in the slotted hole.
- Page 4 Jack Mount for JL HD pivot Part # 7744 WWW.SMITTYBILT.COM Step 7. Adjust height of jack so it does not interfere with tail light when tail gate is open completely. Fig 6. Fig 6 Fig 7 Step 8. Secure jack body by placing 12mm locking pin in the hole closest to the jack body.
- Page 5 Jack Mount for JL HD pivot Part # 7744 WWW.SMITTYBILT.COM...
- Page 6 Jack Mount for JL HD pivot Part # 7744 WWW.SMITTYBILT.COM...
