Smittybilt 5660224 Installation Manual

G.e.a.r. front seat covers for jeep wrangler

Installation Time: <1 Hour

 Box Cutter/Knife (for opening the packaging)

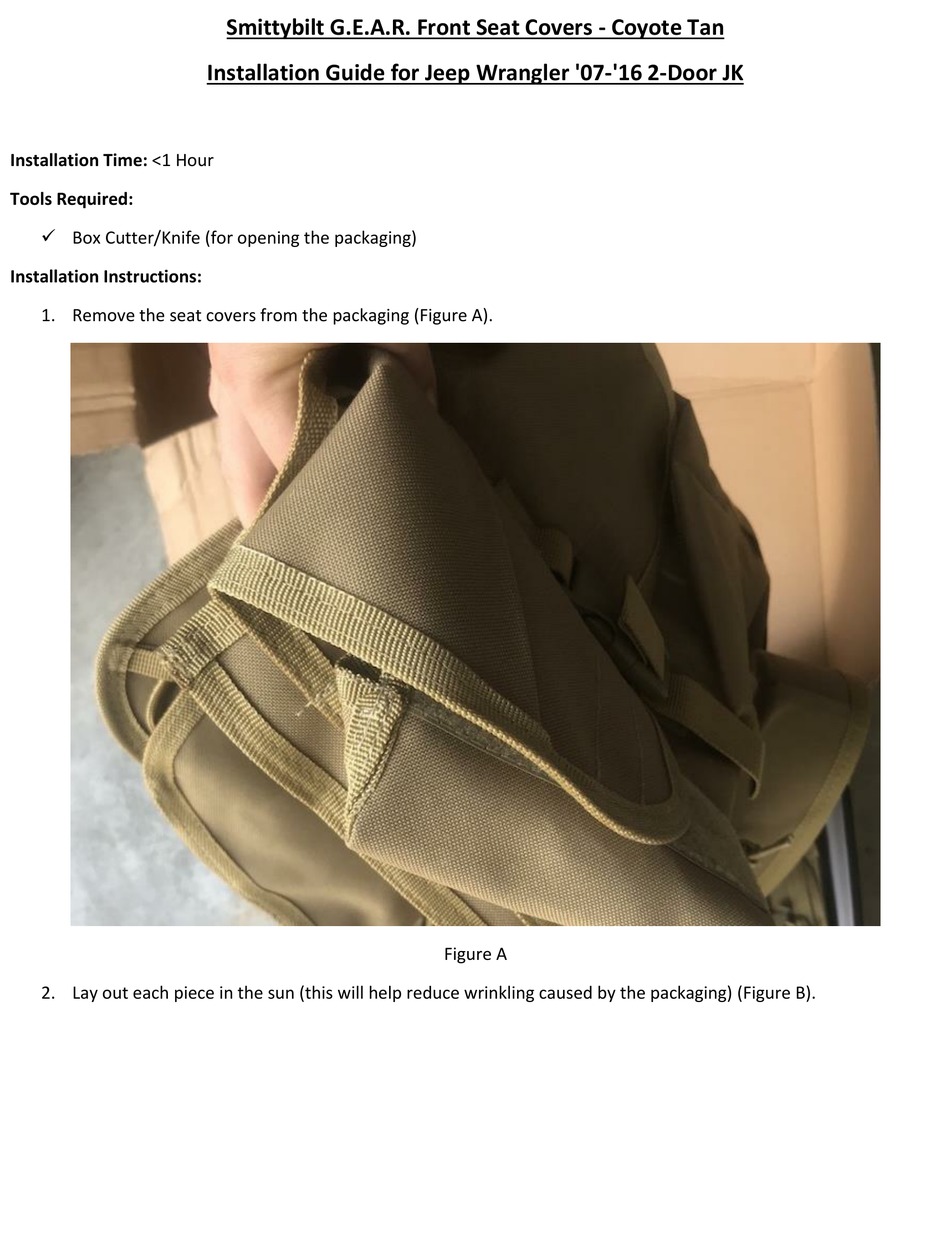

1. Remove the seat covers from the packaging (Figure A).

2. Lay out each piece in the sun (this will help reduce wrinkling caused by the packaging) (Figure B).

Smittybilt G.E.A.R. Front Seat Covers - Coyote Tan

Installation Guide for Jeep Wrangler '07-'16 2-Door JK

Figure A

Table of Contents

Need help?

Do you have a question about the 5660224 and is the answer not in the manual?

Page 1 Smittybilt G.E.A.R. Front Seat Covers - Coyote Tan Installation Guide for Jeep Wrangler '07-'16 2-Door JK Installation Time: <1 Hour Tools Required:  Box Cutter/Knife (for opening the packaging) Installation Instructions: 1. Remove the seat covers from the packaging (Figure A).
Page 2 Figure B 3. Remove the headrest (Figure C). Figure C 4. Position the seat cover over top of the seat back with the Molle threading facing the rear of the vehicle (Figure...
Page 3 Figure D 5. Slide the seat cover down the seat back, pulling on both ends (Figure E). Figure E 6. Replace the headrest (Figure F).
Page 4 Figure F 7. Pull each set of strings at the bottom tight and move the spring-loaded catch into place (Figure G). Figure G 8. Begin installing the Molle system pockets by weaving the rear fabric straps through the Molle threading on the backside of the seat cover (Figure H).
Page 5 Figure H 9. Snap the fabric straps back into place (Figure I). Figure I 10. Repeat Steps 3-9 on the other front seat.
Page 6 Before After Installation Instructions Written by ExtremeTerrain Customer J. Sandlin 06/19/2018...
